3. When properly aligned, each edge of the plastic clip should click into place. Hold the clip
handle (see Figure 19, A) and very slowly lower the handle until the clip secures the fan
heatsink to the processor socket.
OM11062
A
B

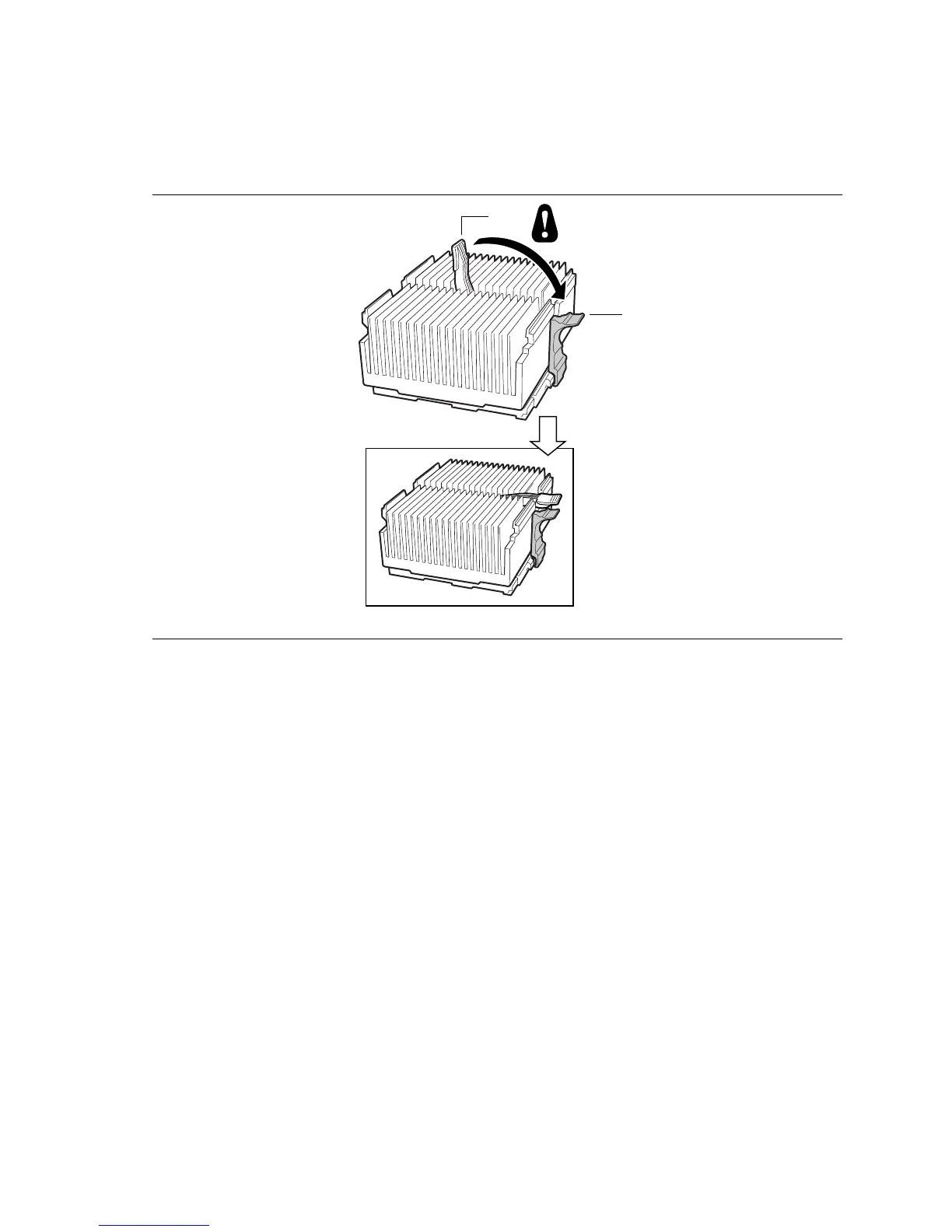

Figure 19. Lowering the Plastic Clip Handle
