Technical Reference
85
Front Panel Connectors

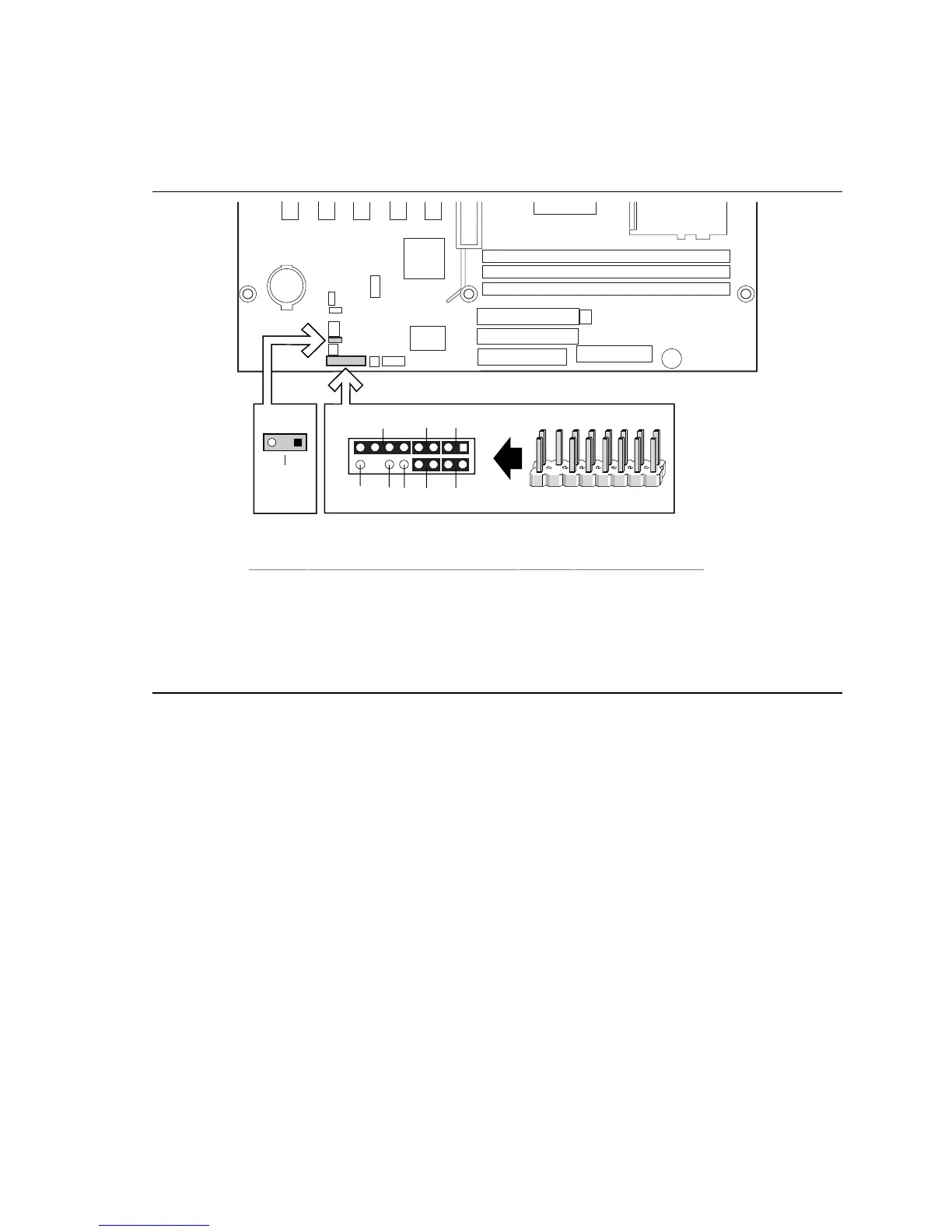

Figure 33 shows the location of the front panel connectors.
OM11618
15 1
216
J9H3
2
1
16
15
13
J9H2
A
B
CD
EF
GH
I
Item Description Item Description
A Alternate front panel power
LED connector
F On/Off switch
B Reserved G No connect
C Reset switch H Ground
D Hard drive activity LED I +5 V
E Power LED
Figure 33. Front Panel Connectors (the D815EEA2 Board Is Shown)
