Intel Desktop Boards D815EEA2, D815EPEA2, D815EFV, and D815EPFV Product Guide
48
Setting the BIOS Configuration Jumper
CAUTION
Always turn off the power and unplug the power cord from the computer before changing the
jumper. Moving the jumper with the power on may result in unreliable computer operation.
OM11628
13
J9G2

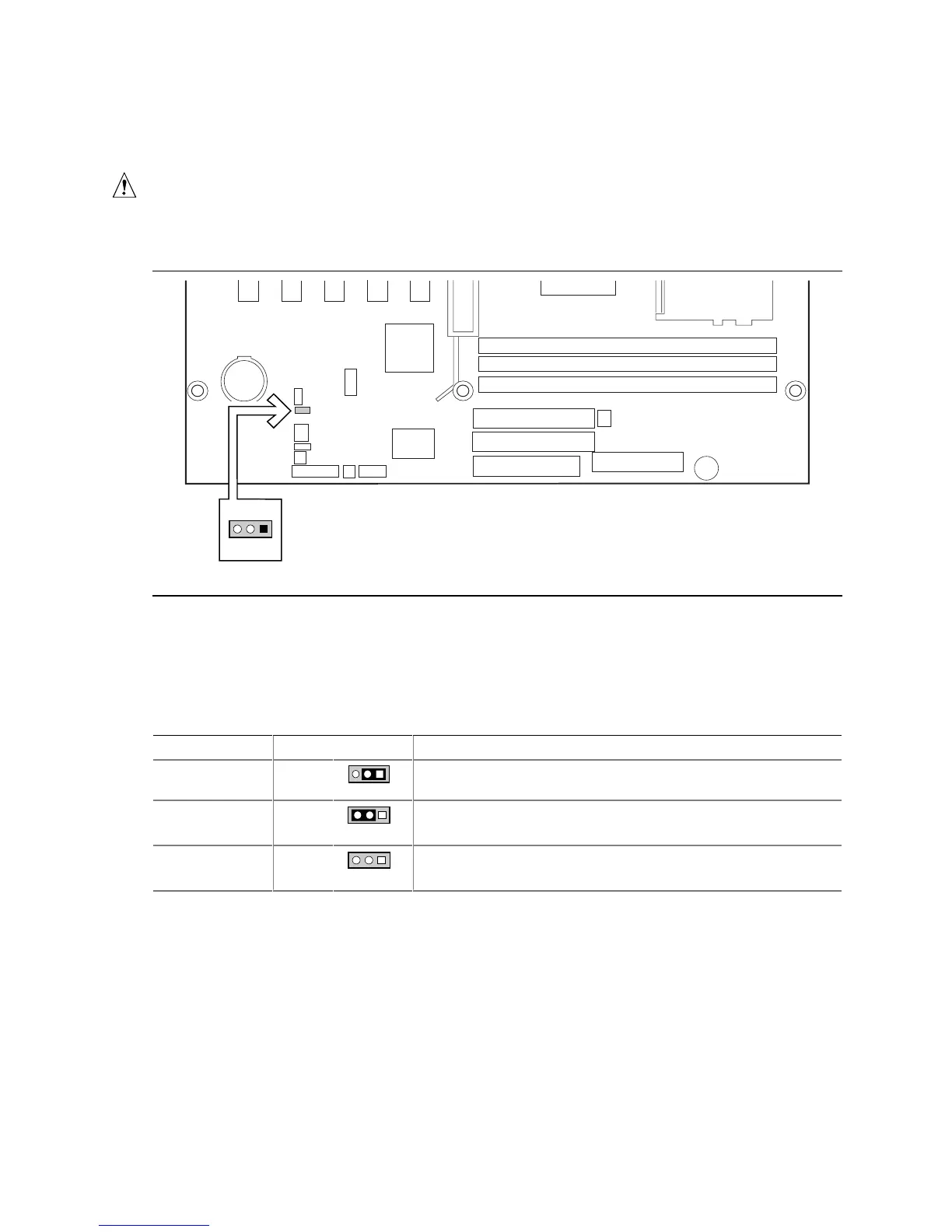

Figure 26. BIOS Configuration Jumper Block Location (the D815EEA2 Board Is Shown)
This three-pin jumper block, shown in Figure 26, enables all desktop board configurations to be
done in BIOS Setup. Table 7 shows the jumper settings for the Setup program modes.
Table 7. Jumper Settings for the BIOS Setup Program Modes
Function/Mode Jumper Setting Configuration
Normal 1-2
13
The BIOS uses current configuration information and passwords
for booting.
Configure 2-3
13
After the POST runs, Setup runs automatically. The maintenance
menu is displayed.
Recovery None
13
The BIOS attempts to recover the BIOS configuration. A recovery
diskette is required.
