10 Intel Desktop Boards D845GRG and D845GBV
Quick Reference
6 Connecting the Fans

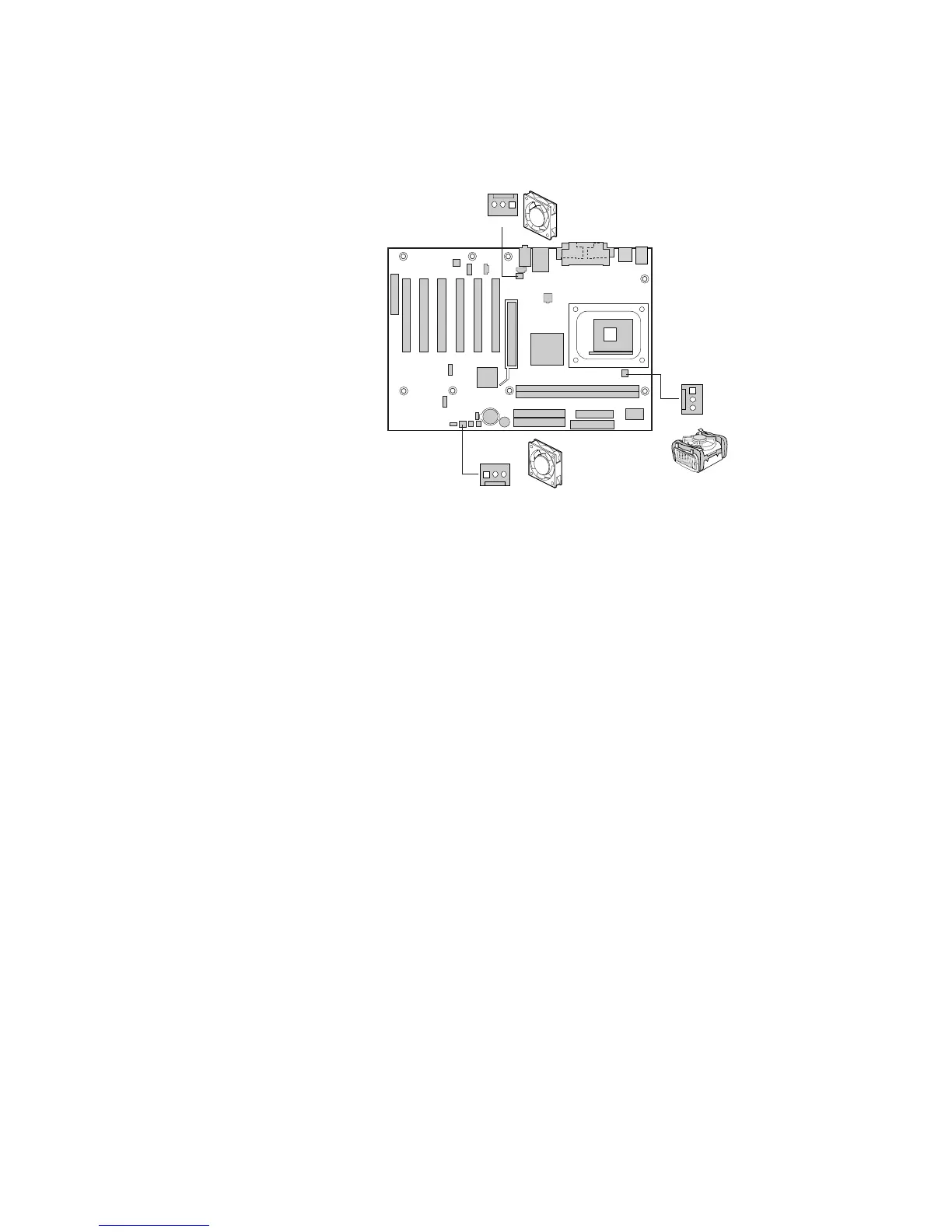

The following figure shows the location of the fan connectors. Connect the
processor’s fan heatsink cable to the processor fan connector on the board.
Connect the chassis fan cables to the board connectors as shown in the following
figure.
OM13699
Processor
Fan
1
3
Chassis Front
Fan
1
3
J2F1
J9H3
Chassis Rear
Fan
1
3
J6B2
7 Attaching the IDE Drives
The Intel
®
boxed desktop board package includes two IDE cables. Either cable
can connect two drives to the desktop board. The cables support the Ultra
DMA-33 (40-contact, 40-conductor) or ATA-66/100 (40-contact, 80-conductor)
transfer protocols and are backward compatible with drives using slower IDE
transfer protocols.
The cable will work correctly only when oriented as shown in the following
figure. For correct cable function:
1. Observe the precautions in “Before You Begin” on page 3.
2. Attach the cable end with the single connector (A) to the board.
3. Attach the cable end with the two closely spaced connectors (B) to the
drives.
To Next Page
