8 Intel Desktop Boards D845GRG and D845GBV
Quick Reference
OM12078

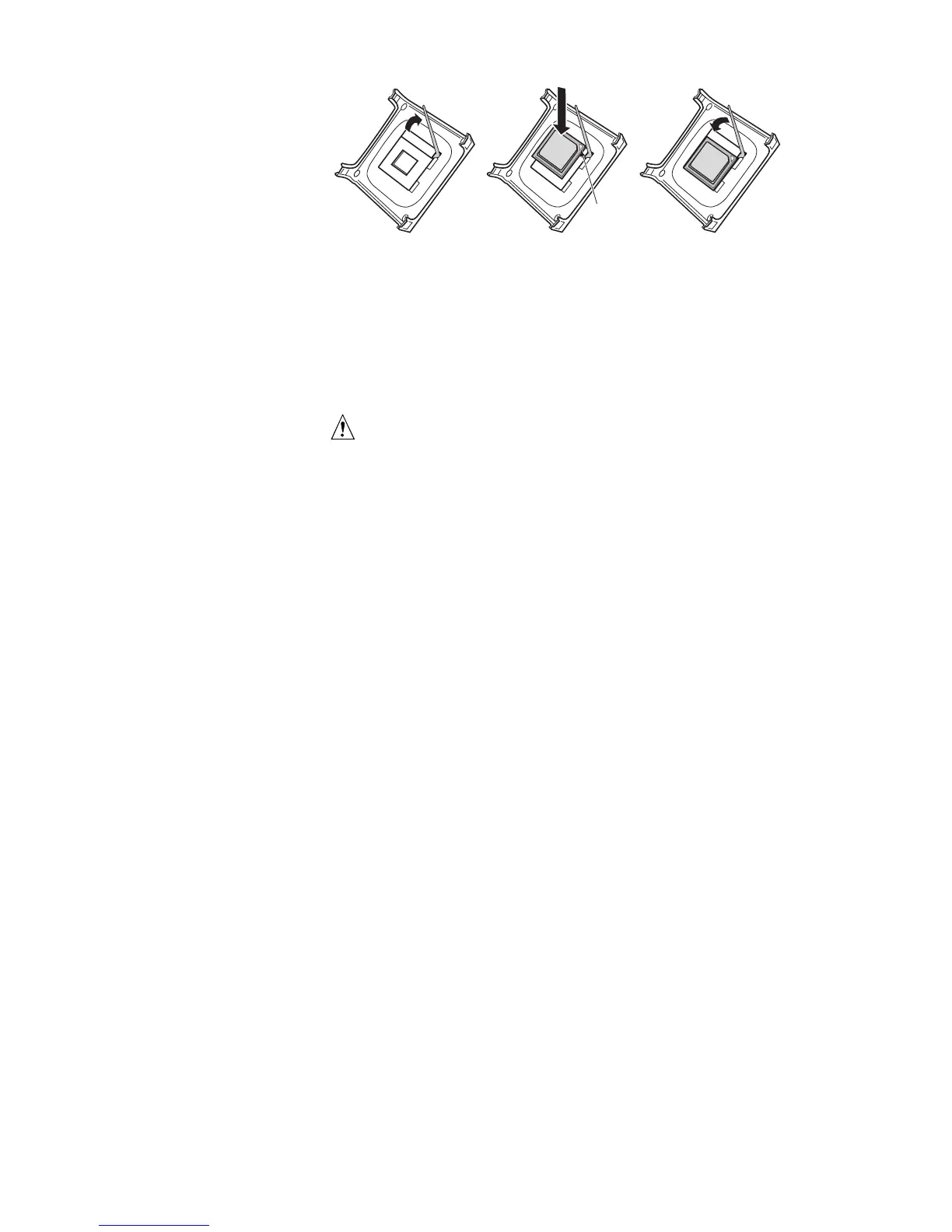

mPGA478B
mPGA478B
mPGA478B
A
5. The desktop boards have an integrated processor fan heat sink retention
mechanism (RM). For instructions on how to install the processor fan heat
sink, refer to the boxed processor manual or the Intel World Wide Web
site at:
http://support.intel.com/support/processors/pentium4/intnotes478.htm
4 Installing the Memory Modules
CAUTION
Install memory in the DIMM sockets prior to installing the AGP video card
to avoid interference with the memory retention mechanism.
The Desktop Boards D845GRG and D845GBV’s two DIMM sockets are
arranged as Banks 0 and 1, as shown in the following figure. If installing a
single DIMM, install it in Bank 0.
To install DIMMs, follow these steps:
1. Remove the AGP video card if it interferes with the DIMM clips from
being easily opened and closed.
2. Align the small notch in the bottom edge of the DIMM with the key in the
socket.
3. Insert the bottom edge of the DIMM into the socket.
4. When the DIMM is inserted, push down on the top edge of the DIMM until
the retaining slips snap into place. Make sure the clips are firmly in place.
