Intel D845GRG

Intel Desktop Boards D845GRG and D845GBV 9
Quick Reference
OM13600
0
1

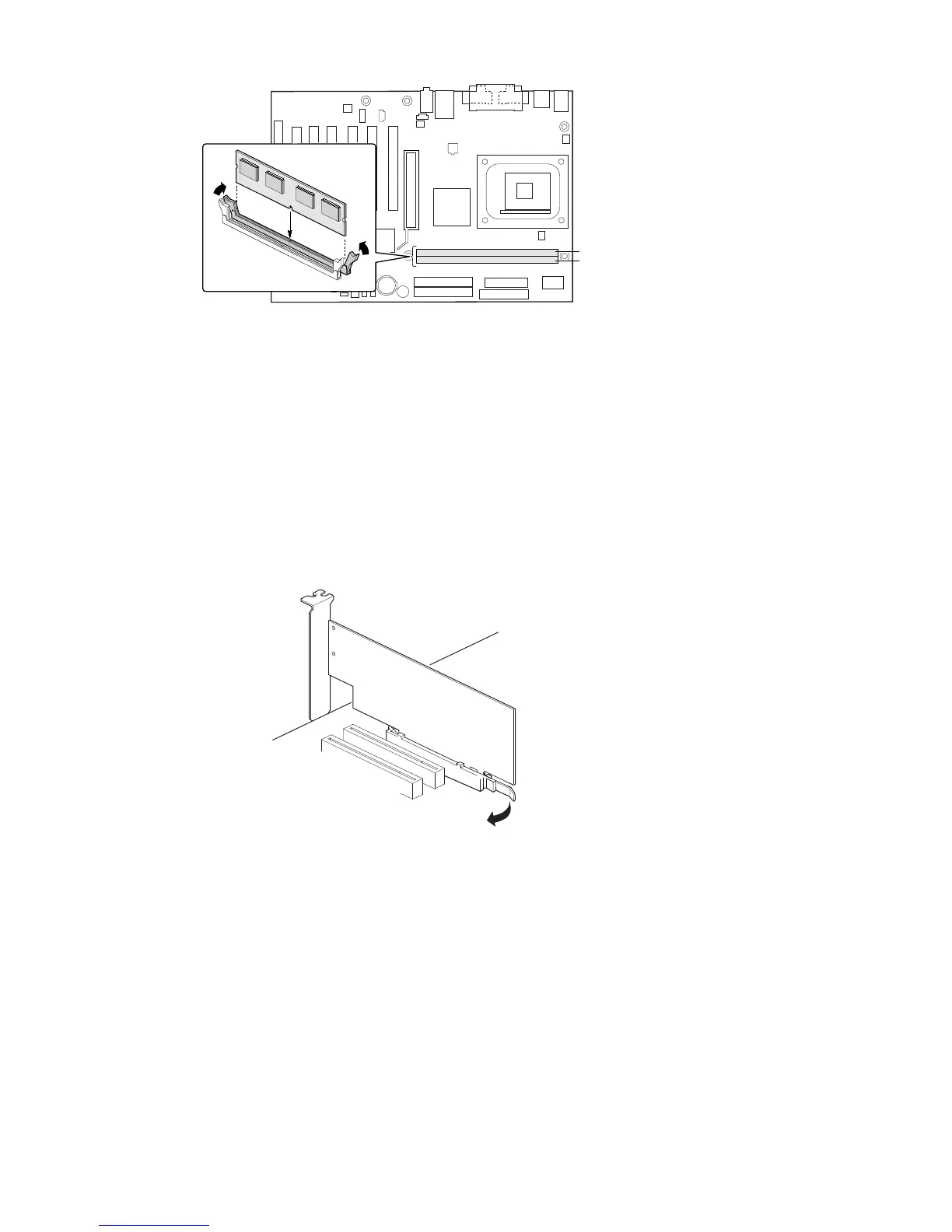

5 Installing an AGP Card
✏ NOTE
The D845GRG and D845GBV boards are only compatible with 1.5 V AGP
cards.
The Desktop Boards D845GRG and D845GBV have an integrated AGP card
retention mechanism (RM). Follow these instructions to install an AGP card:
1. Place the AGP card in the AGP connector.
2. Press down on the card until it is completely seated in the connector and the
card retention notch snaps into place below the RM.
3. Secure the card’s metal bracket to the chassis back panel with a screw.
To remove the AGP card, push back on the RM lever (A) until the retention pin
completely clears the notch in the card.
OM13851
A
