Intel Desktop Board D850GB/D850GBAL 15
Quick Reference

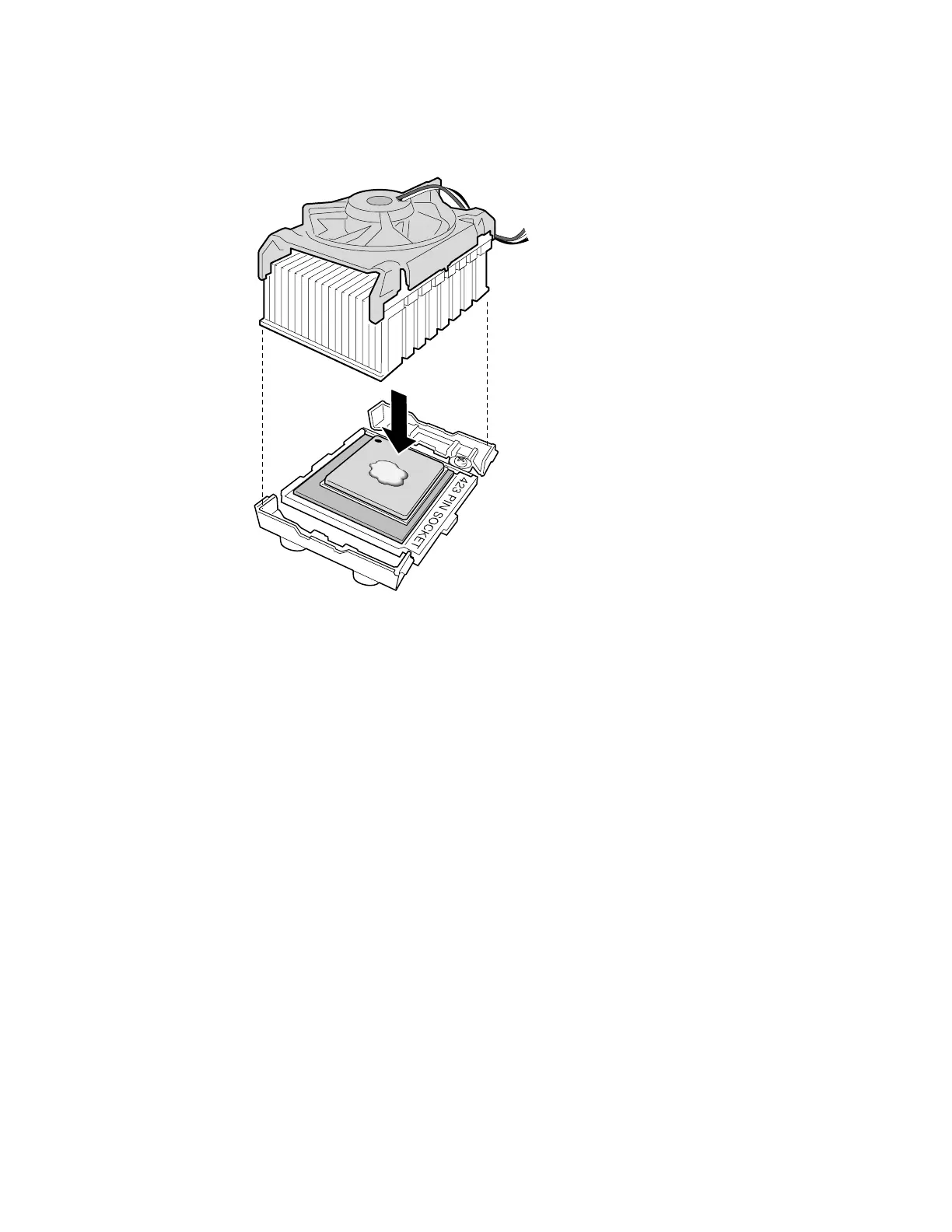

7 Installing the Processor Fan Heatsink
Place the fan heatsink on the processor so that the fan cable is facing the right
edge of the board.
OM10634
