Intel D850GB Quick Reference

16 Intel Desktop Board D50GB/D850GBAL
Quick Reference

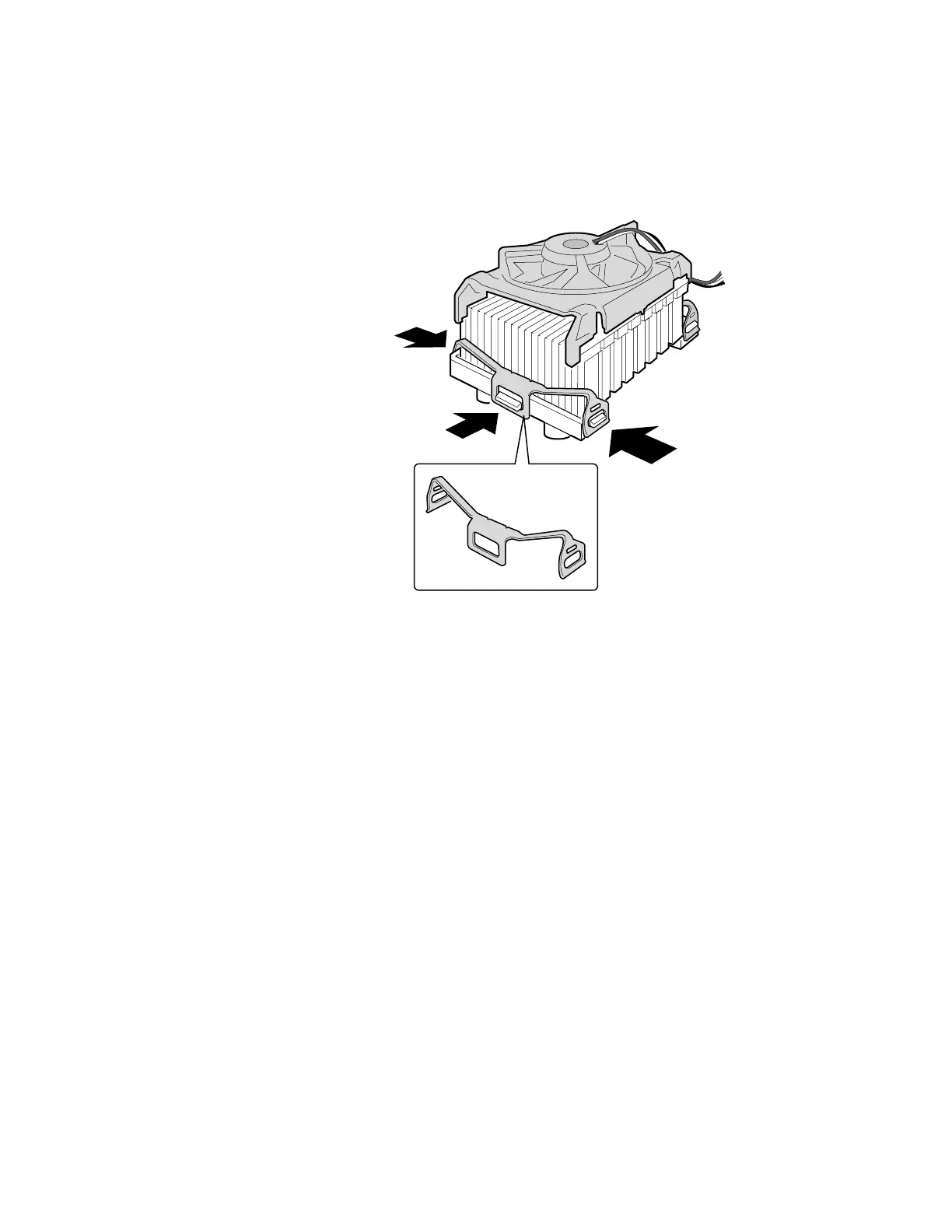

8 Installing the Fan Heatsink Clips
Install the clip by attaching the opening at both ends of the clip (B) to the tabs
on the RM. Then fasten the side clip (A) to the RM until you hear a click.
Repeat this procedure on the opposite side of the fan heatsink. See step 12 on
page 18 to connect the processor fan cable header to the board processor fan
connector.
OM10643
A
B
B
