Intel D850GB Quick Reference

Intel Desktop Board D850GB/D850GBAL 21
Quick Reference

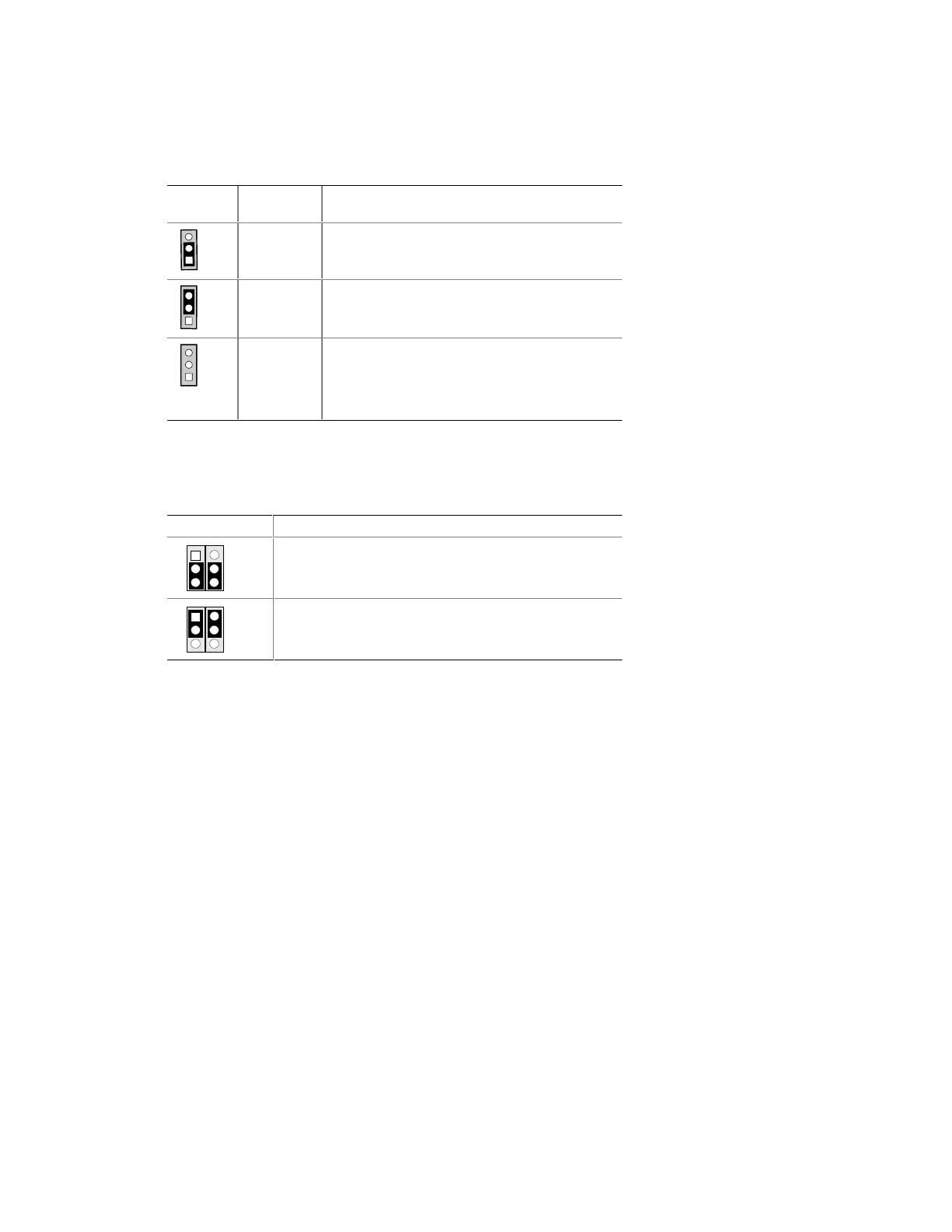

The BIOS configuration jumper determines the operating mode of the
BIOS Setup Program and enables BIOS recovery in the event of a failed
BIOS update. The following table describes the jumper settings for the BIOS
Setup configuration jumper.
BIOS Setup Configuration Jumper (J8C2) Settings
Jumper
Position Mode Description
3
1
Normal
(default)
The BIOS uses the current configuration and
passwords for booting.
3
1
Configure After the Power-On Self-Test (POST) runs, the
BIOS displays the Maintenance Menu. Use this
menu to clear passwords.
3
1
Recovery The BIOS recovers data from a recovery diskette
in the event of a failed BIOS update. To update or
recover the BIOS, see the instructions in the Intel
Desktop Board D850GB/D850GBAL Product Guide
on the CD-ROM.
The USB port 2 routing jumper routes the signals of USB port 2. The table
below describes the jumper settings for the front panel USB connector and CNR
connector (D850GB only).
USB Port 2 Routing Jumper (J8D1) Settings
Jumper Setting Configuration
1
3
4
6
USB port 2 signals are routed to the front panel USB
connector.
1
3
4
6
USB port 2 signals are routed to the CNR connector.
