18 Intel Desktop Board D50GB/D850GBAL
Quick Reference
10 Connecting the Fans

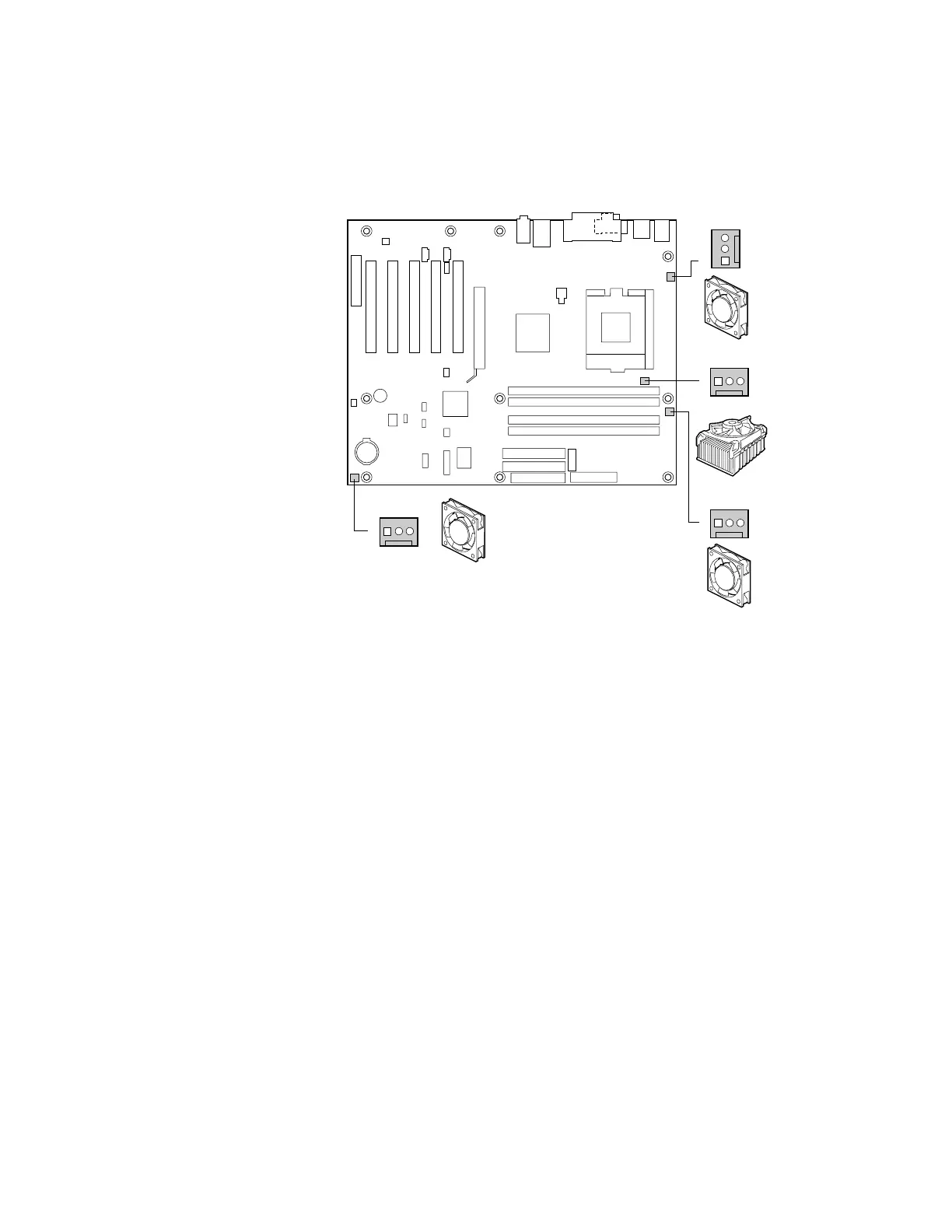

The following figure shows the location of the fan connectors. If you are
installing a processor with an active fan heatsink, connect the processor’s fan
cable to the board connector labeled J6L1. Connect the chassis fan cables to the
board connectors labeled J3M1, J7M2, and J10A2.
OM111533
Fan 4 J3M1
1
3
Fan 3 J6L1
13
Fan 2 J7M2
13
Fan 1 J10A2
13
11 Installing an AGP Card
✏ NOTE
The D850GB/D850GBAL board is only compatible with 1.5 V AGP cards.
Follow these instructions to install an AGP card if it has a retention notch.
1 Place the AGP card in the AGP connector.
2 Press down on the card until it is completely seated in the connector and
the card retention notch snaps into place below the RM (D850GB only).
3 Secure the card’s metal bracket to the chassis back panel with a screw.
