Desktop Board Features
17
RJ-45 LAN Connector LEDs
Two LEDs are built into the RJ-45 LAN connector located on the back panel (see
Figure 2). These LEDs indicate the status of the LAN.

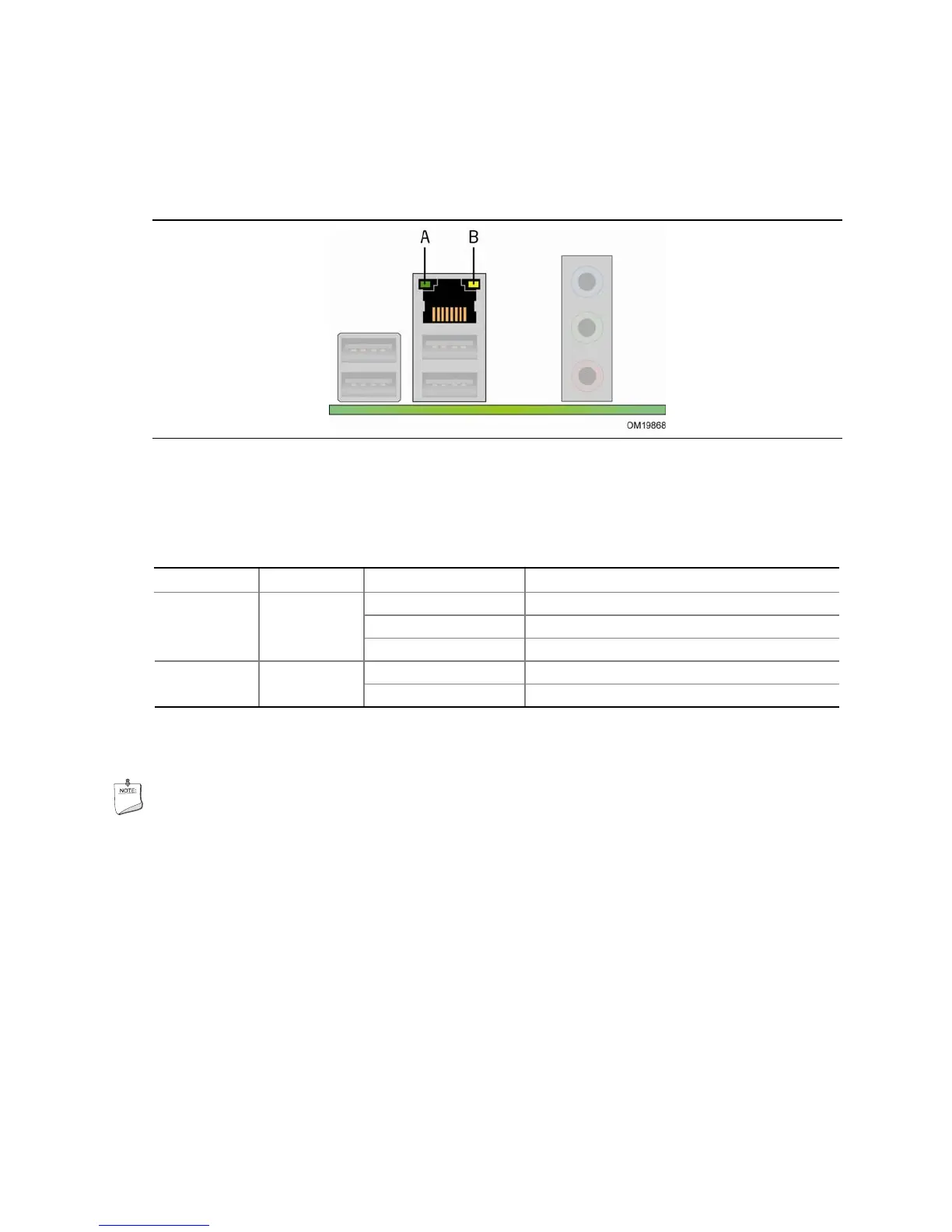

Figure 2. LAN Connector LEDs
Table 4 describes the LED states when the board is powered up and the LAN
subsystem is operating.
Table 4. LAN Connector LED States
LED LED Color LED State Indicates
Off LAN link is not established.
On LAN link is established.
A
Green
Blinking LAN activity is occurring.
Off 10 Mb/s data rate B
Yellow
On 100 Mb/s data rate
Hi-Speed USB 2.0 Support
NOTE
Computer systems that have an unshielded cable attached to a USB port might not
meet FCC Class B requirements, even if no device or a low-speed USB device is
attached to the cable. Use a shielded cable that meets the requirements for a
full-speed USB device.
The desktop board supports up to eight USB 2.0 ports via ICH7 (four ports routed to
the back panel and four ports routed to two internal USB 2.0 headers). USB 2.0 ports
are backward compatible with USB 1.1 devices. USB 1.1 devices will function normally
at USB 1.1 speeds.
USB 2.0 support requires both an operating system and drivers that fully support
USB 2.0 transfer rates. Disabling Hi-Speed USB in the BIOS reverts all USB 2.0 ports
to USB 1.1 operation. This may be required to accommodate operating systems that
do not support USB 2.0.
