Intel D945GCCR User Manual

Installing and Replacing Desktop Board Components
43
Connecting to Internal Headers
Before connecting cables to the internal headers, observe the precautions in "Before
You Begin" on page

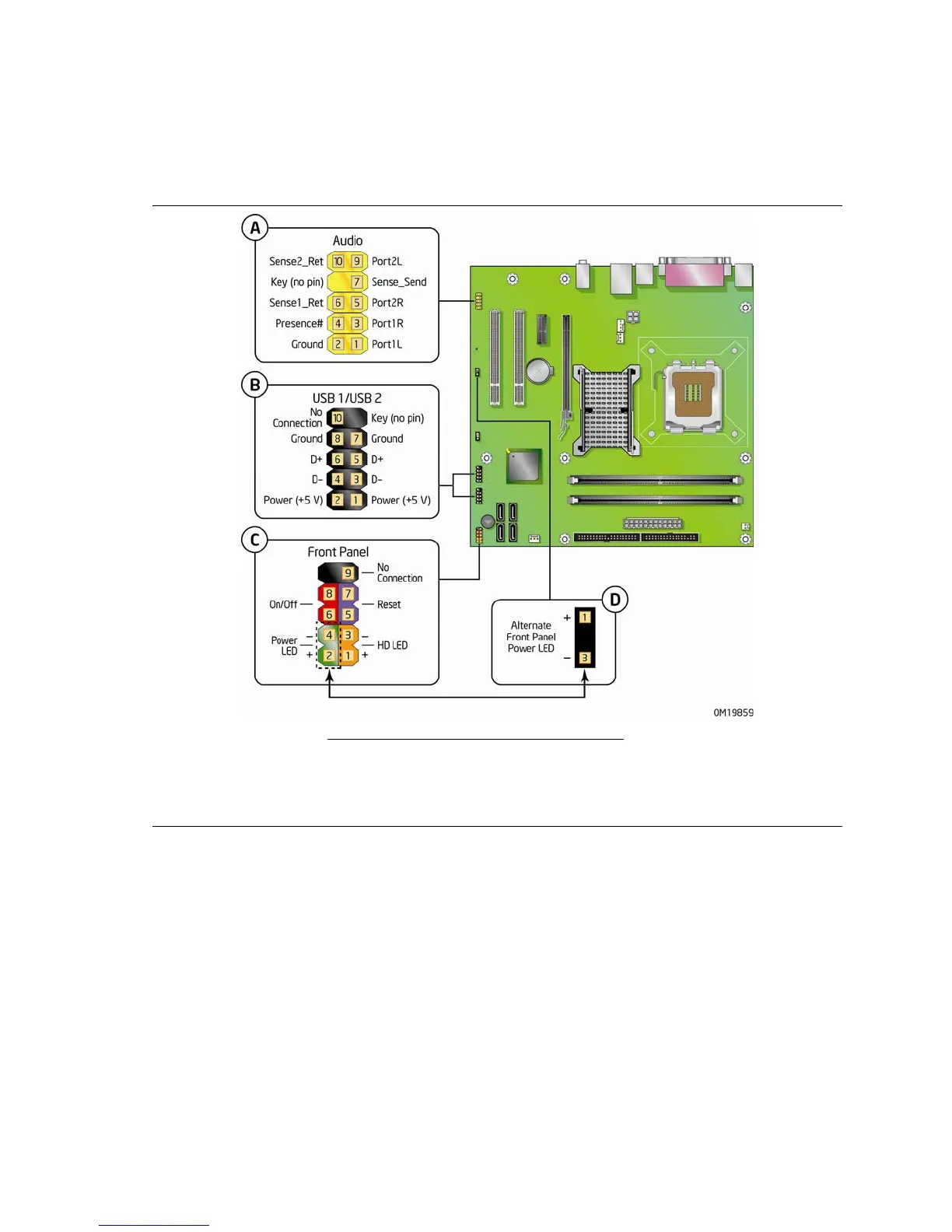

25. Figure 20 shows the location of the internal headers.
Item Description
A Front panel audio
B USB 2.0
C Front panel
D Alternate front panel power LED
Figure 20. Internal Headers

Intel D945GCCR Specifications

General

Form Factor	Micro ATX
Socket Type	LGA 775
Chipset	Intel 945GC
Memory Type	DDR2
Memory Slots	2
Maximum Memory	4 GB
Onboard Video	Intel GMA 950
Audio Codec	Realtek ALC888
LAN Speed	10/100/1000 Mbps
Video Outputs	VGA
Supported CPU	Intel Core 2 Duo, Pentium D, Pentium 4
Memory Speed	533 MHz
Expansion Slots	2 x PCI
Storage Interface	SATA 3 Gb/s
USB Ports	8 x USB 2.0
Audio	Realtek ALC888
Ethernet	10/100 Mbps
