Intel Desktop Board D945GCCR Product Guide
28
Installing and Removing the Desktop Board
CAUTION
Only qualified technical personnel should do this procedure. Disconnect the computer
from its power source before performing the procedures described here. Failure to
disconnect the power before you open the computer can result in personal injury or
equipment damage.

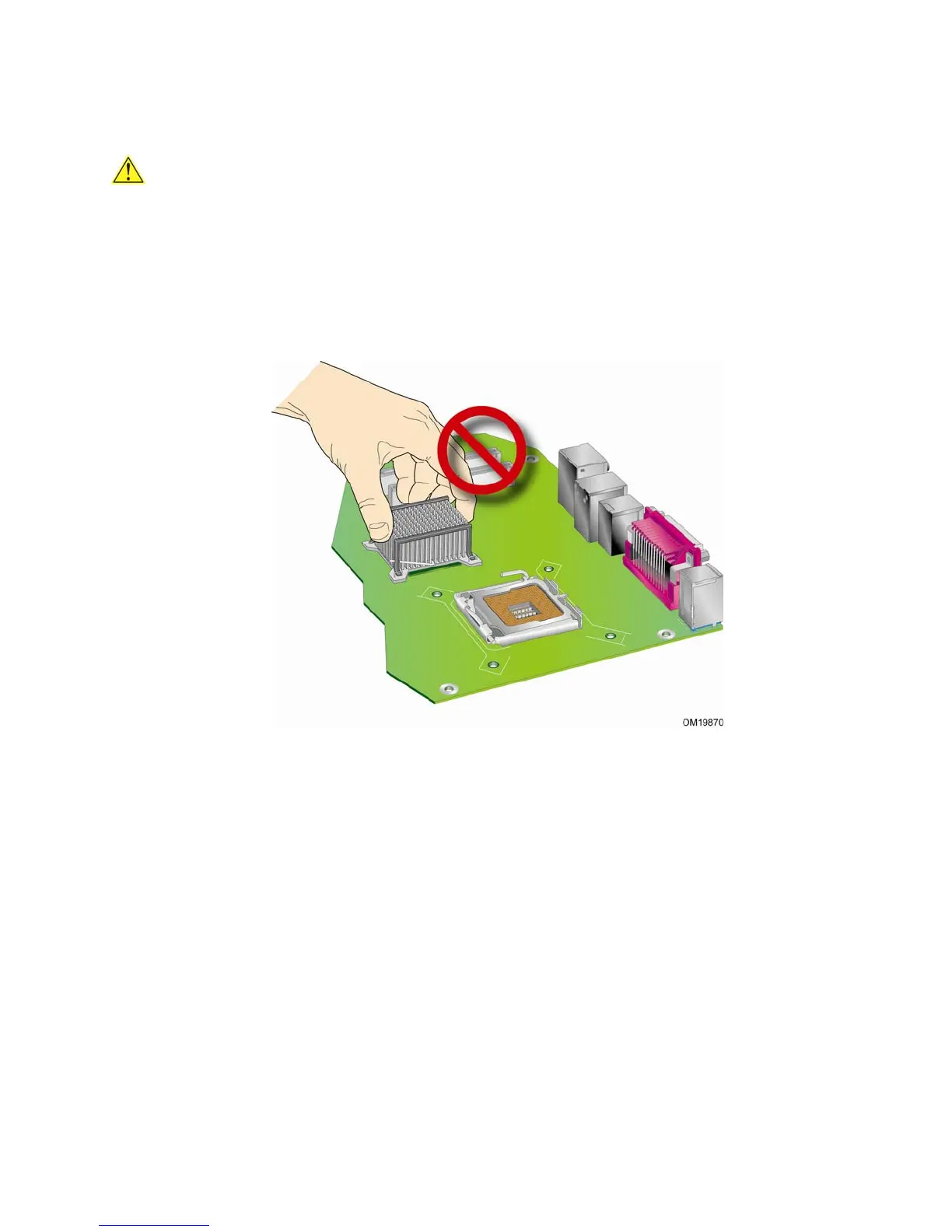

Do not lift or handle the desktop board by the chipset heat sink. Handling may damage
the thermal interface material that resides between the heat sink and the chipset
silicon.
Refer to your chassis manual for instructions on installing and removing the desktop
board.
Figure 5 shows the location of the mounting screw holes for Desktop Board
D945GCCR.
