安装和更换台式机主板组件
连接风扇和电源电缆
连接风扇电缆

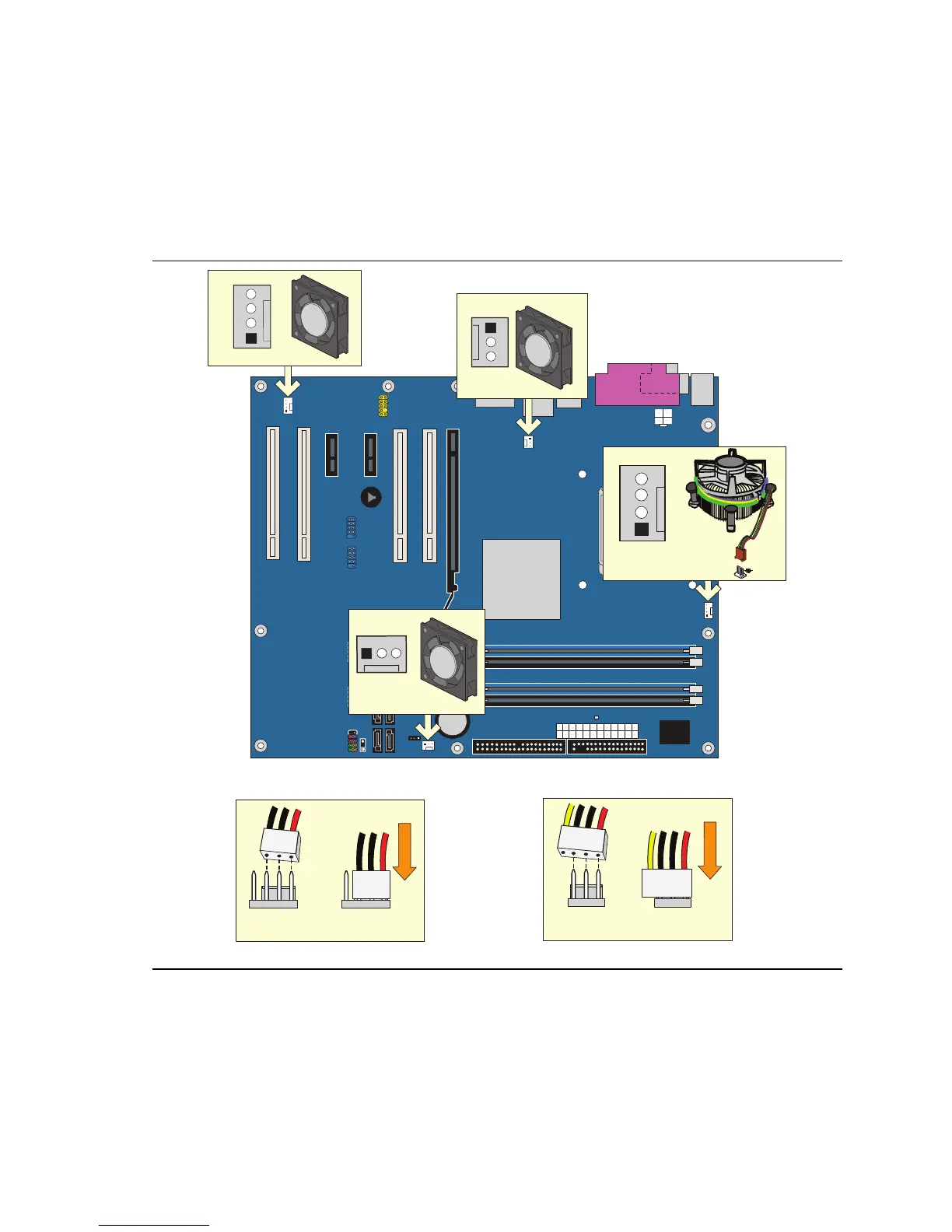

图 22 显示了风扇接头连接器的位置。将处理器风扇散热器电缆连接到台式机主板上的
4 针处理器风扇接头连接器上。 将机箱风扇电缆连接到 3 针风扇接头连接器上。
3
1
2
4
3
1
2
4
AB
3
1
2
3
1
2
BA
OR
OM19112
图 22. 风扇接头连接器位置
43
