英特尔台式机主板 D945PWM 产品指南
连接电源系统电缆
注意
若未使用恰当的电源系统,或未将 12 V (2x2) 电源连接器连接到台式机主板上,则可能对
台式机主板造成损害或导致系统功能异常。
有关电源系统的要求,请参阅第 13 页表 3。图 23 显示了电源系统连接器的位置。
2
1
OM19113

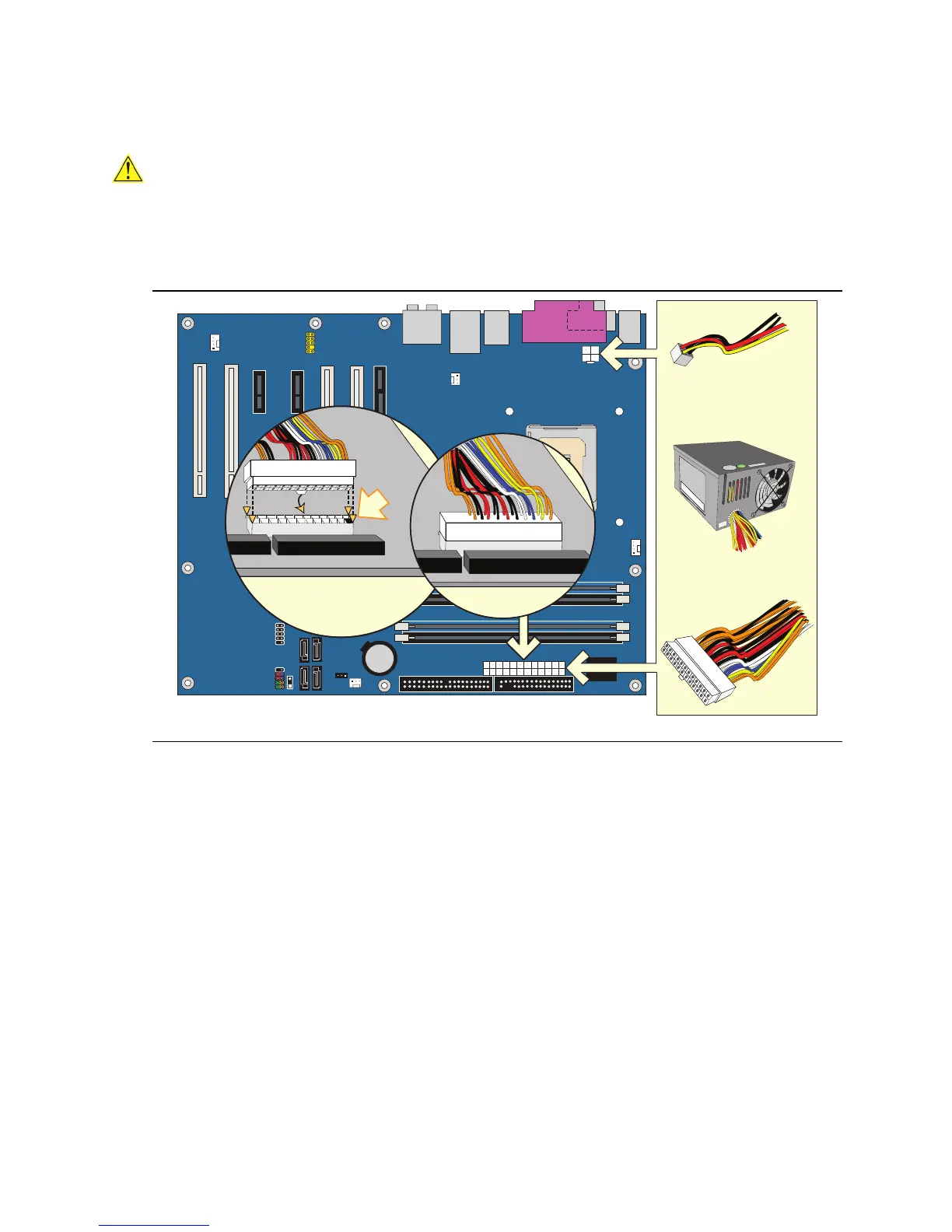

23. 连接电源系统电缆
1. 请遵守第 23 页“开始之前”中的注意事项。
2. 将主电源系统电缆连接到 2x12 连接器上。
3. 12 V 处理器核心电压电源系统电缆连接到 2x2 连接器上。
44
