Intel Desktop Board DB65AL Product Guide
42
Removing a PCI Express x16 Graphics Card
Follow these instructions to remove a PCI Express x16 graphics card from a connector:
1. Observe the precautions in "Before You Begin" on page 27.
2. Di
sconnect the monitor cable from the graphics card back panel connector.
3. Remove the screw (Figure 19, A) that secures the card’s metal bracket to the
chassis bac
k panel.
4. Push the card ejector lever down using the tip of a pencil or similar tool
(Figure 19, B) in the notch. This will release the card from the connector (C).
5. P
ull the card straight up to remove it.

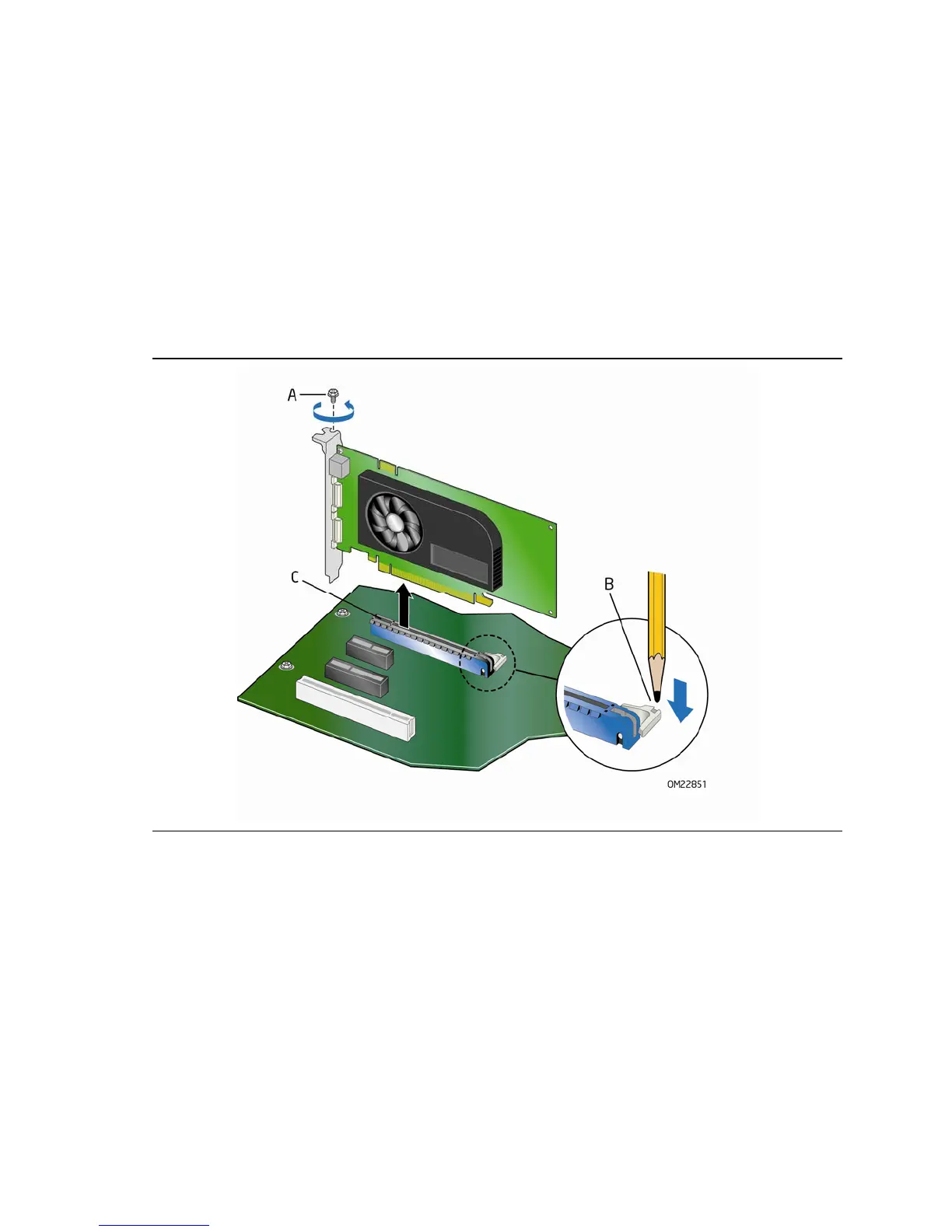

Figure 19. Removing a PCI Express x16 Graphics Card
