Intel Desktop Board DB65AL Product Guide
50
Connecting Chassis Fan and Power Supply
Cables
Connecting Chassis Fan Cables
Connect chassis fan cables to the chassis fan headers on the Desktop Board.
Figure 23 shows the location of the chassis fa
n headers.

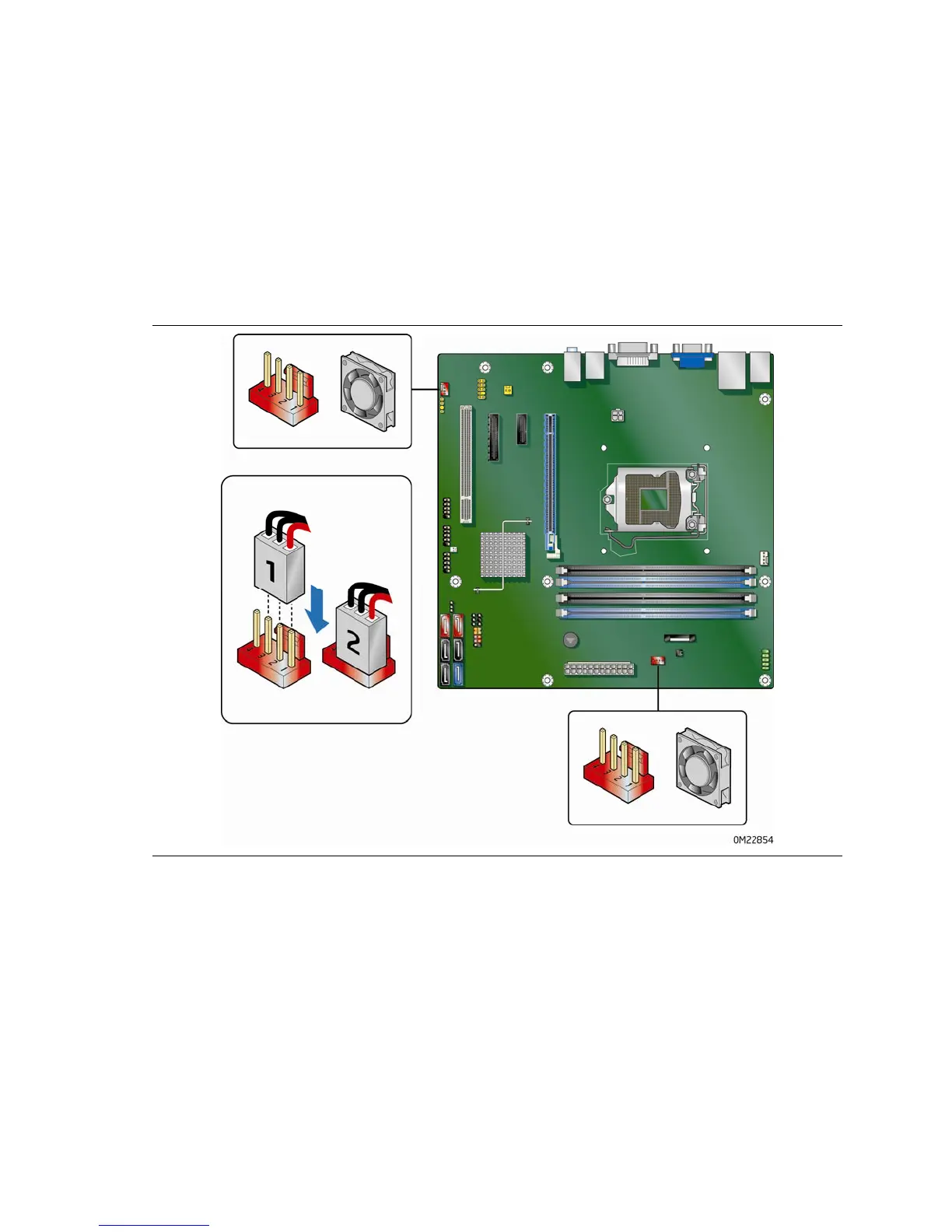

Figure 23. Location of the Chassis Fan Headers
