3 Overview of BIOS Features
3.1 Introduction
The board uses an Intel
®
Visual BIOS that is stored in the Serial Peripheral Interface
Flash Memory (SPI Flash) and can be updated using a disk-based program. The SPI
Flash contains the Visual BIOS Setup program, POST, the PCI auto-configuration
utility, LAN EEPROM information, and Plug and Play support.
The BIOS displays a message during POST identifying the type of BIOS and a revision
code. The initial production BIOSs are identified as RKPPT10H.86A.
When the BIOS Setup configuration jumper is set to configure mode and the computer
is powered-up, the BIOS compares the CPU version and the microcode version in the
BIOS and reports if the two match.
The Visual BIOS Setup program can be used to view and change the BIOS settings for
the computer. The BIOS Setup program is accessed by pressing the <F2> key after
the Power-On Self-Test (POST) memory test begins and before the operating system
boot begins.

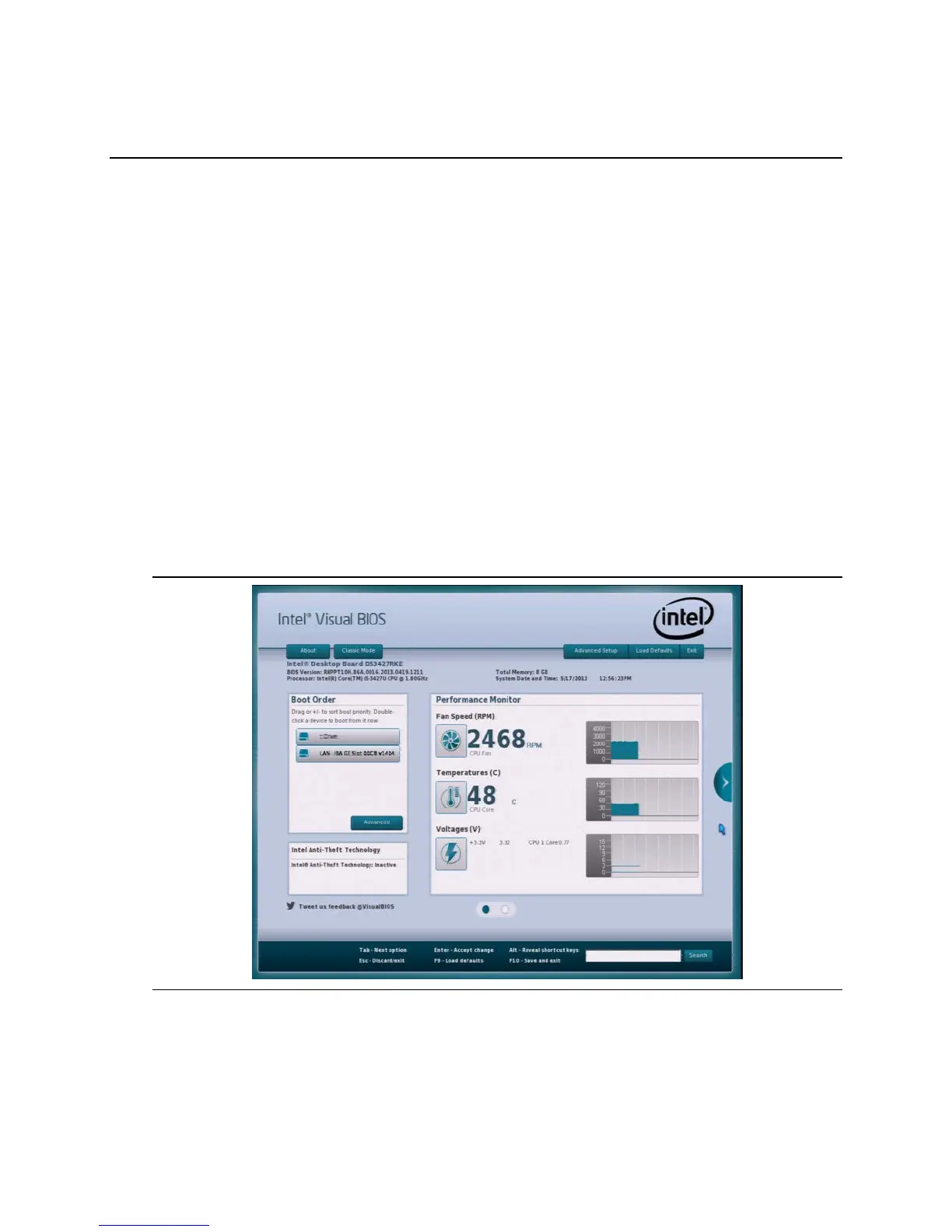

Figure 16. Intel Visual BIOS Home Screen
