英特尔台式机主板 DG965WH 产品指南
连接到内部接头连接器
在将电缆连接到内部接头连接器之前,请先阅读并遵守第 27 “开始之前”中的注意事项。

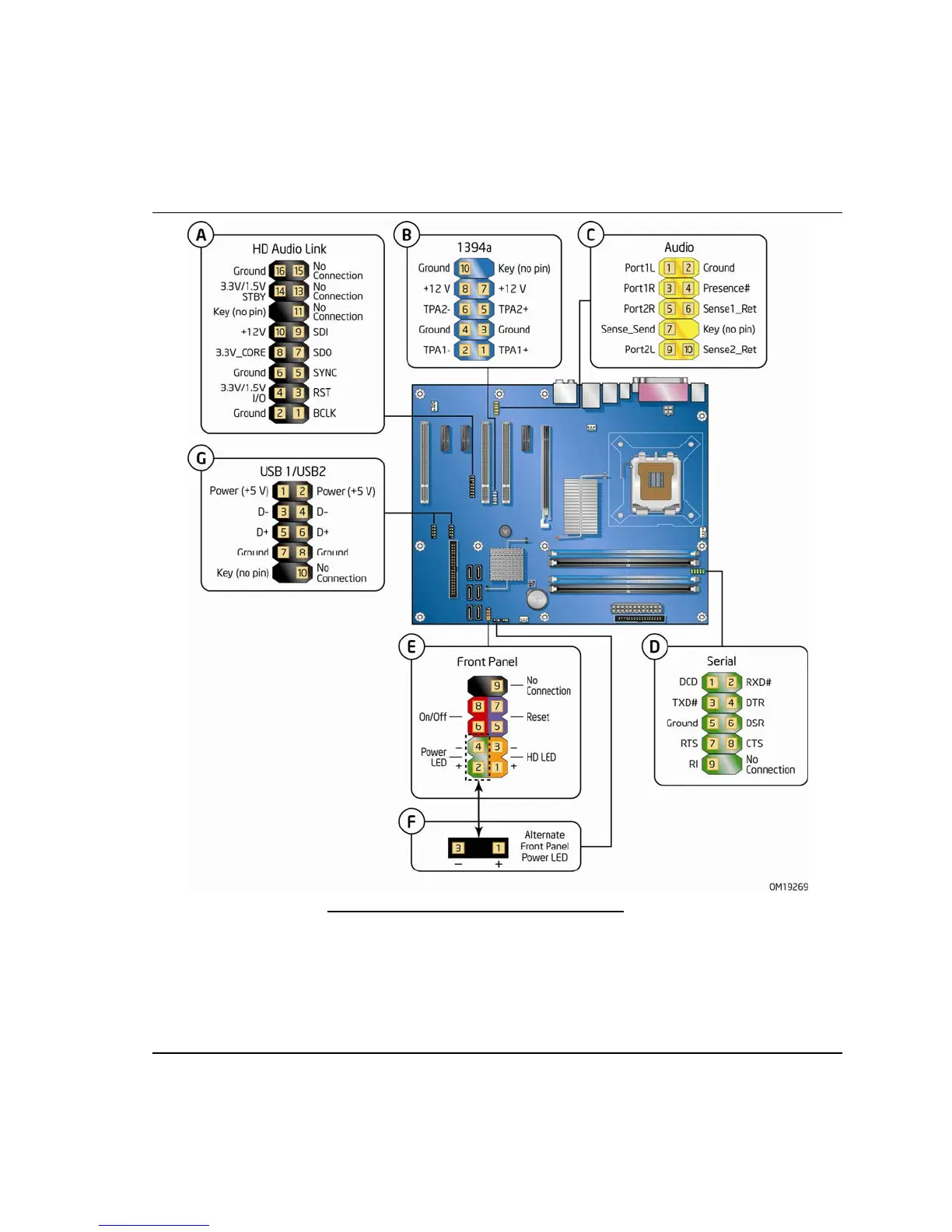

22 显示了这些内部接头连接器的位置。
项目 说明
A HD Audio LinkHD 音频链路)
B IEEE 1394a
C
前面板音频
D
串行端口
E
前面板
F 备用前面板电源 LED 指示灯
G USB 2.0
22. 内部接头连接器
44
