Intel Desktop Board DH57DD Pro
duct Guide
32
3.
Rotate t
he socket lever to lift the load pl
ate away from the socket (
Figure 7, A).
Make sure that th
e load plate is in the fully open
position (
Figure 7, B) while being
careful not to damage adjacent components
.

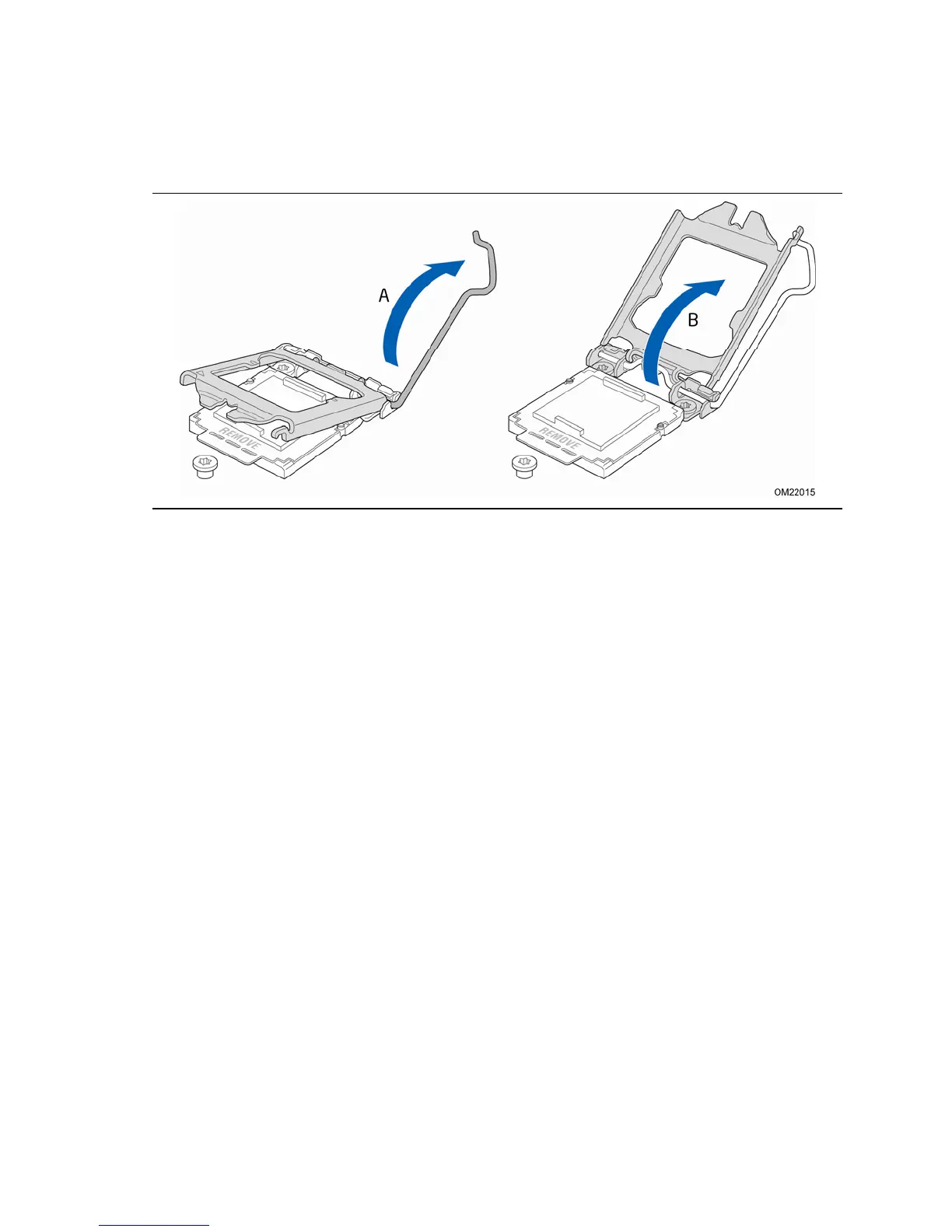

Figure 7. Lift the Lo
ad Plate
31
33
Table of Contents
Default Chapter
2
Revision History
2
Intended Audience
3
Use Only for Intended Applications
3
Table of Contents
5
Desktop Board Features
9
Supported Operating Systems
11
Tables
12
Desktop Board Components
12
Figures
12
Intel Desktop Board DH57DD Components
12
Processor
14
Intel H57 Express Chipset
15
Main Memory
15
Graphics Subsystem
16
Integrated Graphics
16
High-Definition Multimedia Interface* (HDMI*)
16
Intel ® HD Graphics
16
HDMI Port Status Conditions
16
Digital Visual Interface (DVI-I)
17
VGA Displays
17
PCI Express* X16 Graphics
17
Audio Subsystem
18
LAN Subsystem
19
USB 2.0 Support
19
LAN Connector Leds
19
SATA Support
20
Expandability
20
Legacy I/O
20
Bios
20
SATA Auto Configuration
20
PCI*/PCI Express Auto Configuration
21
Security Passwords
21
Hardware Management
21
Hardware Monitoring and Fan Speed Control
21
Chassis Intrusion
22
Fan Monitoring
22
Power Management
22
Acpi
22
Software Support
22
Fan Headers
23
Hardware Support
23
LAN Wake Capabilities
23
Power Connectors
23
+5 V Standby Power Indicator LED
24
Instantly Available PC Technology
24
PCI Express WAKE# Signal Wake-Up Support
25
Wake from Serial Port
25
Wake from USB
25
Location of the Standby Power Indicator
25
Wake from CIR
26
Speaker
26
Real-Time Clock Subsystem
26
Installing and Replacing Desktop Board Components
27
Before You Begin
27
Installation Precautions
28
Prevent Power Supply Overload
28
Observe Safety and Regulatory Requirements
28
Installing the I/O Shield
29
Installing and Removing the Desktop Board
30
Intel Desktop Board DH57DD Mounting Screw Hole Locations
30
Installing and Removing a Processor
31
Installing a Processor
31
Unlatch the Socket Lever
31
Lift the Load Plate
32
Remove the Socket Cover
33
Remove the Processor from the Protective Cover
34
Install the Processor
34
Lower the Load Plate
35
Secure the Load Plate in Place
35
Installing a Processor Fan Heat Sink
36
Connecting the Processor Fan Heat Sink Cable
36
Removing the Processor
36
Connecting the Processor Fan Heat Sink Power Cable to the Processor Fan Header
36
Installing and Removing System Memory
37
Guidelines for Dual Channel Memory Configuration
37
Two or Four Dimms
37
Example Dual Channel Memory Configuration with Two Dimms
37
Three Dimms
38
Example Dual Channel Memory Configuration with Four Dimms
38
Example Dual Channel Memory Configuration with Three Dimms
38
Installing Dimms
39
Use DDR3 Dimms
39
Installing a DIMM
40
Removing Dimms
41
Installing and Removing PCI Express X16 Graphics Cards
41
Installing a PCI Express X16 Graphics Card
41
Installing a PCI Express X16 Graphics Card
42
Removing a PCI Express X16 Graphics Card
43
Connecting SATA Cables
44
Connecting a SATA Cable
44
Connecting to the Internal Headers
45
Internal Headers
45
Front Panel Audio Header
46
IEEE 1394A Headers
46
Front Panel Audio Signal Names for Intel HD Audio
46
Front Panel Audio Header Signal Names for AC '97 Audio
46
IEEE 1394A Headers Signal Names
46
S/PDIF Header
47
Serial Header
47
Consumer IR (CIR) Headers
47
Serial Port Header
47
Intel RPAT Header
48
Chassis Intrusion Header
48
Front Panel CIR Receiver (Input) Header Signal Names
48
Back Panel CIR Emitter (Output) Header Signal Names
48
Intel RPAT Header Signal Names
48
Chassis Intrusion Header Signal Names
48
Alternate Front Panel Power LED Header
49
Front Panel Header
49
Alternate Front Panel Power LED Header Signal Names
49
Front Panel Header Signal Names
49
Front Panel USB 2.0 Headers
50
HD Audio Link Header
50
USB 2.0 Header Signal Names
50
HD Audio Link Header Signal Names
50
Connecting to the Audio System
51
Connecting Chassis Fan and Power Supply Cables
52
Connecting a Chassis Fan
52
Location of the Chassis Fan Header
52
Connecting Power Supply Cables
53
Setting the BIOS Configuration Jumper
54
Location of the BIOS Configuration Jumper Block
54
Clearing Passwords
55
Jumper Settings for the BIOS Setup Program Modes
55
Replacing the Battery
56
Removing the Battery
61
Updating the BIOS
63
Updating the BIOS with the Intel Express BIOS Update Utility
63
Updating the BIOS with the ISO Image BIOS Update File or the Intel Flash Memory Update Utility
64
Obtaining the BIOS Update File
64
Updating the BIOS with the ISO Image BIOS Update File
64
Updating the BIOS with the Intel Flash Memory Update Utility
65
Recovering the BIOS
66
A Error Messages and Indicators
67
BIOS Error Codes
67
BIOS Beep Codes
67
Front-Panel Power LED Blink Codes
68
BIOS Error Messages
68
B Regulatory Compliance
69
Safety Standards
69
Battery Caution
69
European Union Declaration of Conformity Statement
70
Product Ecology Statements
71
Recycling Considerations
71
China Rohs
74
Intel Desktop Board DH57DD China Rohs Material Self Declaration Table
74
EMC Regulations
75
FCC Declaration of Conformity
75
Canadian Department of Communications Compliance Statement
76
Japan VCCI Statement
76
Ensure Electromagnetic Compatibility (EMC) Compliance
77
Korea Class B Statement
77
Product Certifications
78
Board-Level Certifications
78
Regulatory Compliance Marks
78
Chassis- and Component-Level Certifications
79
ENERGY STAR*, E-Standby, and Erp Compliance
79
