Installing and Replacing Desktop Board Components
45
Connecting to the Internal Headers
Before connecting cables to any of the inte
rnal headers, observ
e the precautions in
“
Before You Begin” on page
27.

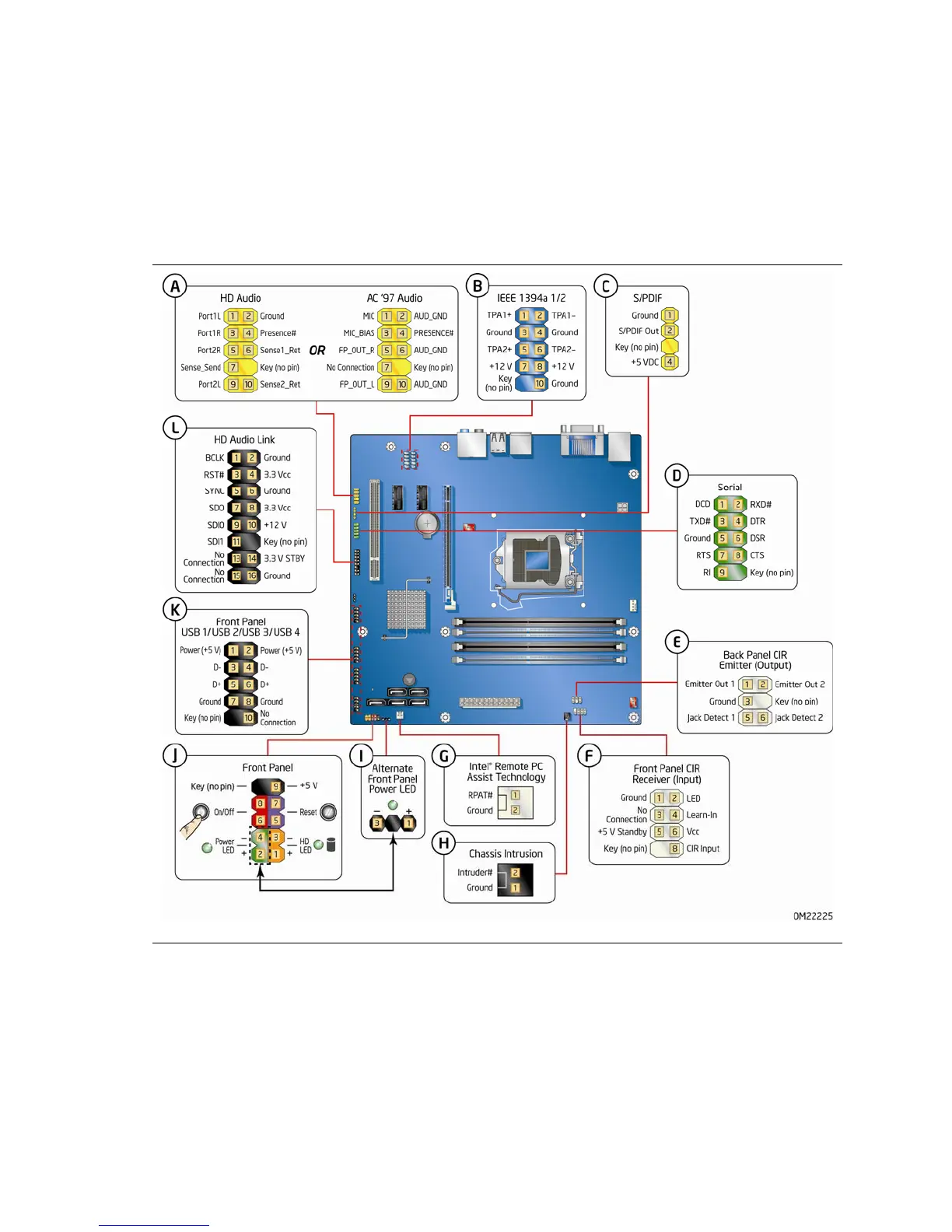

Figure 22 sho
ws the location of the internal headers
and connectors on In
tel Desktop Board DH57DD.
Figure 22. Internal Headers
