1.11.2.1 Analog Audio Connectors

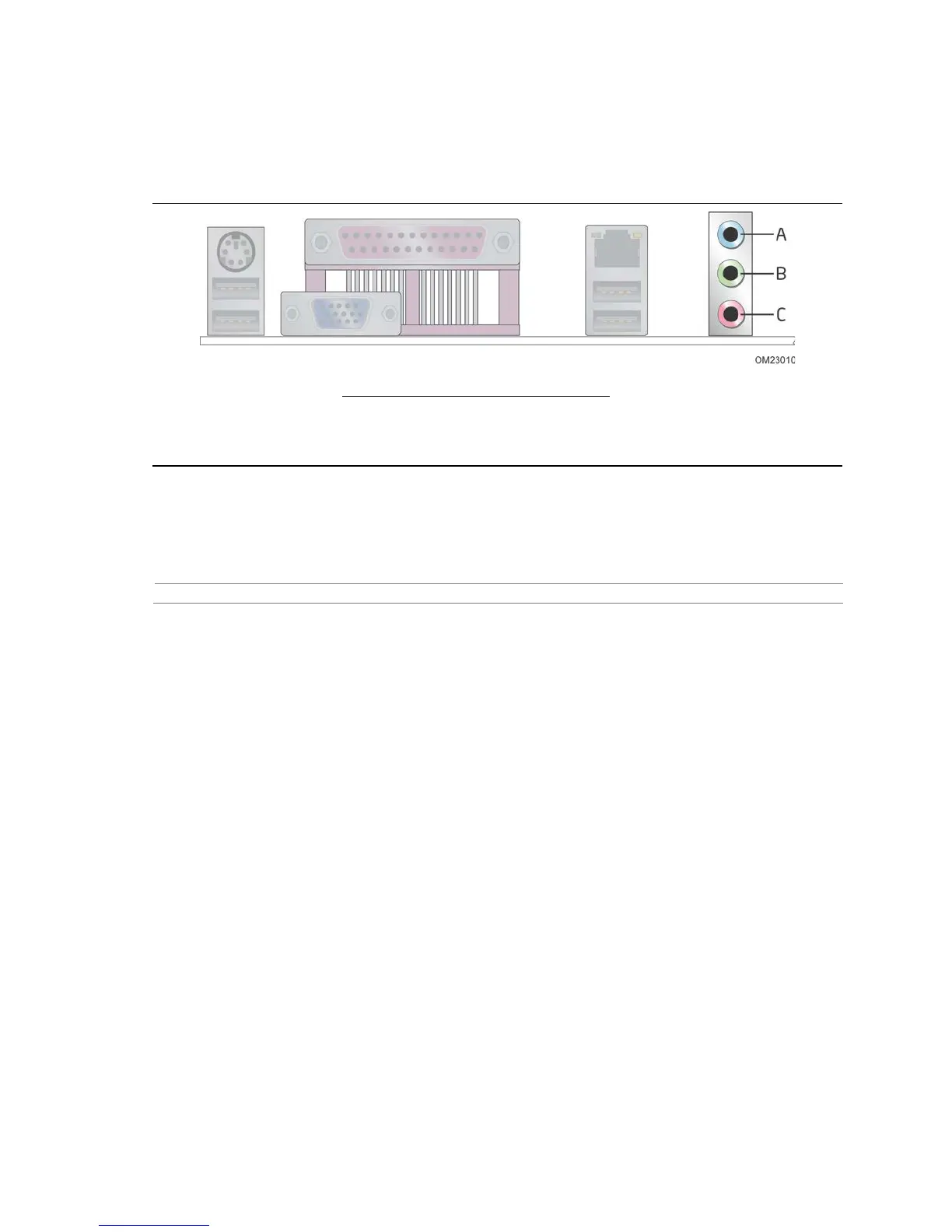

The available configurable back panel audio connectors are shown in Figure 4.
Item Description
A Line in
B Line out/front speakers
C Mic in/side surround
Figure 4. Back Panel Audio Connector Options
The back panel audio connectors are configurable through the audio device drivers.
For information about Refer to
The back panel audio connectors Section 2.2.1, page 41
The front panel headphone output is supported using a separate audio channel pair
allowing multi-streaming audio configurations such as simultaneous 5.1 surround
playback and stereo audio conferencing (through back panel speakers and a front
panel headset, respectively).
1.11.2.2 S/PDIF Header
The S/PDIF header allows connections to coaxial or optical dongles for digital audio
output.
