Intel DH61WW User Manual

Technical Reference
57

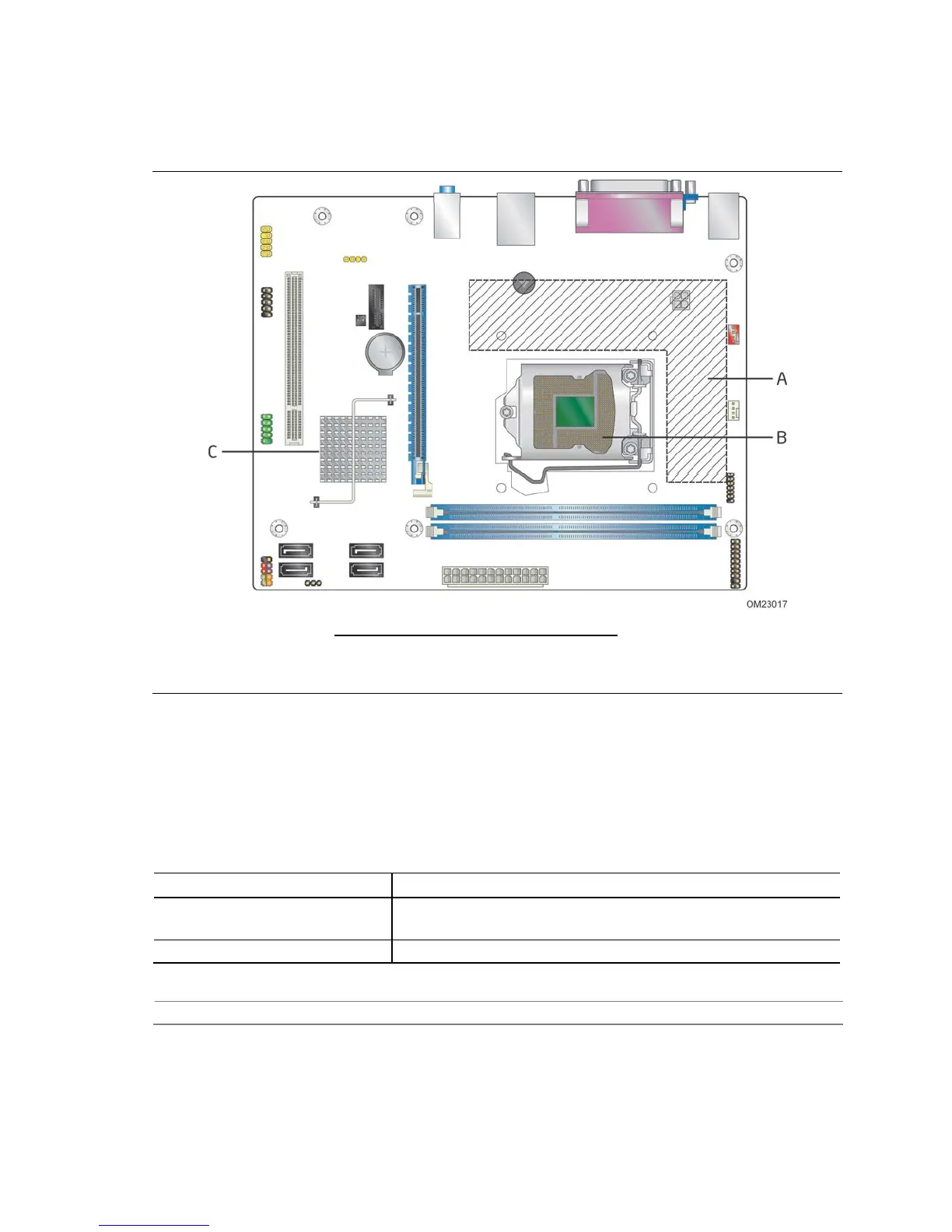

Figure 15 shows the locations of the localized high temperature zones.
Item Description
A Processor voltage regulator area
B Processor
C Intel H61 Express Chipset
Figure 15. Localized High Temperature Zones
Table 28 provides maximum case temperatures for the components that are sensitive
to thermal changes. The operating temperature, current load, or operating frequency
could affect case temperatures. Maximum case temperatures are important when
considering proper airflow to cool the board.
Table 28. Thermal Considerations for Components
Component Maximum Case Temperature
Processor For processor case temperature, see processor datasheets and
processor specification updates
Intel H61 Express Chipset 111
o
C (under bias)
For information about
Refer to
Processor datasheets and specification updates Section 1.3, page 16

Intel DH61WW Specifications

General

Form Factor	Micro ATX
Chipset	Intel H61
Socket	LGA 1155
Memory Type	DDR3
Memory Slots	2
Max Memory	16 GB
PCIe 3.0 x16 Slots	0
PCIe 2.0 x1 Slots	2
PCI Slots	1
SATA 3.0 Gb/s Ports	4
USB 2.0 Ports	10
Audio Channels	6
Video Output	VGA, DVI-D
LAN Controller	Intel 82579V
LAN	Gigabit Ethernet
