Intel Desktop Board DH67GD Product Guide
32
3.
Rotate t
he socket lever to lift the load pl
ate away from the socket (
Figure 7, A).
Make sure that th
e load plate is in the fully open
position (
Figure 7, B) while being
careful not to damage adjacent co
mponen
ts. Do no
t touch the socket contacts.

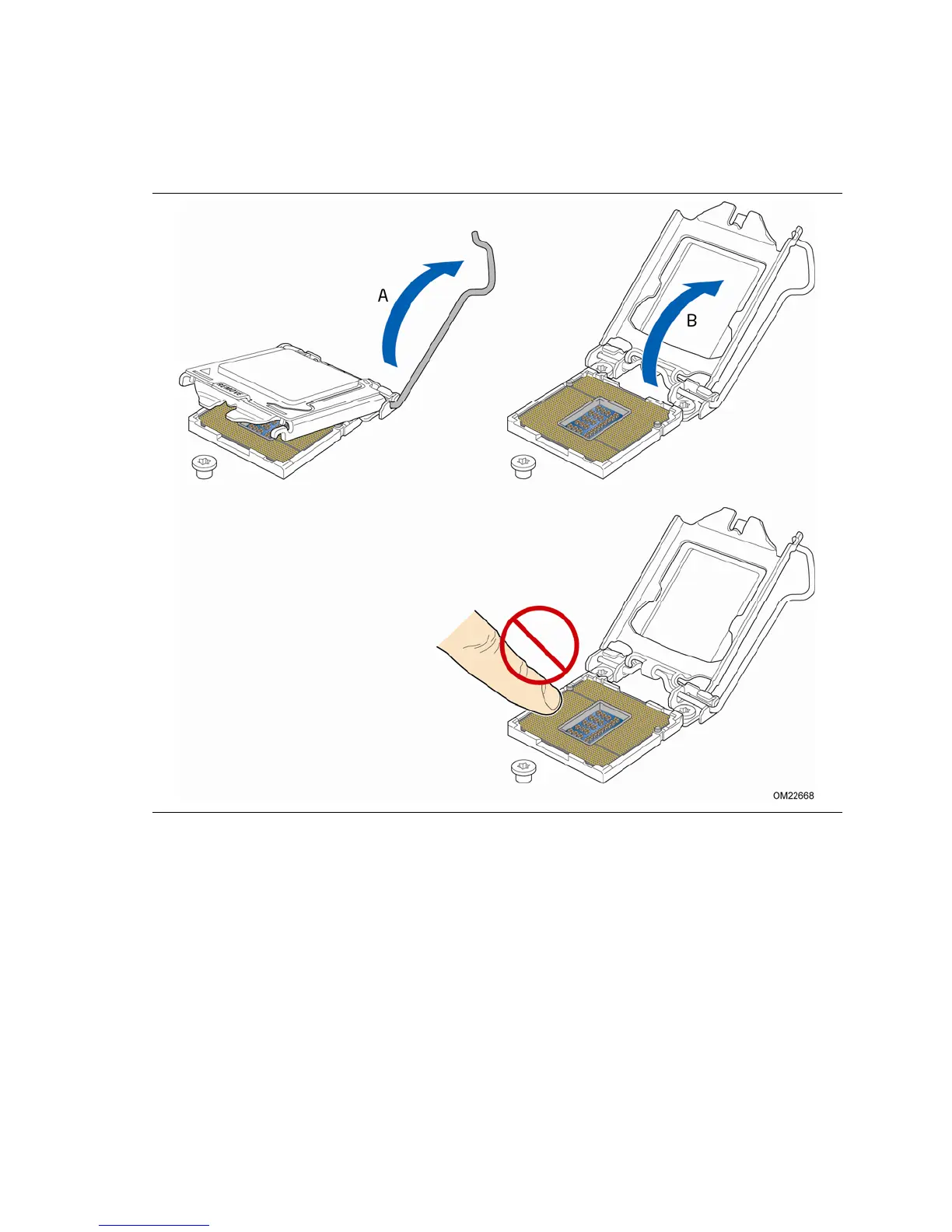

Figure 7. Lift the Lo
ad Plate
31
33
