Installing and Removing System Memory
NOTE
To be fully compliant with all applicable Intel SDRAM memory specifications, the board
requires DIMMs that support the Serial Presence Detect (SPD) data structure.
Guidelines for Dual Channel Memory Configuration
Desktop board DH67GD has four 240-pin DDR3 DIMM sockets arranged in two
channels (A and B).
Two or Four DIMMs
Install a matched pair of DIMMs equal in speed and size (see Figure 12) in the blue
socket of channel A (DIMM 1) and channel B (DIMM 2).

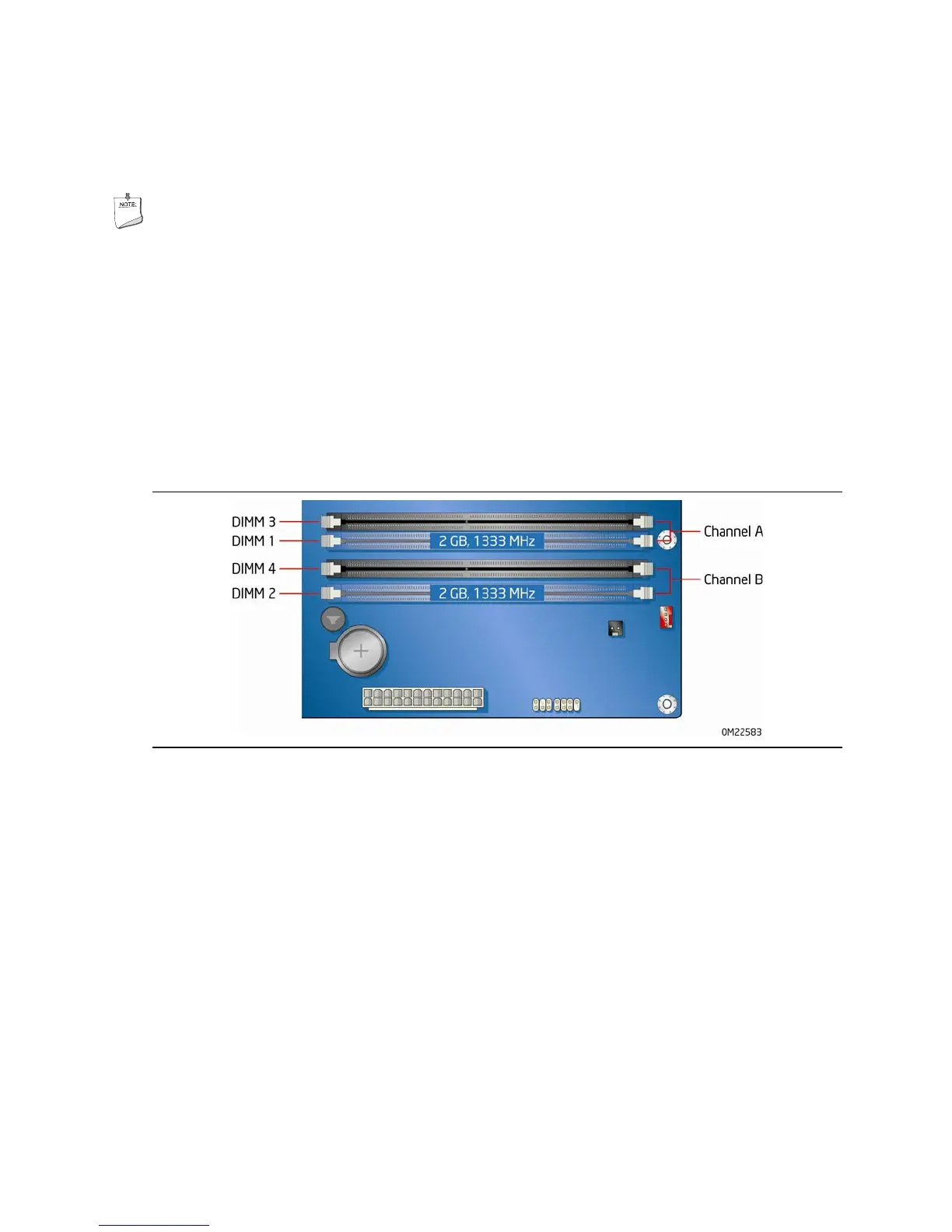

Figure 12. Example Dual Channel Memory Configuration with Two DIMMs
If additional memory is to be used, install another matched pair of DIMMs (see
Figure 13) in the black socket of channel A (DIMM 3) and channel B (DIMM 4).
