Intel Desktop Board DH67GD Product Guide

Connecting Chassis Fan and Power Supply

Cables

Connecting a Chassis Fan

Connect the chassis fan cable to the chassis fan header on the Desktop Board.

Figure 22 shows the location of the chassis fan header.

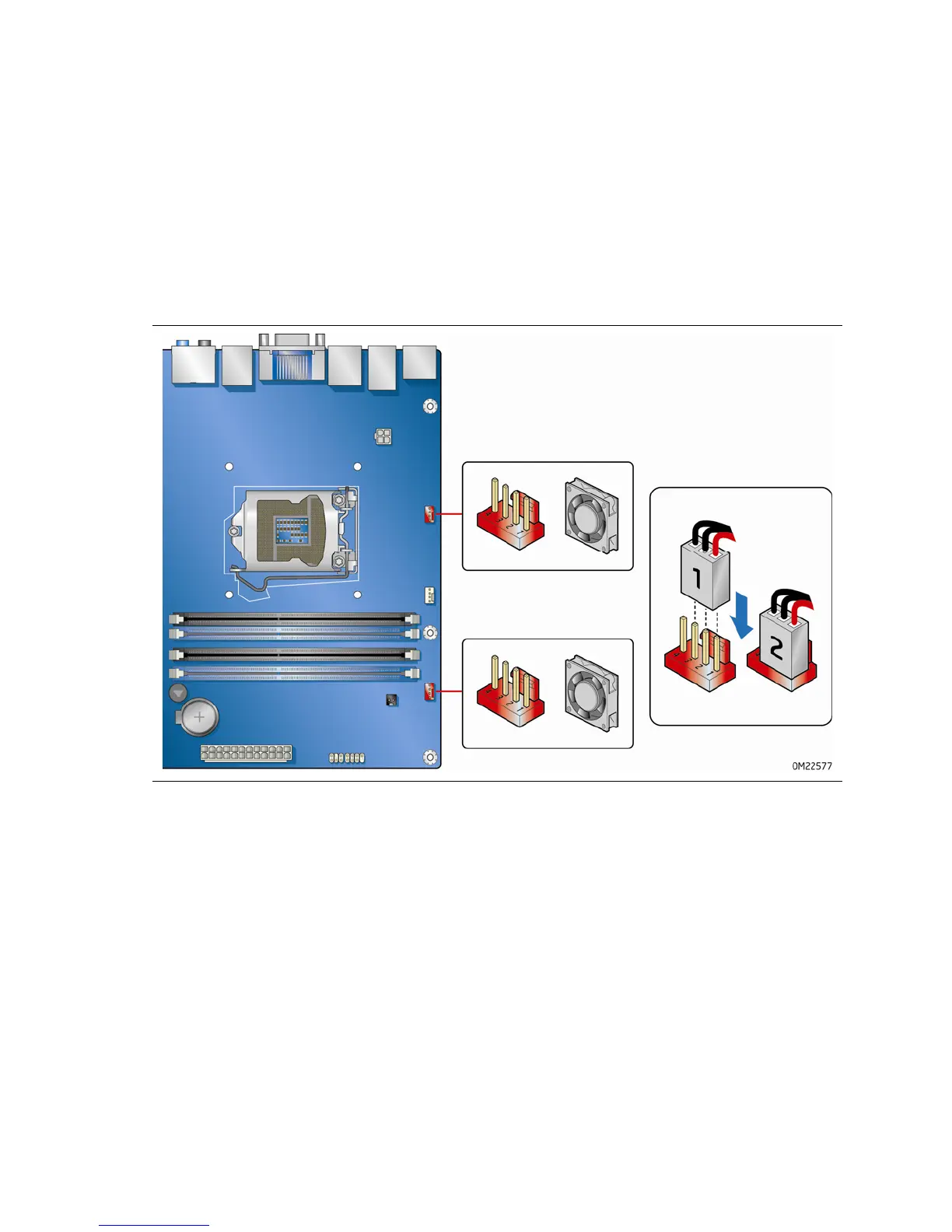

Figure 22. Location of the Chassis Fan Header
