Installing and Replacing Desktop Board Components
37

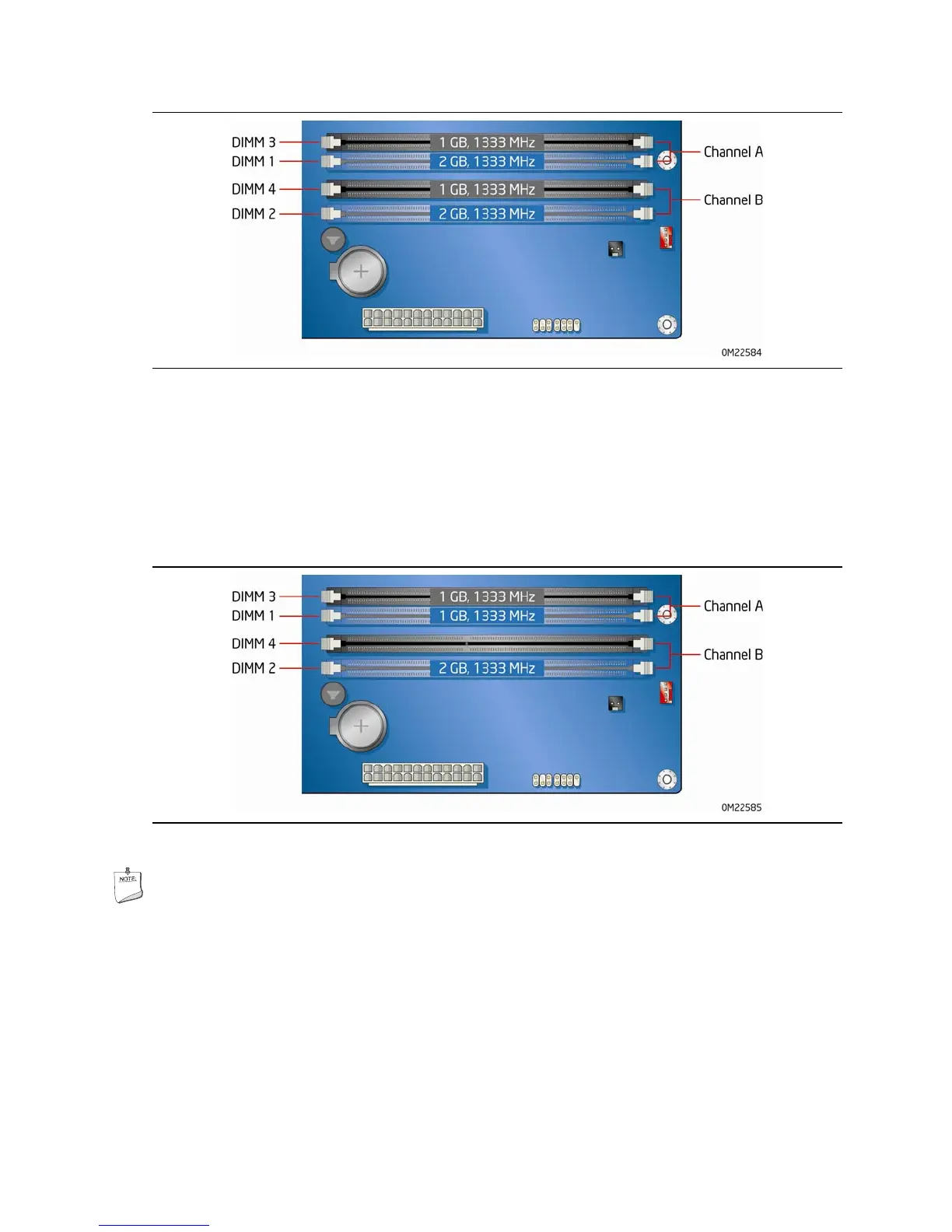

Figure 13. Example Dual Channel Memory Configuration with Four DIMMs
Three DIMMs
If you want to use three DIMMs in a dual-channel configuration, install a matched pair
of DIMMs equal in speed and size in DIMM 1 and DIMM 3 of channel A. Then install
another DIMM equal to the speed and total size of the DIMMs installed in channel A in
either DIMM 2 or DIMM 4 of channel B (Figure 14).
Figure 14. Example Dual Channel Memory Configuration with Three DIMMs
NOTE
Intel Core i7 processors, Intel Core i5 processors, and Intel Core i3 processor series
2000 require memory to be installed in the DIMM 1 (or Channel A, DIMM 1) socket.
