Intel Desktop Board DP67DE Technical Product Specification
50
2.3 Jumper Block
CAUTION
Do not move the jumper with the power on. Always turn off the power and unplug the
power cord from the computer before changing a jumper setting. Otherwise, the board
could be damaged.
Figure 13 shows the location of the jumper block. The 3-pin jumper block determines
the BIOS Setup program’s mode. Table 28 describes the jumper settings for the three
modes: normal, configure, and recovery. When the jumper is set to configure mode
and the computer is powered-up, the BIOS compares the processor version and the
microcode version in the BIOS and reports if the two match.

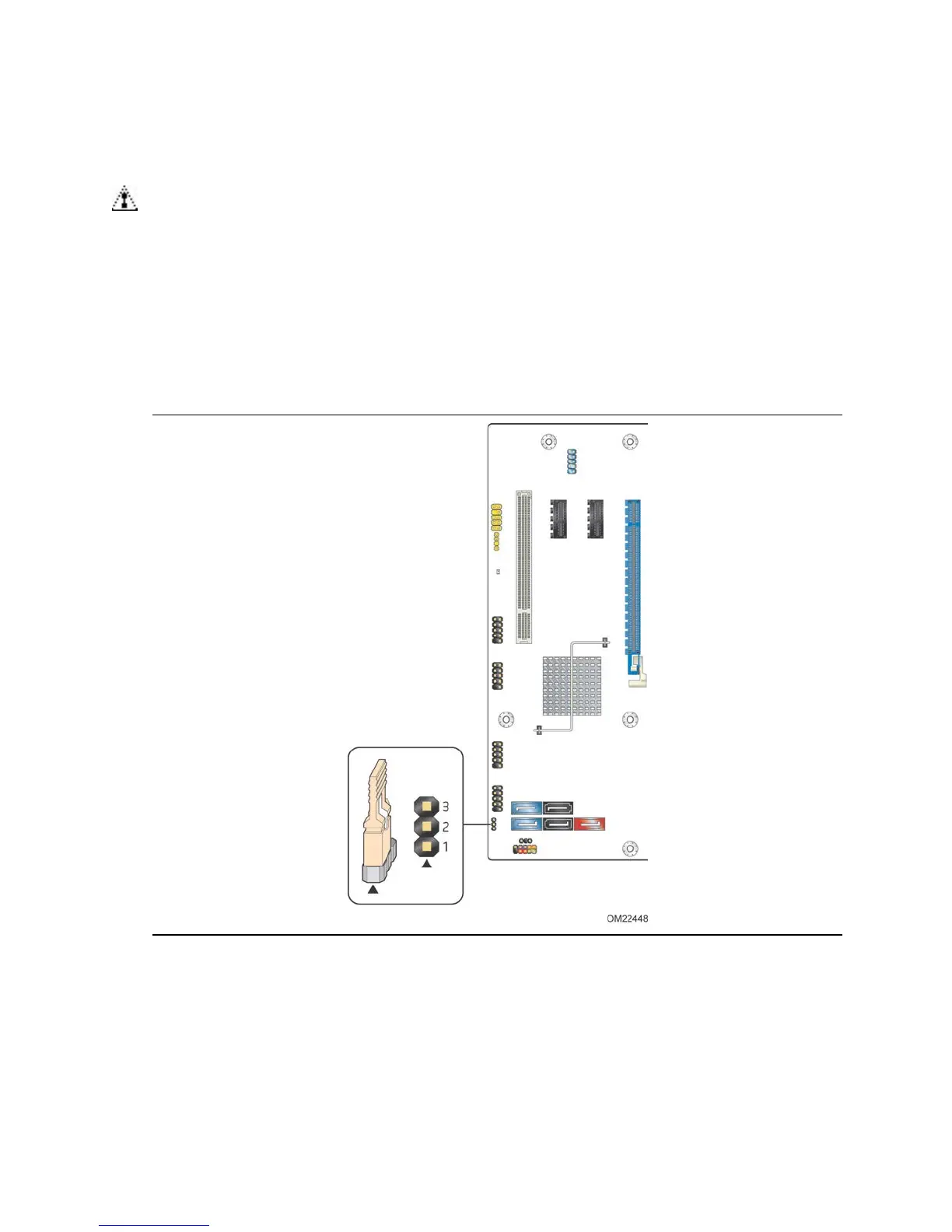

Figure 13. Location of the Jumper Block
