LAN Subsystem
The LAN subsystem consists of the following:
• Intel 82566DM Gigabit Network Connection with support for:
― Intel
®
Active Management Technology with System Defense Feature
― Alert Standard Format (ASF) 2.0
― Virtual LAN driver support for Intel
®
VT partitions
• RJ-45 connector with status indicator LEDs
LAN Subsystem Software
For LAN software and drivers, refer to the DQ965CO link on Intel’s World Wide Web
site at:
http://support.intel.com/support/motherboards/desktop
RJ-45 LAN Connector LEDs
Two LEDs are built into the RJ-45 LAN connector located on the back panel (see
Figure 2). These LEDs indicate the status of the LAN.

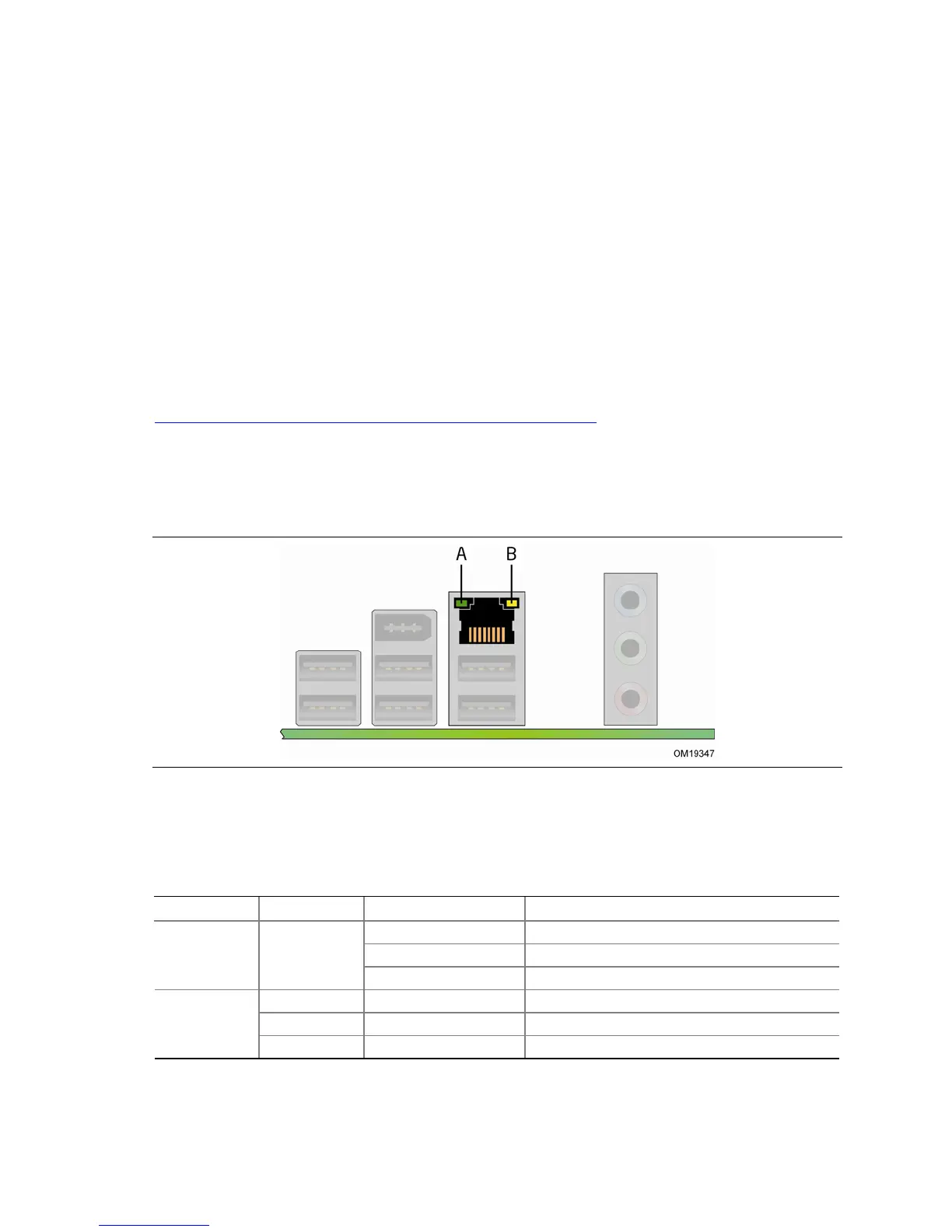

Figure 2. LAN Connector LEDs
Table 4 describes the LED states when the board is powered up and the LAN
subsystem is operating.
Table 4. LAN Connector LED States
LED LED Color LED State Indicates
Off LAN link is not established
On LAN link is established
A Green
Blinking LAN activity is occurring
N/A Off 10 Mb/s data rate
Green On 100 Mb/s data rate
B
Yellow On 1000 Mb/s data rate
