Intel DQ965CO Product Guide

Installing and Replacing Desktop Board Components
35
Installing the Thermal Module
Desktop board DQ965CO has four mounting holes for a BTX Thermal Module. The
board will accept either a Type I or Type II Thermal Module. Use the correct Thermal
Module for your chassis.
To install the Thermal Module, use the following procedure:
1. With the BTX Support and Retention Module (SRM) installed in the chassis, position
the Thermal Module on the desktop board with the fan end extending past the
edge of the desktop board and over the exposed end of the SRM.
2. Align the four captive screws in the Thermal Module with the mounting holes in the
desktop board and SRM as shown in
Figure 12.

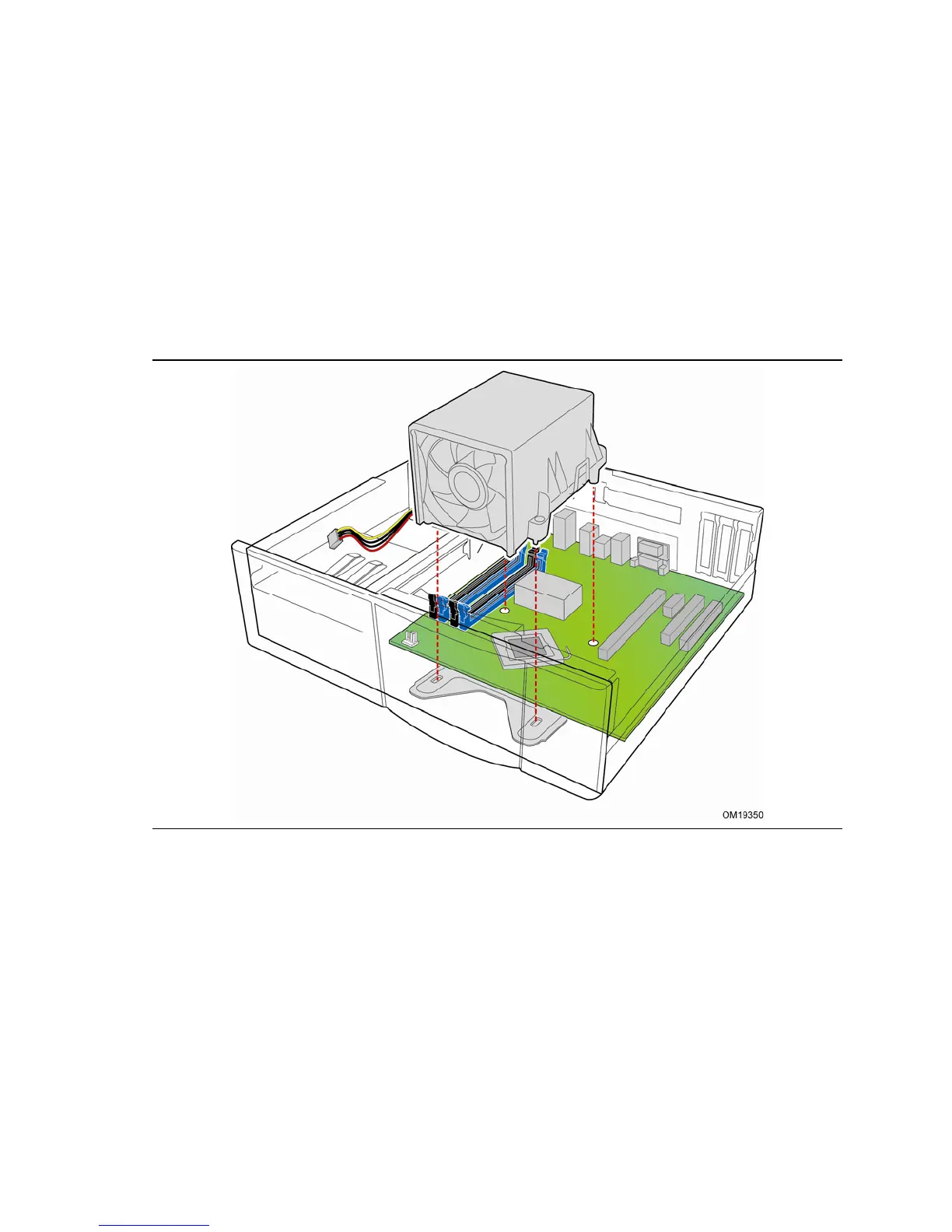

Figure 12. Position the Thermal Module Over the Mounting Holes
