Installing and Replacing Desktop Board Components
39
Installing the Processor Fan Heat Sink
Intel Desktop Board DX58SO2 has mounting holes for a processor fan heat sink. For
instructions on how to attach the processor fan heat sink to the Desktop Board, refer
to the boxed processor manual or boxed thermal solution manual.
Connecting the Processor Fan Heat Sink Cable
Connect the processor fan heat sink cable to the 4-pin processor fan header (see
Figure 14). A fan with a 4-pin co
nnector as shown in Figure 14, A is recommended;
however, a fan with a 3-pin connector (Figure 14, B) can be used. However, since the
fan wi
th a 3-pin connector cannot use the onboard fan control, the fan will always
operate at full speed.

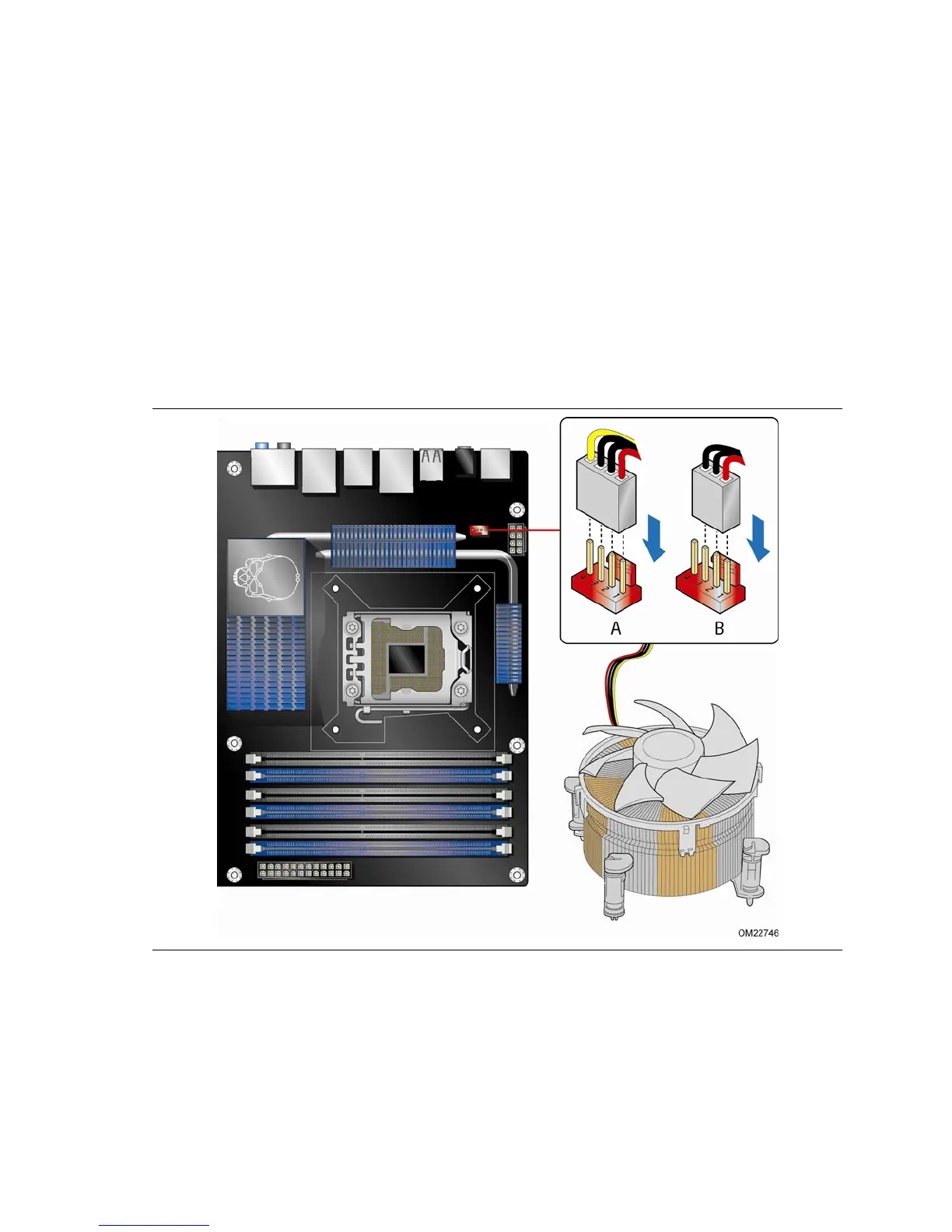

Figure 14. Connecting the Processor Fan Heat Sink Cable to the
Processor Fan Header

Intel DX58SO2 Specifications

General

Brand	Intel
Model	DX58SO2
Category	Motherboard
Language	English
