Intel Desktop Board DZ68ZV Technical Product Specification
32
1.12.4
Thermal Monitoring

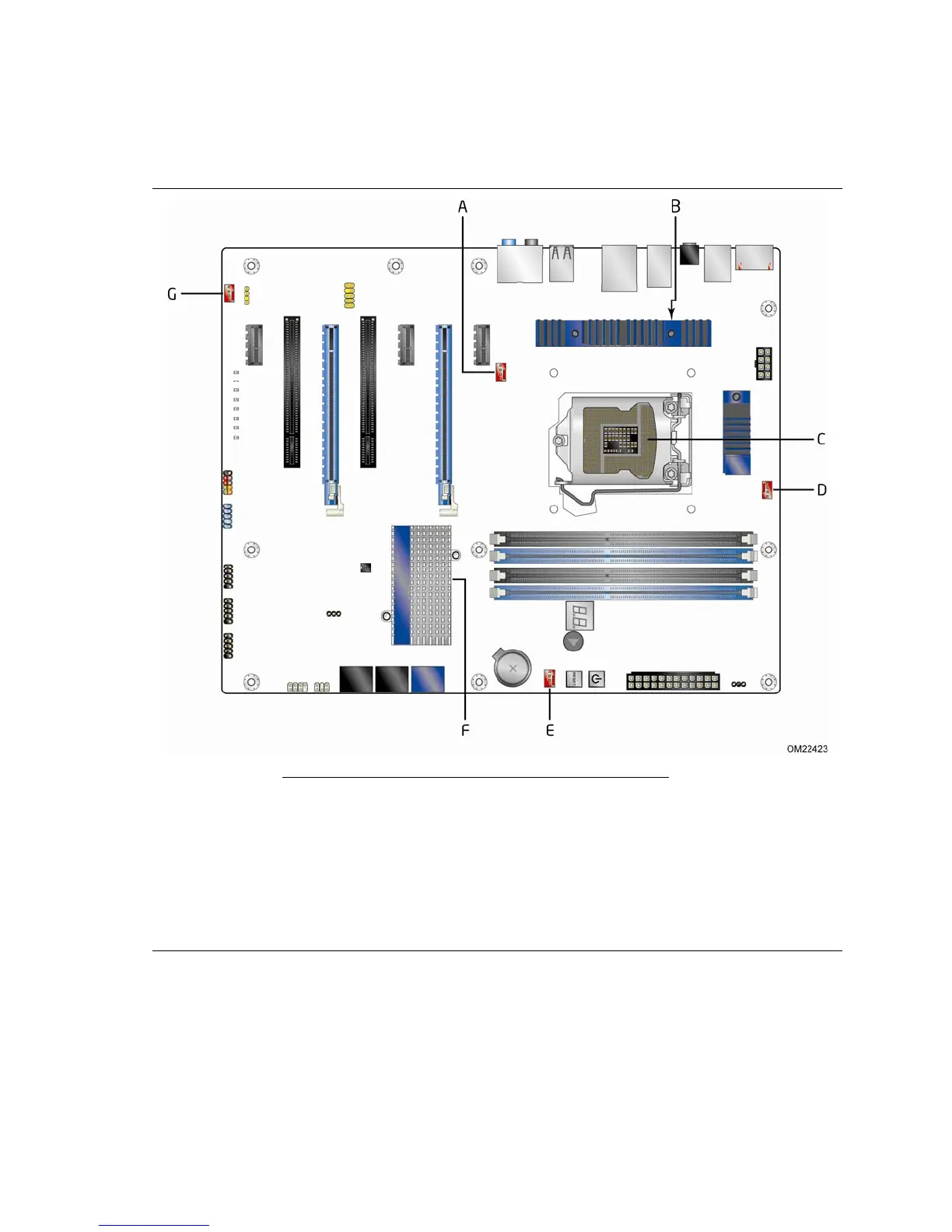

Figure 6 shows the locations of th
e thermal sensors and fan headers.
Item Description
A
Rear chassis fan header
B
Voltage regulator thermal diode
C
Thermal diode, located on processor die
D
Processor fan header
E
Front chassis fan header
F
Thermal diode, located on the Intel Z68 Express
Chipset
G
Auxiliary fan header
Figure 6. Thermal Sensors and Fan Headers
