Intel Desktop Board DZ68ZV Technical Product Specification
46
2.2.1 Back Panel Connectors
Figure 10 shows the location of the back panel connectors for the board.
Item Description
A eSATA port
B IEEE 1394a connector
C USB 2.0 ports (2)
D Back to BIOS button
E USB 2.0 ports (4)
F LAN
G USB 2.0 ports (2)
H USB 3.0 ports (2)
I Rear surround
J S/PDIF out (optical)
K Center channel and LFE (subwoofer)
L Line in
M Line out/front speakers
N Mic in/side surround

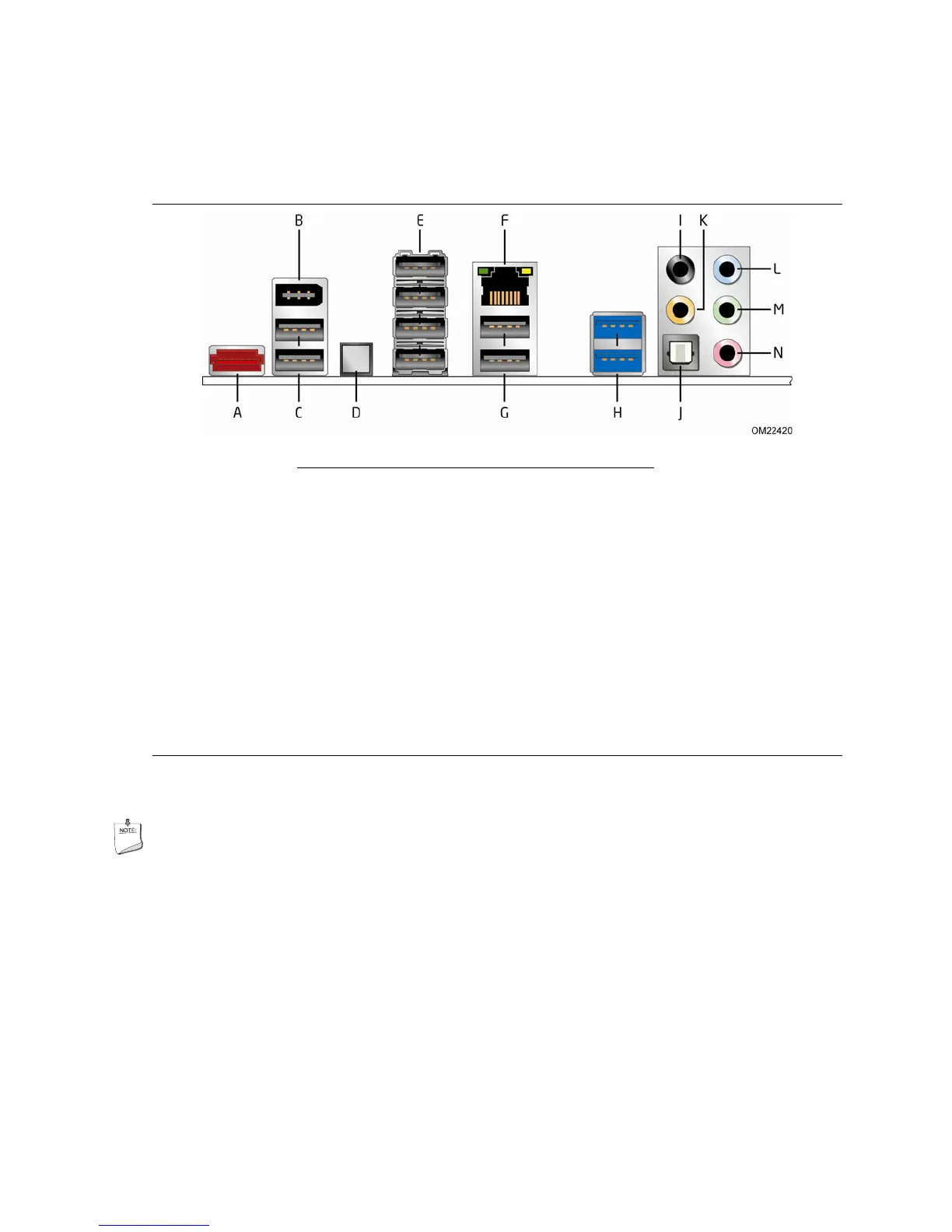

Figure 10. Back Panel Connectors
NOTE
The back panel audio line out connector is designed to power headphones or amplified
speakers only. Poor audio quality occurs if passive (non-amplified) speakers are
connected to this output.
