Intel Desktop Board DZ68ZV Product Guide
30

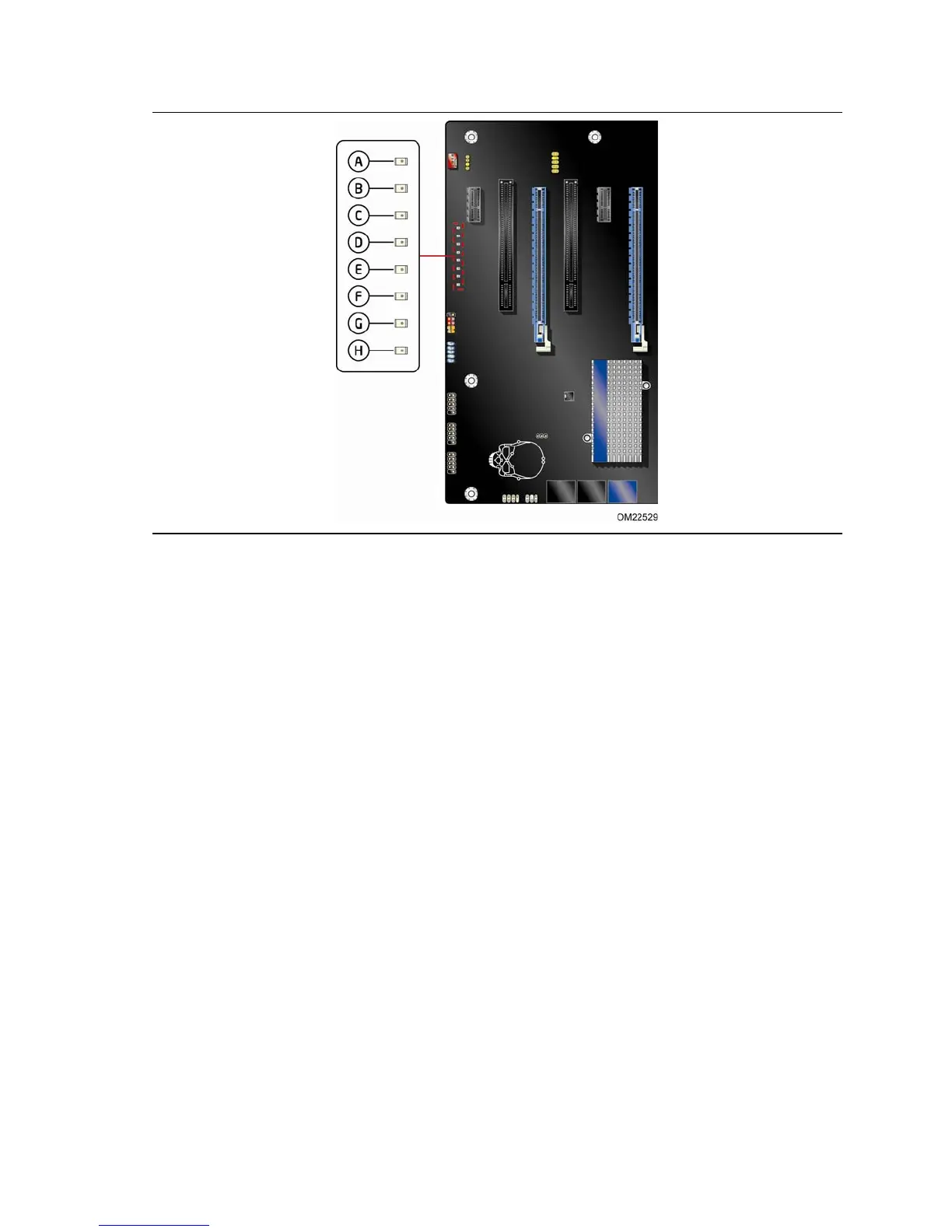

Figure 6. Location of the Diagnostic LEDs
Speaker
A speaker is mounted on the Desktop Board. The speaker provides audible error code
(beep code) information during the Power-On Self-Test (POST). Refer to Appendix A
for a description of the board’s beep codes.
Battery
A battery on the Desktop Board keeps the values in CMOS RAM and the clock current
when the computer is turned off. Go to page 59 for instructions on how to replace the
battery.
Real-Time Clock
The Desktop Board has a time-of-day clock and 100-year calendar. The battery on the
Desktop Board keeps the clock current when the computer is turned off.
