Installing and Replacing Desktop Board Components
57
Setting the BIOS Configuration Jumper
NOTE
Always turn off the power and unplug the power cord from the computer before
moving the jumper. Moving the jumper with the power on may result in unreliable
computer operation.
Figure 28 shows the location of the Desktop Board’s BIOS confi
guration jumper block.

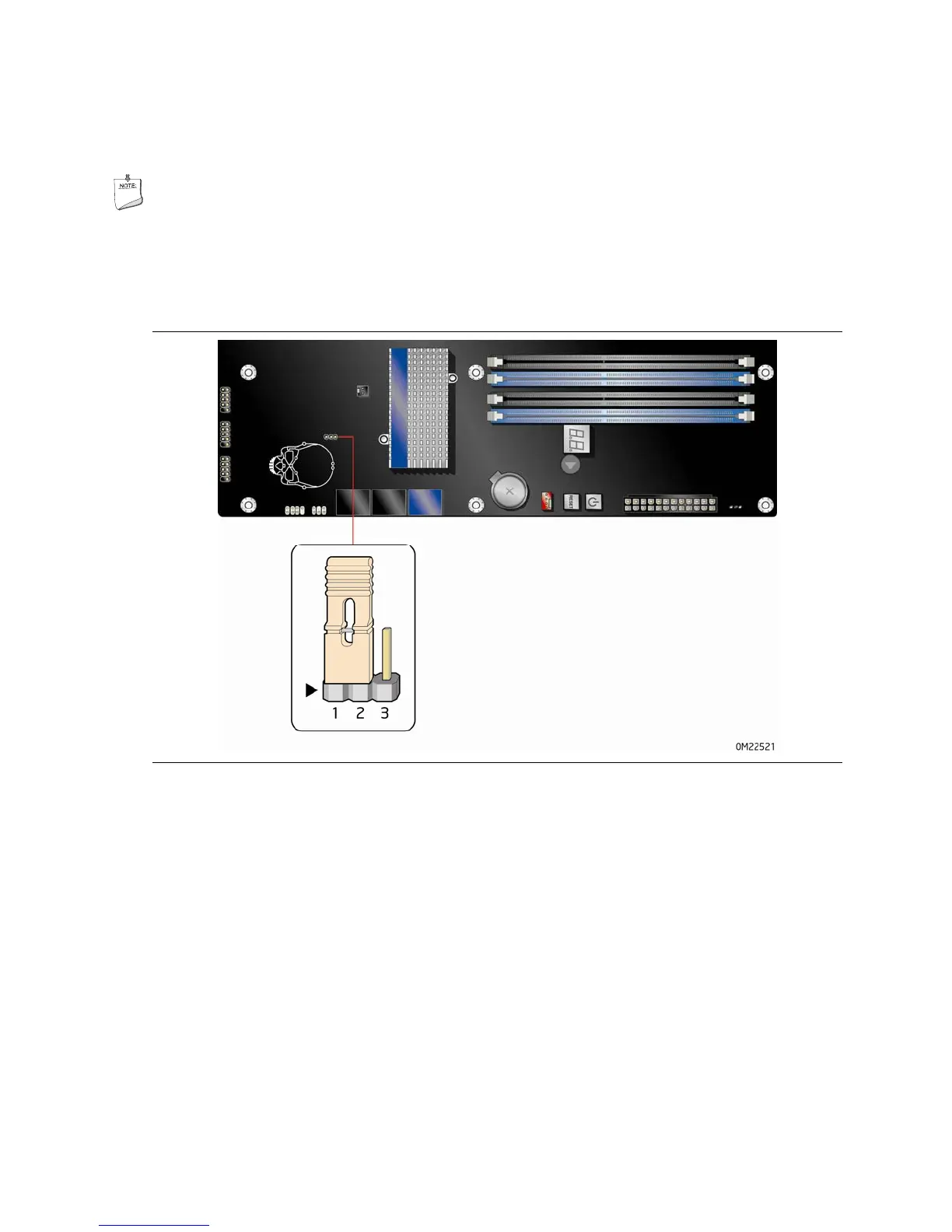

Figure 28. Location of the BIOS Configuration Jumper Block
The three-pin BIOS jumper block enables board configuration to be done in the BIOS
Setup program. Table 15 shows the jumper settings
for the BIOS Setup program
modes.
