Installing and Replacing Desktop Board Components
49
Connecting to the Internal Headers
Before connecting cables to any of the inte
rnal headers, observ
e the precautions in
“
Before You Begin” on page
31.

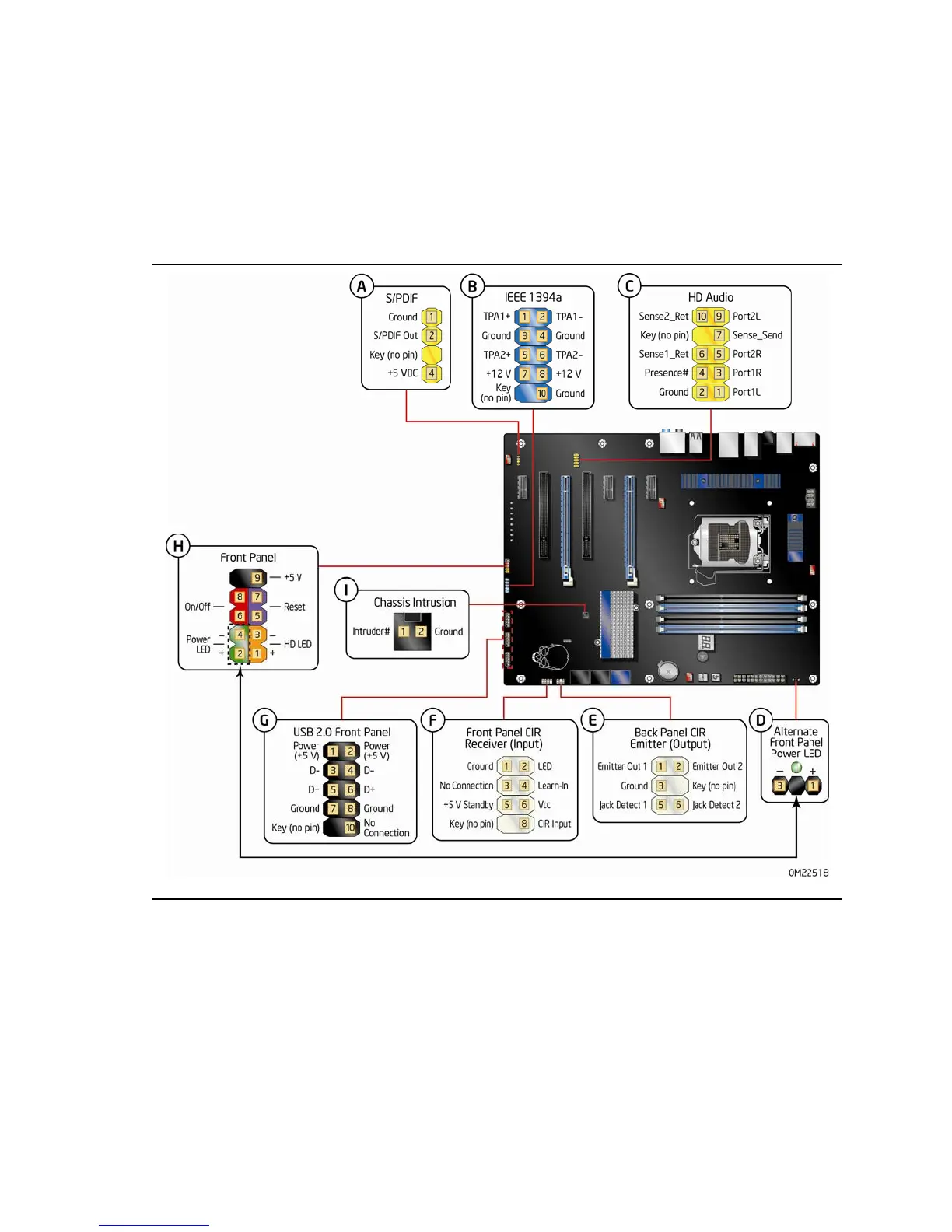

Figure 24 sho
ws the location of the internal headers
and co
nnectors on Intel
Desktop Board DZ68ZV.
Figure 24. Internal Headers
48
50
