Intel DZ77GA-70K / DZ77RE-75K Desktop Board Performance Tuning Guide
16
screen prompt will allow the user to adjust performance settings in BIOS to restore
system stability.
3.5 Intel Desktop Board DZ77GA-70K Tuning
using Over-Clocking Assistant™
Included in the DZ77GA-70K Visual BIOS™ setup program is an automated method to
over clock using pre-tested built in settings. These settings have been extensively
developed and tested in Intel’s over clocking laboratory and will work with most
system configurations.

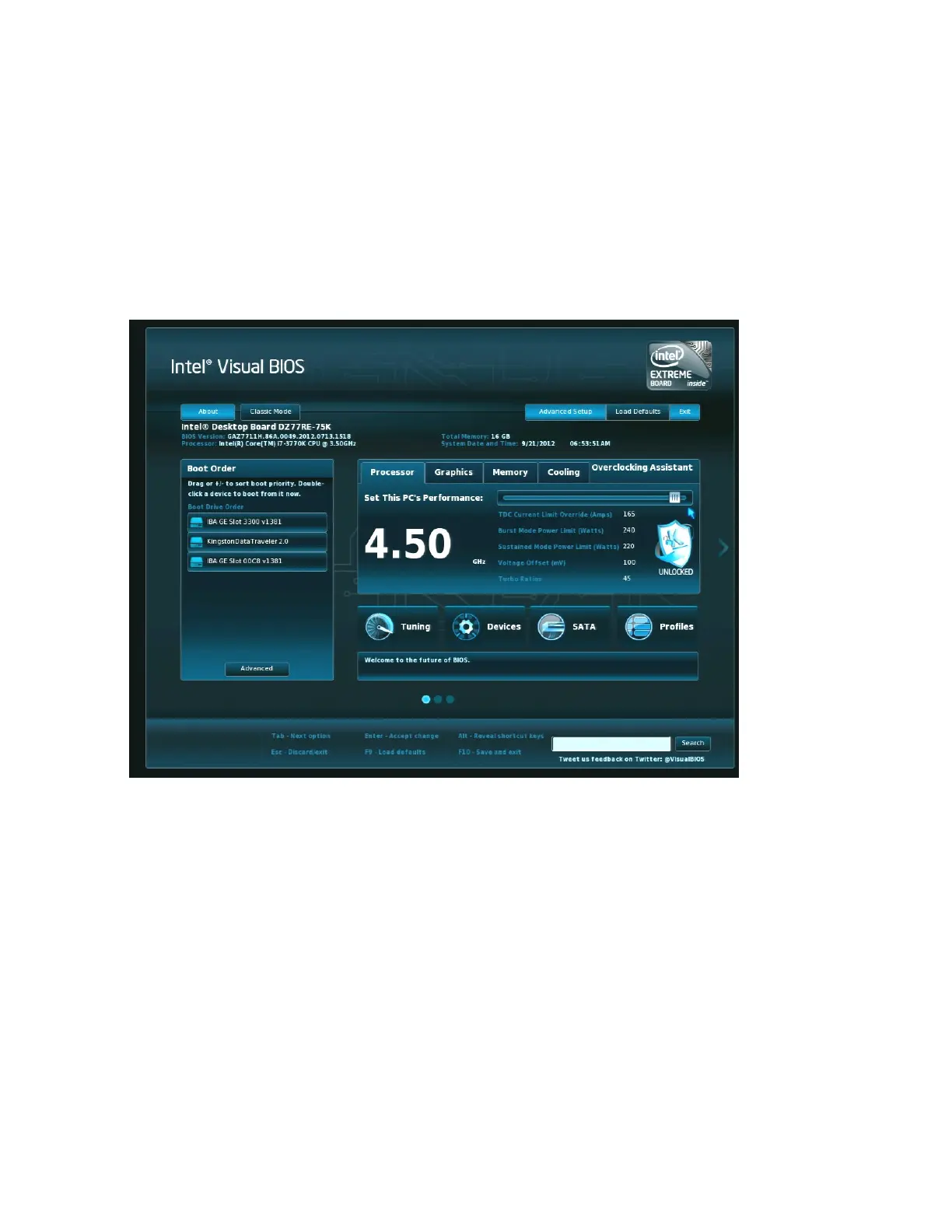

The Overclocking Assistant can be found on the home screen of the Visual BIOS setup.
Note the ‘Unlocked’ icon which shows that an Intel K-SKU processor is installed and
over clocking is unlocked and available. Non Intel K-SKU processors are locked and
can not be overclocked.

Intel DZ77GA-70K Specifications

General

Form Factor	ATX
Chipset	Intel Z77
Socket	LGA 1155
Memory Slots	4
Max Memory	32 GB
SATA 6Gb/s Ports	4
SATA 3Gb/s Ports	4
USB 3.0 Ports	4
USB 2.0 Ports	8
CrossFire Support	Yes
SLI Support	Yes
Memory Speed	DDR3 1600/1333/1066
PCI Express x16 Slots	2
PCI Express x1 Slots	2
LAN	Intel 82579V Gigabit Ethernet
Audio	7.1 Channel High Definition Audio
RAID Support	RAID 0, 1, 5, 10
PCI Slots	2
