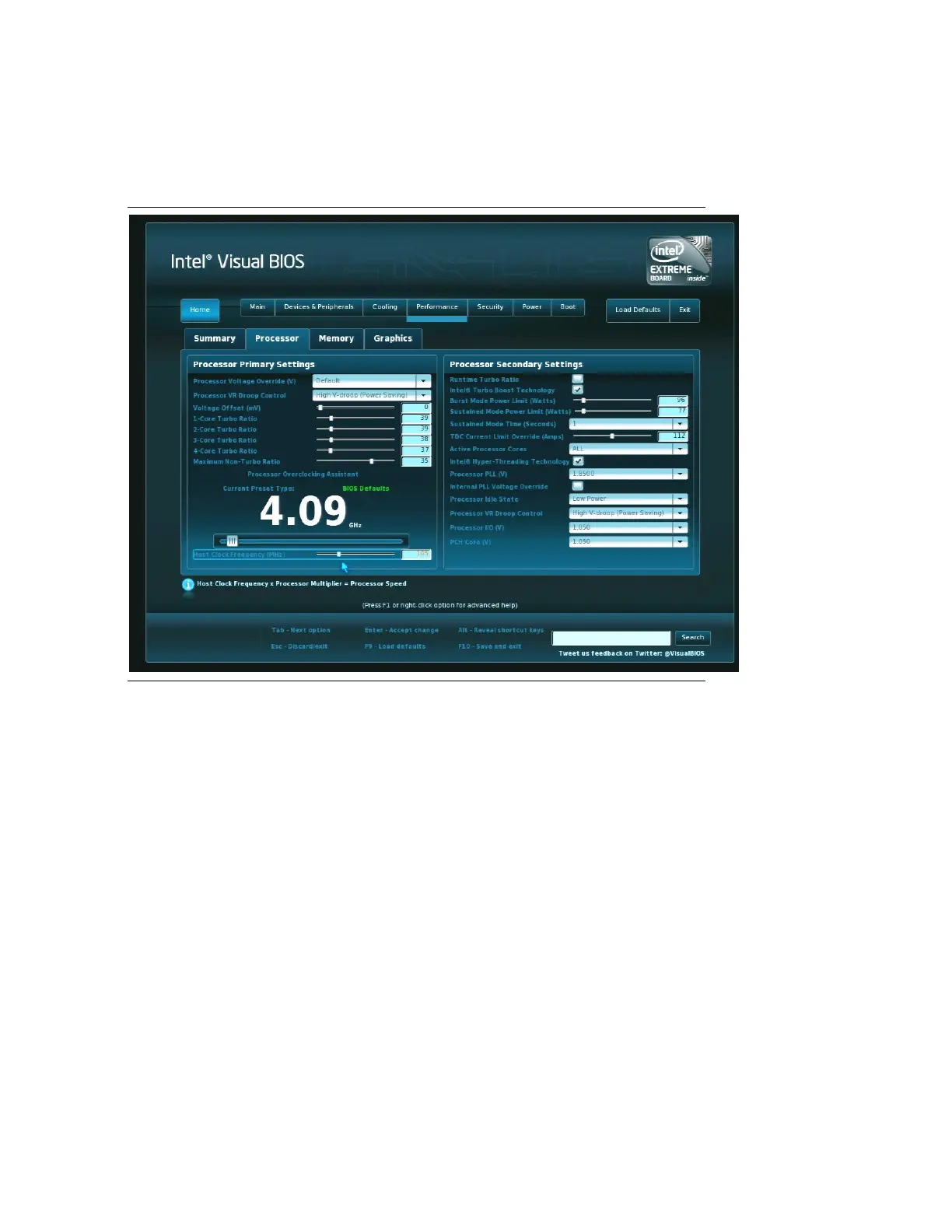

System (host) clock frequency changes were made using the BIOS screen shown in
Figure 3.6. The frequency display shows the results of increasing the system clock
setting from 100 MHz to 105 MHz with the resulting processor speed increase from
3.90 GHz to 4.09 GHz (39x105 MHz = 4.09 GHz).
Figure 3.6. BIOS Screen Showing System Clock Frequency
Increased to 105 MHz

NOTE
The multipliers for the processor were left unchanged from the default of 39 and only
the host clock frequency was increased. Since the speeds of the other board
subsystems are derived from the host clock, the memory speed will be increased as
well. This increase may require memory setting adjustments to restore stability.
Consult Section 3.6.5 for more information on memory settings.

Intel DZ77GA-70K Specifications

General

Form Factor	ATX
Chipset	Intel Z77
Socket	LGA 1155
Memory Slots	4
Max Memory	32 GB
SATA 6Gb/s Ports	4
SATA 3Gb/s Ports	4
USB 3.0 Ports	4
USB 2.0 Ports	8
CrossFire Support	Yes
SLI Support	Yes
Memory Speed	DDR3 1600/1333/1066
PCI Express x16 Slots	2
PCI Express x1 Slots	2
LAN	Intel 82579V Gigabit Ethernet
Audio	7.1 Channel High Definition Audio
RAID Support	RAID 0, 1, 5, 10
PCI Slots	2
