Intel DZ77GA-70K / DZ77RE-75K Desktop Board Performance Tuning Guide
18
3.6.1 Configure the BIOS for Performance Tuning
It is recommended that non-essential interfaces (such as, onboard audio, USB, LAN,
external SATA, etc.) be disabled when performance tuning to simplify the process.
Once the performance parameters have been optimized, the onboard features can be
re-enabled.
Scroll to “Configuration” > “On-Board Devices” and use the submenus to disable these
features (refer to Figure 3.3).

NOTE
Do not disable the USB port where the keyboard is
connected.

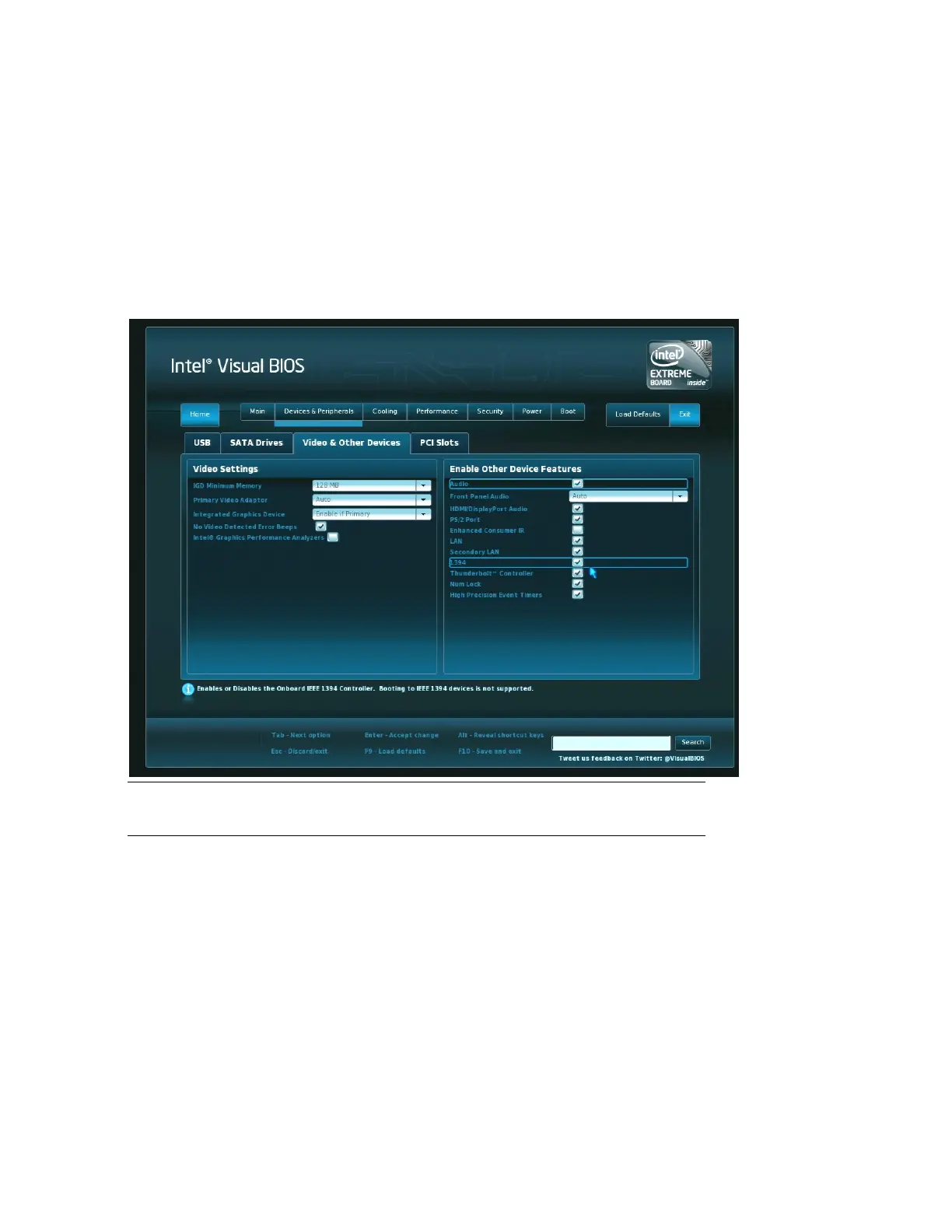

Figure 3.3. System Setup
Performance tuning options are located in the menu section labeled “Performance”.

Intel DZ77GA-70K Specifications

General

Form Factor	ATX
Chipset	Intel Z77
Socket	LGA 1155
Memory Slots	4
Max Memory	32 GB
SATA 6Gb/s Ports	4
SATA 3Gb/s Ports	4
USB 3.0 Ports	4
USB 2.0 Ports	8
CrossFire Support	Yes
SLI Support	Yes
Memory Speed	DDR3 1600/1333/1066
PCI Express x16 Slots	2
PCI Express x1 Slots	2
LAN	Intel 82579V Gigabit Ethernet
Audio	7.1 Channel High Definition Audio
RAID Support	RAID 0, 1, 5, 10
PCI Slots	2
