Intel EMB-H61A - SATA Power Connector (PWR1); FAN Connector (S_FAN1;S_FAN2)

Industrial Motherboard
EMB-H61A
Chapter 2 Quick Installation Guide 2 - 15

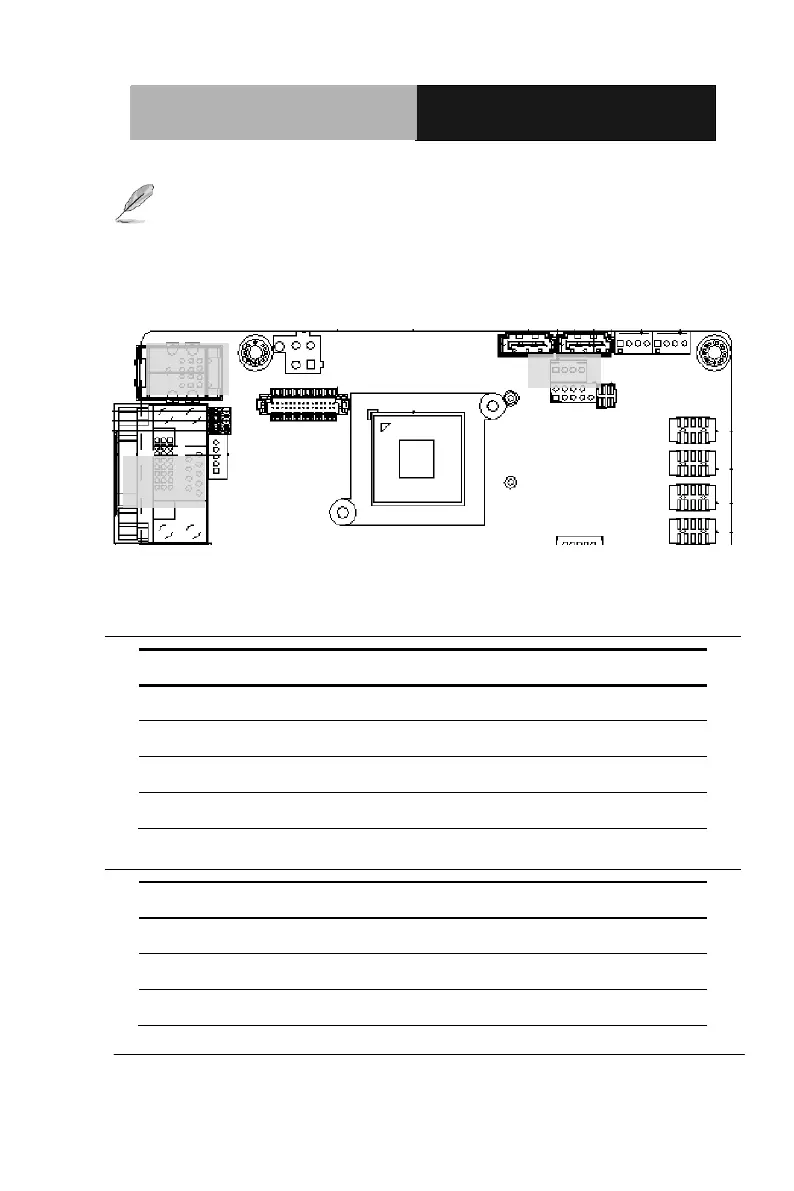

NOTE: LVDS connector Vendor: PINREX; Model: 712-76-30GWR8.
Please refer the drawing below, notice the location of PIN1, PIN2, PIN29 and
PIN30. KB&MS
2.21 SATA Power Connector (PWR1)
Pin
Signal
1
+5V
2
GND
3
GND
4
+12V
2.22 FAN Connector (S_FAN1/S_FAN2)
Pin
Signal
1
PWM
2
SENSE
3
VCC
1
230
SATA
KB&MS
USB
COM
DVI-D
29
