QUICK START GUIDE – Rev. 06 July 2017 QUICK START GUIDE – Rev. 06 July 2017
6
2
2
1
3
5
5
4
4

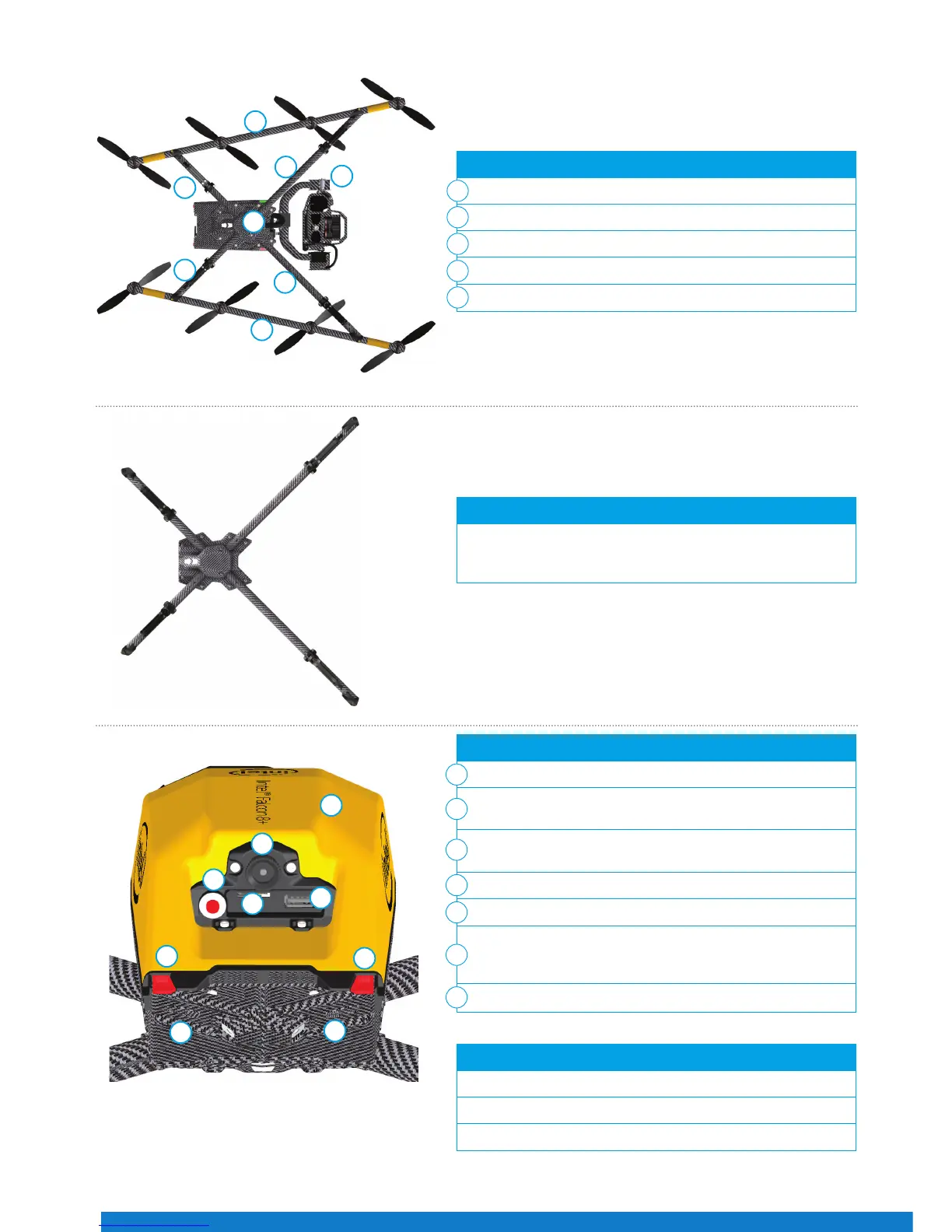

UAV – back view:
Carbon ber chassis
USB stick slot (supports up to 16 GB, le system: FAT32,
allocation unit size: 32 kilobytes)
Hole for camera mount carbon rod and knurled securing nut
(see no. 5 in Figure 11)
Battery compartments with retaining clips (7) for batteries
Power button
Micro SD-card slot (SD-card: speed class 10 minimum,
supports up to 16 GB, le system: FAT32, allocation unit size:
32 kilobytes); for ight logs (black box)
Battery marks
Built inside:
Electronics for ight stabilization and power supply
Diversity data link modules
Video transmitter module
Carbon cross with center cross piece, antenna arrangement:
Data link antennas (2.4 GHz) and video link antennas (5.8
GHz) are integrated into the landing feet. They are diagonally
arranged as shown in Figure 07.
1
2
3
4
UAV with payload – bottom view:
Payload
Motor rails
Center cross piece
Carbon cross
Landing feet
1
2
3
4
5
5
6
7
Figure 07
Figure 08
1
3
5
6
2
7
7
4
4
Video
Video
Data
Data
Figure 06

Other manuals for Intel FALCON 8+

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Intel FALCON 8+ and is the answer not in the manual?

Intel FALCON 8+ Specifications

General IconGeneral
TypeOctocopter
Easy to useYes
Product colorBlack, Yellow
Maximum speed16 m/s
Frequency band2.4 GHz
Number of rotors8 rotors
Maximum flight time26 min
Maximum weight capacity2.8 kg
Maximum operating distance1000 m
Maximum pitch angular velocity50 °/sec
Operating temperature (T-T)-5 - 40 °C
Transmitter power consumption100 mW
Built-in processor-
Moving control functionsBackward, Forward, Turn left, Turn right, Upward
Weight and Dimensions IconWeight and Dimensions
Depth817 mm
Width768 mm
Height160 mm
Weight1200 g
Rotor diameter203.2 mm
