Intel Desktop Board DH61DL Product Guide
36
Installing and Removing System Memory
NOTE
To be fully compliant with all applicable Intel SDRAM memory specifications, the board
requires DIMMs that support the Serial Presence Detect (SPD) data structure.
The desktop board has two 240-pin DDR3 DIMM sockets providing Channel A and
Channel B. For dual-channel performance, install a matched pair of DIMMs equal in
speed and size (see Figure 13).

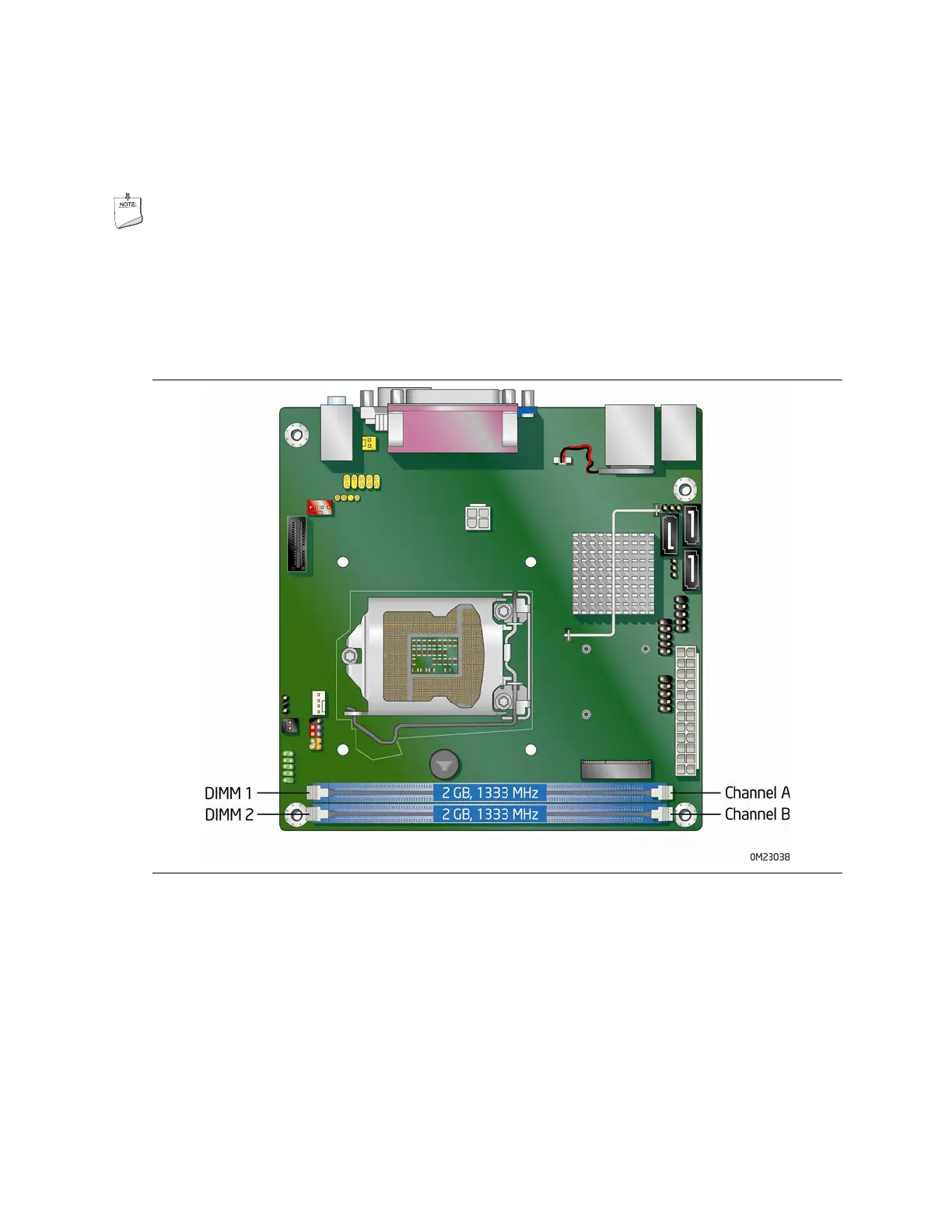

Figure 13. Dual Channel Memory Configuration Example
