Intel G41 User Manual

7
Model
MI5-G41SGMD3-LF
provides two 240-pin
DDR3
DUAL INLINE MEMORY
MODULES (DIMM) socket for DDR3 memory expansion to maximum memory
volume of 8GB DDR3 SDRAM.
Valid Memory Configuration for MI5-G41SGMD3-LF
Bank 240-Pin DIMM PCS Total Memory
Bank 0, 1 (DIMM1) DDR3 800/ DDR3 1066 X1 4GB
Bank 2, 3 (DIMM2) DDR3 800/ DDR3 1066 X1 4GB
Total Memory (Max.4GB)
2 8GB
Recommend DIMM Module Combination
1. One DIMM Module ----Plug in DIMM1
2. Two DIMM Modules---Plug in DIMM1 and DIMM2 for Dual channel function
For Dual channel Limited!
1. Dual channel function only supports when 2 DIMM Modules plug in either both DIMM1
& DIMM2
2. DIMM1 & DIMM2 must be the same type, same size, and same frequency for dual
channel function.

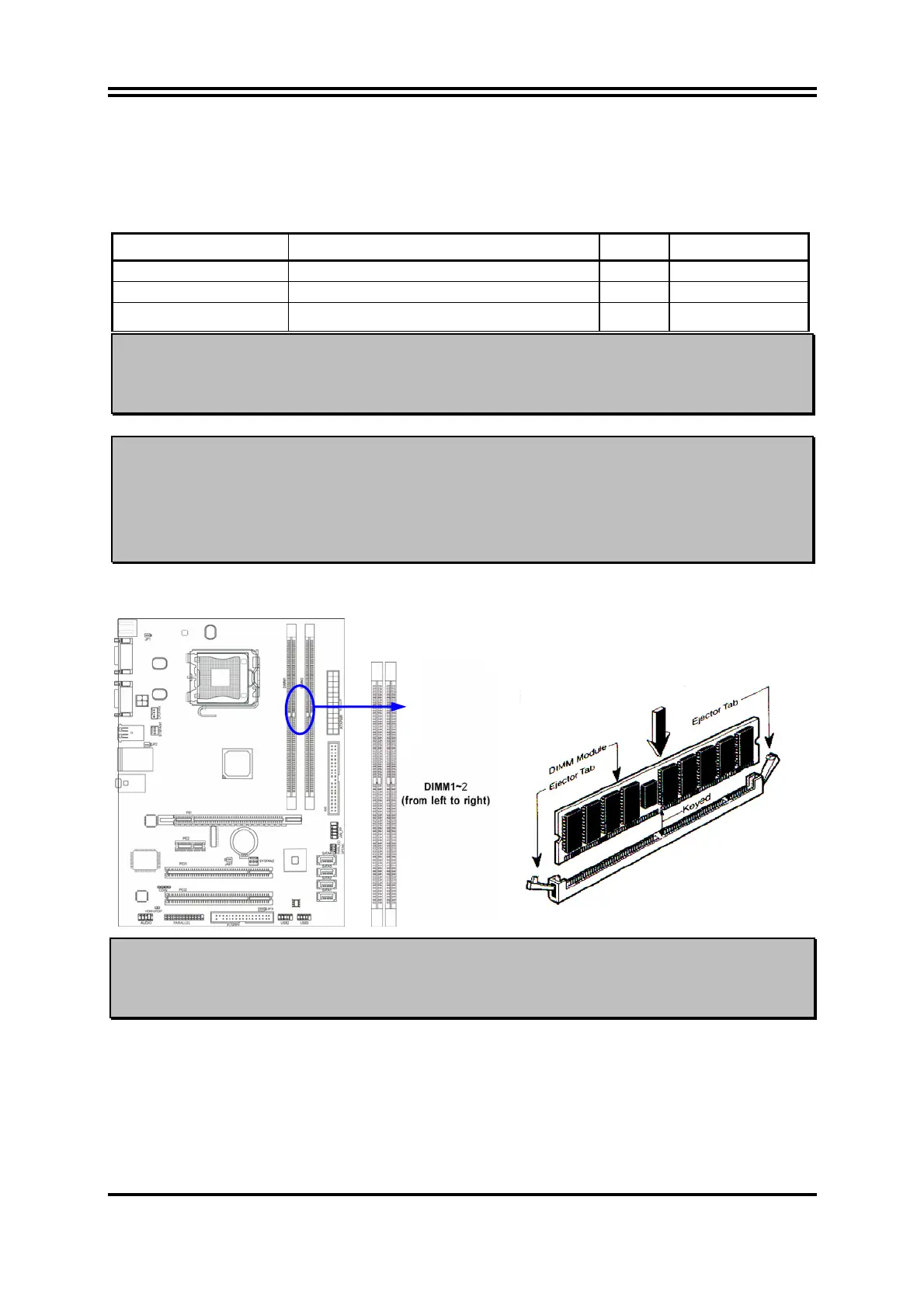

Install memory modules to your motherboard is not difficult, you can refer to figure
below to see how to install a memory module.
NOTE!
When you install DIMM module fully into the DIMM socket the eject
tab should be locked into the DIMM module very firmly and fit into its
indention on both sides.

Intel G41 Specifications

General

Socket	LGA 775
Maximum Memory	8 GB
Northbridge	Intel G41
Southbridge	Intel ICH7
RAID Support	No
Chipset	Intel G41
Memory Type	DDR2/DDR3
Graphics	Intel GMA X4500
Storage Interface	SATA 3Gb/s
Supported CPU	Intel Core 2 Quad, Core 2 Duo, Pentium, Celeron
Memory Slots	2
Audio	Varies by motherboard manufacturer
LAN	Varies by motherboard manufacturer
FSB	1333 MHz
Graphics Output	VGA
PCI Express Version	PCIe 1.1
USB Ports	Varies by motherboard manufacturer
