14

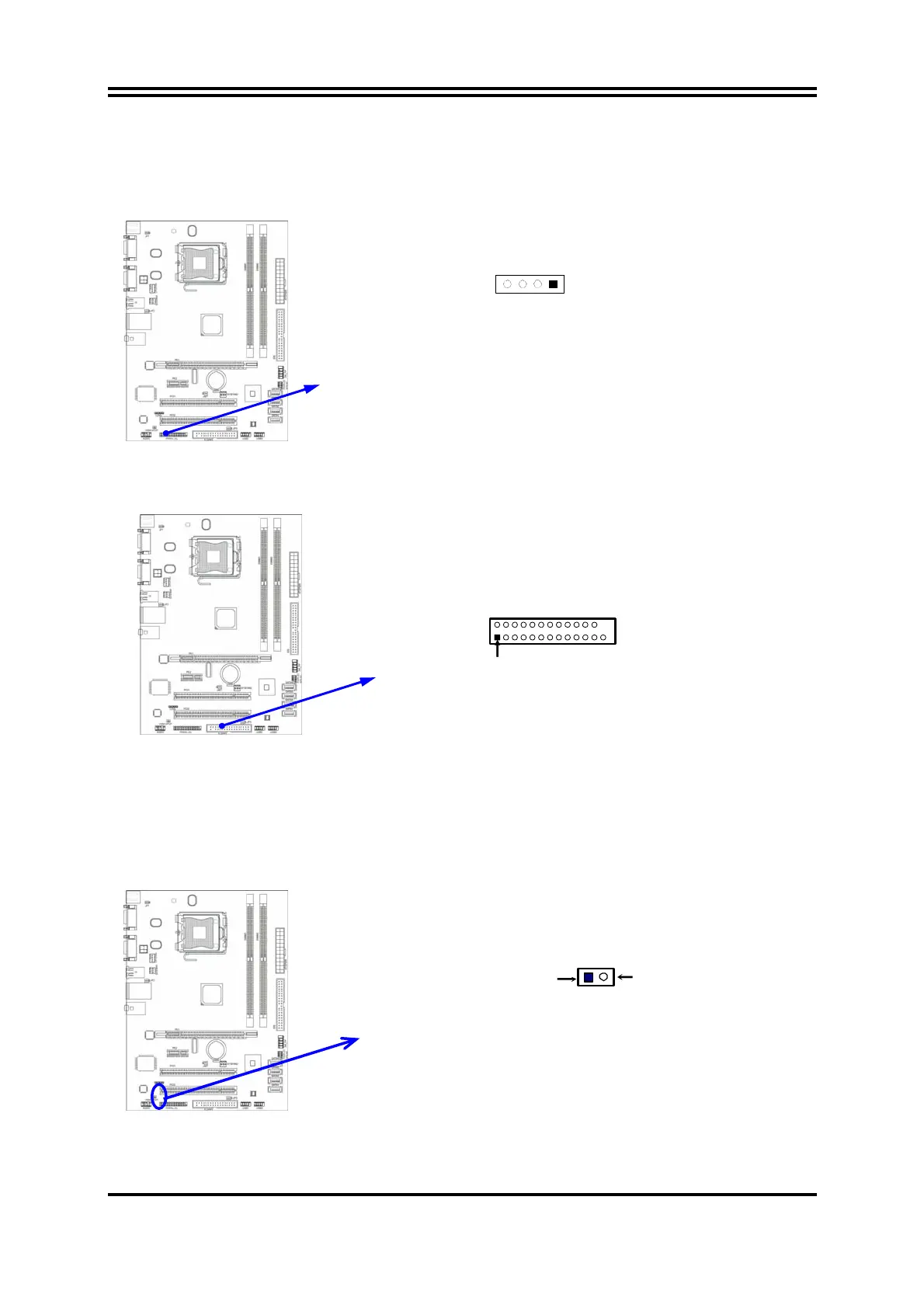

(9) CD Audio-In Headers (4-pin): CDIN
CDIN are the connectors for CD-Audio Input signal. Please connect it to
CD-ROM CD-Audio output connector.
(10) Parallel Port header (25-pin): PARALLEL
The On-board Parallel Port can be disabled through the BIOS SETUP. .
(11) SPDIF Out header: SPDIF Out
The SPDIF output is capable of providing digital audio to external speakers or
compressed AC3 data to an external Dolby digital decoder. Use this feature only
when your stereo system has digital input function.
CD Audio-In Headers
CDIN
4 1
Pin 1
PARALLEL Connector
HDMI_SPDIF Header
1
GND
2
HDMI_SPDIF_OUT
To Next Page
