Intel G41 User Manual

5

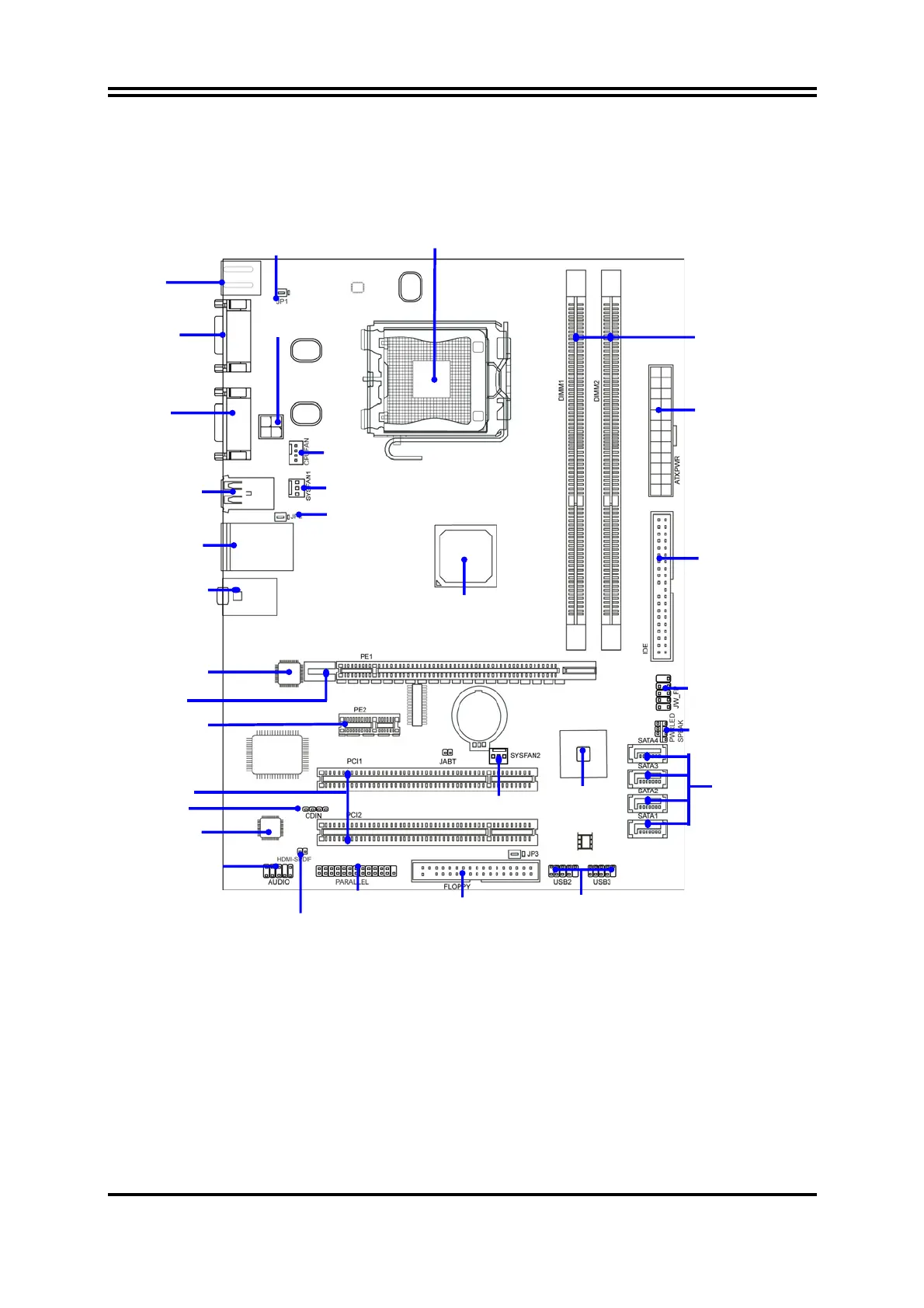

Diagram is for MI5-G41SGMD3-LF
ATX 12V Power
Connector
Front Panel
Header
ATX Power
Connector
CPU Socket mPGA775
Intel 82801GB
ICH Chipset
Power Led &
Speaker Header
DDR3
DIMMx2
ALC662
HD Audio Codec
32-bit PCI Slot
COM
K
B／MS Power ON
Jumper (JP1)
USB Port
SYSFAN1
Front Panel Audio
Megabit LAN Chip
IDE Connector
Serial-ATA2
Connector
(SATA1, 2, 3, 4)
CPU FAN
PCI Express x1
VGA
RJ45 Ove
r
USB Port
PCI Express x16
CD Audio In
Floppy Connector
Intel G41Express
Chipset
SYS FAN2
Parallel Header
USB Power ON Jumper (JP2)
PS2 KB/Mouse
Port
USB Header
HDMI-SPDIF Header
6-CH
Audio Connector

Intel G41 Specifications

General

Socket	LGA 775
Maximum Memory	8 GB
Northbridge	Intel G41
Southbridge	Intel ICH7
RAID Support	No
Chipset	Intel G41
Memory Type	DDR2/DDR3
Graphics	Intel GMA X4500
Storage Interface	SATA 3Gb/s
Supported CPU	Intel Core 2 Quad, Core 2 Duo, Pentium, Celeron
Memory Slots	2
Audio	Varies by motherboard manufacturer
LAN	Varies by motherboard manufacturer
FSB	1333 MHz
Graphics Output	VGA
PCI Express Version	PCIe 1.1
USB Ports	Varies by motherboard manufacturer
