Intel Galileo Hardware Guide

Hardware 14
Hardware

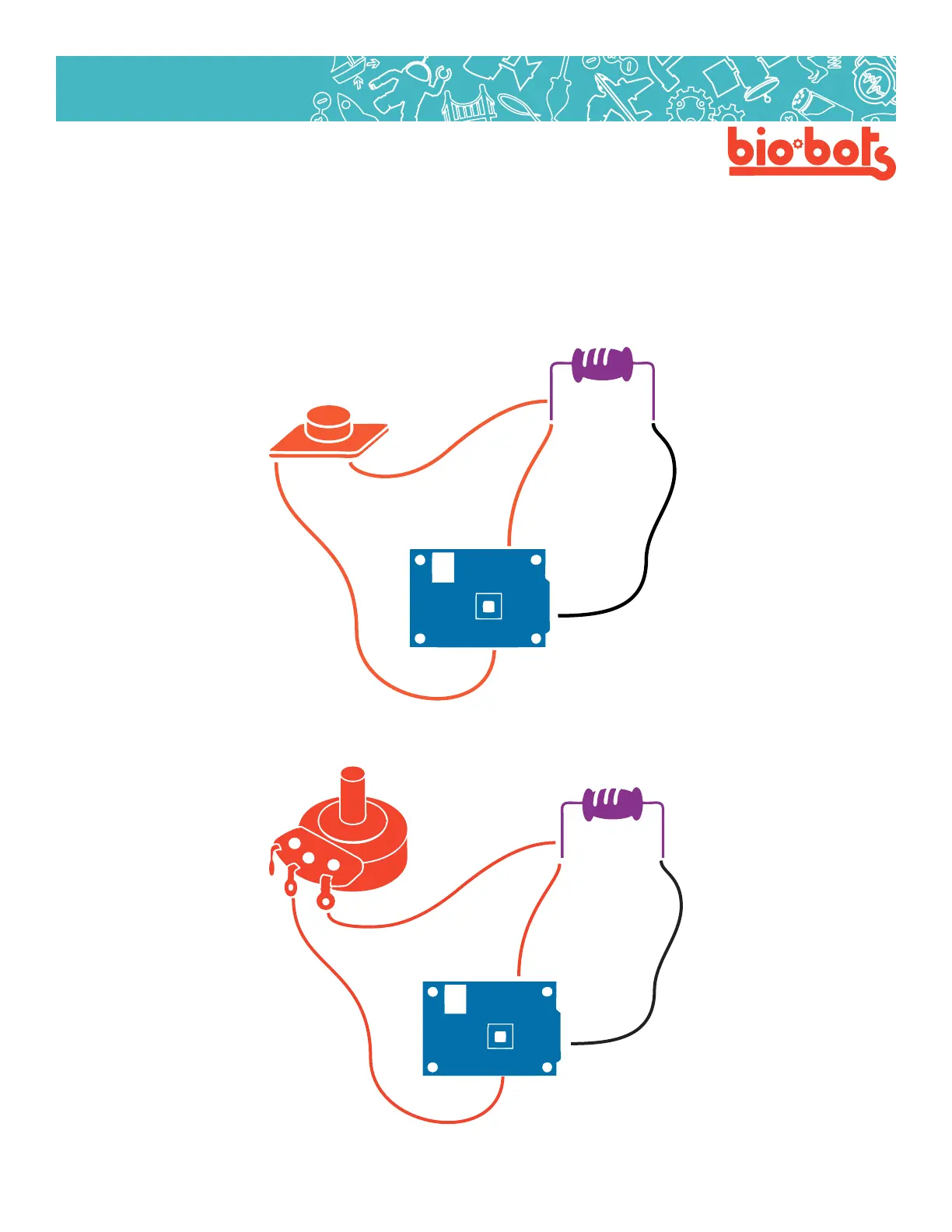

3.3: Ways to Wire Up Inputs
Buttons A button or switch can be made by simply using any two pieces of metal and touching them
together, but they can be made in many shapes and sizes. The button can be placed between 5V and an
analog input pin (A0 for example). For a more reliable button, it can be connected like in the gure below.
Try pressing the button. Does it do anything? Try dierent combinations of the button to see how it works.
Lesson 3, Figure 2
Potentiometers normally have the same layout, with three places to connect wires (Lesson 3, Ficure 3).
5V
GND
Button
Lesson 3, Figure 3
A0
5V
GND
Potentiometer
Resistor
Resistor
A0

Intel Galileo Specifications

General

Product family	Intel Galileo
Product series	Intel Galileo board
Processor cache	16 KB
Processor cores	1
Processor model	Intel Quark SoC X1000
64-bit computing	No
Processor socket	Quark 393pin FCPGA
Product codename	-
Processor frequency	400 MHz
Microcontroller model	Intel Quark
Processor lithography	32 nm
Processor manufacturer	Intel
Thermal Design Power (TDP)	12.5 W
Memory bandwidth supported by processor (max)	2.5 GB/s
Memory bus	32 bit
Flash memory	8 MB
Memory channels	Single-channel
Flash memory type	Norwegian
Memory clock speed	800 MHz
Internal memory type	DDR3
Number of DIMM slots	0
Compatible memory cards	MicroSD (TransFlash), MicroSDHC
Maximum internal memory	0.256 GB
Maximum memory card size	32 GB
SRAM (Static Random Access Memory)	512 KB
EEPROM (Electrically Erasable Programmable Read-Only Memory)	8 KB
USB version	2.0
Ethernet LAN	Yes
USB ports quantity	3
Ethernet interface type	Fast Ethernet
ARK ID	78919
Status	Discontinued
Launch date	Q4'13
Package size	15 x 15 mm
FSBs supported	NA
Processor included	Intel® Quark™ SoC X1000 (16K Cache, 400 MHz)
Supported memory types	DDR3-SDRAM
Power over Ethernet (PoE) voltage	12 V
Export Control Classification Number (ECCN)	4A994
PCI Support	PCI Express
PCI Express interface data lanes	x1
Form factor	Arduino
Market segment	Desktop
DC input voltage	5 V
Intel Small Business Advantage (SBA) version	0.00
Last change	63903513
Processor ID	79084
Product type	11
Harmonized System (HS) code	8471500150

Weight and Dimensions

Width	- mm
