Intel H61 Express

15

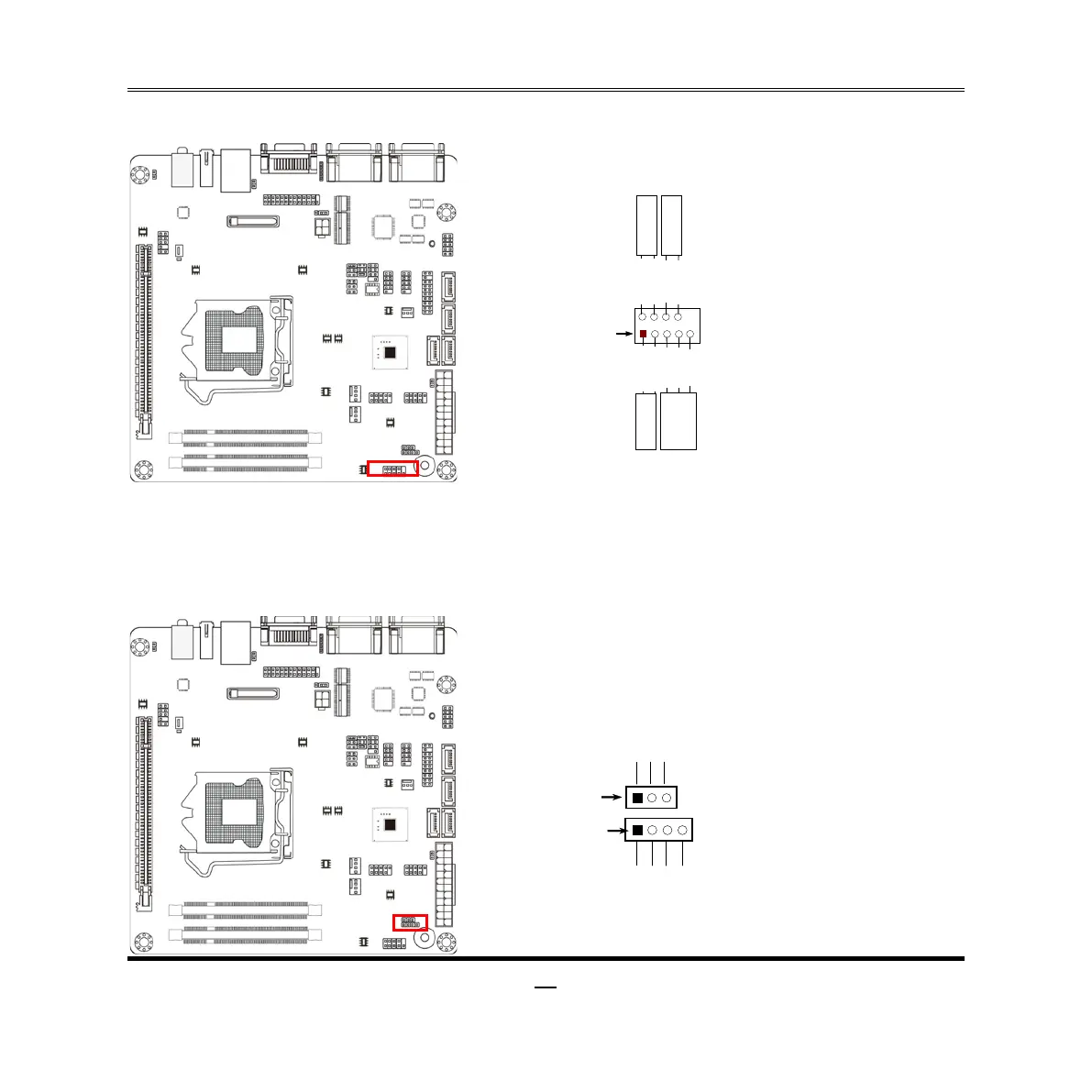

(6) JW-FP(9-pin): Front Panel Header
System Case Connections
HDLED
RESET
HDDLED+
RESET-
PWRLED+
PWR LED
PWRBTN
PWRBTN+
PWRLED-
HDDLED-
RESET+
NC
PWRBTN-
JW_FP
Pin 1
2
(7) PWRLED (3-pin): Power LED Header
The Power LED is light on while the system power is on. Connect the Power LED
from the system case to this pin.
(8) SPEAK (4-pin): Speaker Header
This 4-pin header connects to the case-mounted speaker. See the figure below.
SPEAK
SPEAK
R-
NC
NC
PWRLED1
PIN1
PIN1
PWRLED+
PWRLED-
PWRLED-
SPEAK
R+
