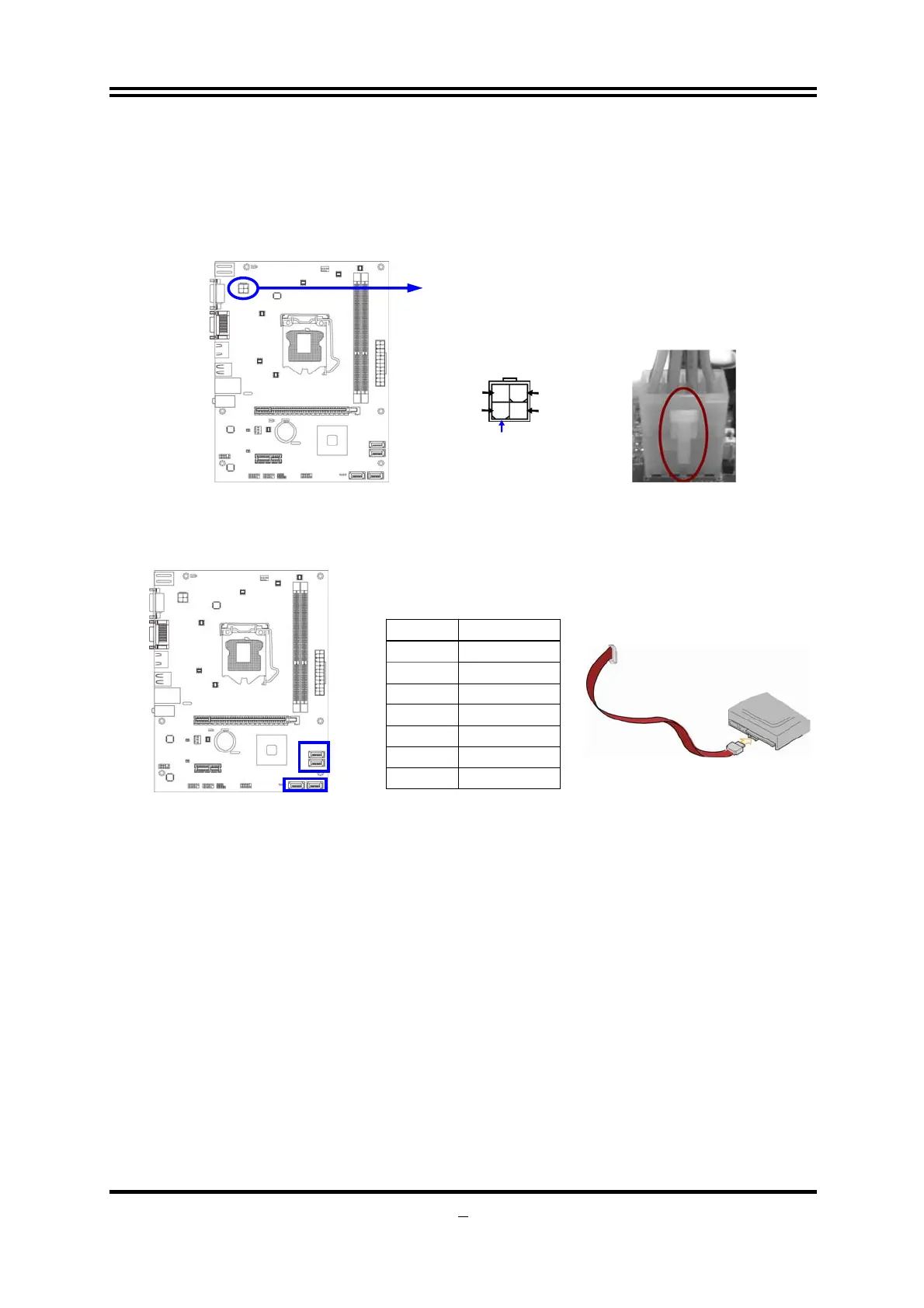

(2) ATX 12V Power Connector (4-pin block) : ATX12V1

This is a new defined 4-pin connector that usually comes with ATX Power

Supply. The ATX Power Supply which fully supports LGA 1155 processor must

including this connector for support extra 12V voltage to maintain system power

consumption. Without this connector might cause system unstable because the

power supply can not provide sufficient current for system.

ATX12V

+12V

Pin1

GND GND

(3) SATAII Port connectors: SATA1，SATA2，SATA3，SATA4

These connectors support the provided Serial ATA hard disk cable to connect the

motherboard and serial ATA2 hard disk drives.

Pin No. Defnition

1 GND

2 TXP

3 TXN

4 GND

5 RXN

6 RXP

7 GND
