Intel H61 Series - Motherboard Layout Diagram

3

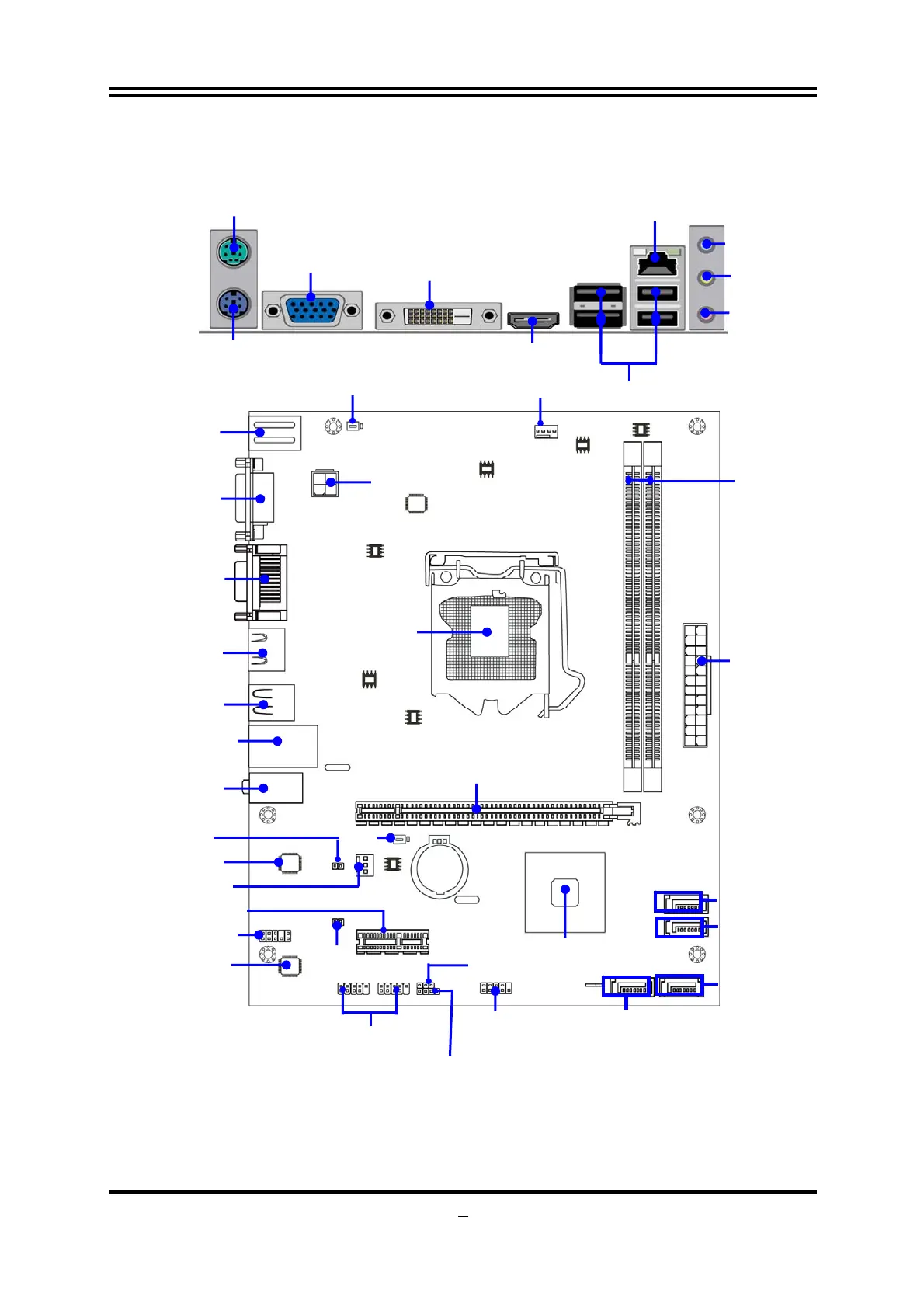

1-3 Layout Diagram
For I61M2 Series Motherboard
*Note: The above diagram is for illustration purpose only. Later board version has
moved front panel audio header to the position near USB header. Please refer to
actual product you purchase.
CPU Socket
ATX Power Connecto
r
CPU FAN1 Header
USB Headers
ATX 12V
Power Connector
RJ-45 LAN Port
Line-IN
MIC-IN
VGA Port
DDRIII Slot x 2
JBAT
Audio Connector
Line-OUT
KB/MS Power on (JP1)
DVI Port
Intel H61 Chipset
PCI Express 2.0x1 slots
VGA Port
PS/2 Mouse port
Over Keyboard Port
USB 2.0 Ports
DVI Port
HDMI port
RJ-45 over
USB 2.0
p
orts
Front Panel Audio Header
6-CH HD Audio Chip
PCI Express2.0 x16 Lane slot
HDMI-SPDIF Header
Power LED Header
HDMI Port
PS/2 Keyboard Port
USB 2.0 ports
Speaker Heade
r
JW-FP1 Header
SATA 1 Connecto
r
SATA 2 Connecto
r
SATA 4 Connecto
r
SATA 3 Connecto
r
Megabit LAN Chip
SYSFAN1 Header
JP2
PS/2 Keyboard Port
