Intel H61 Series User Manual

4

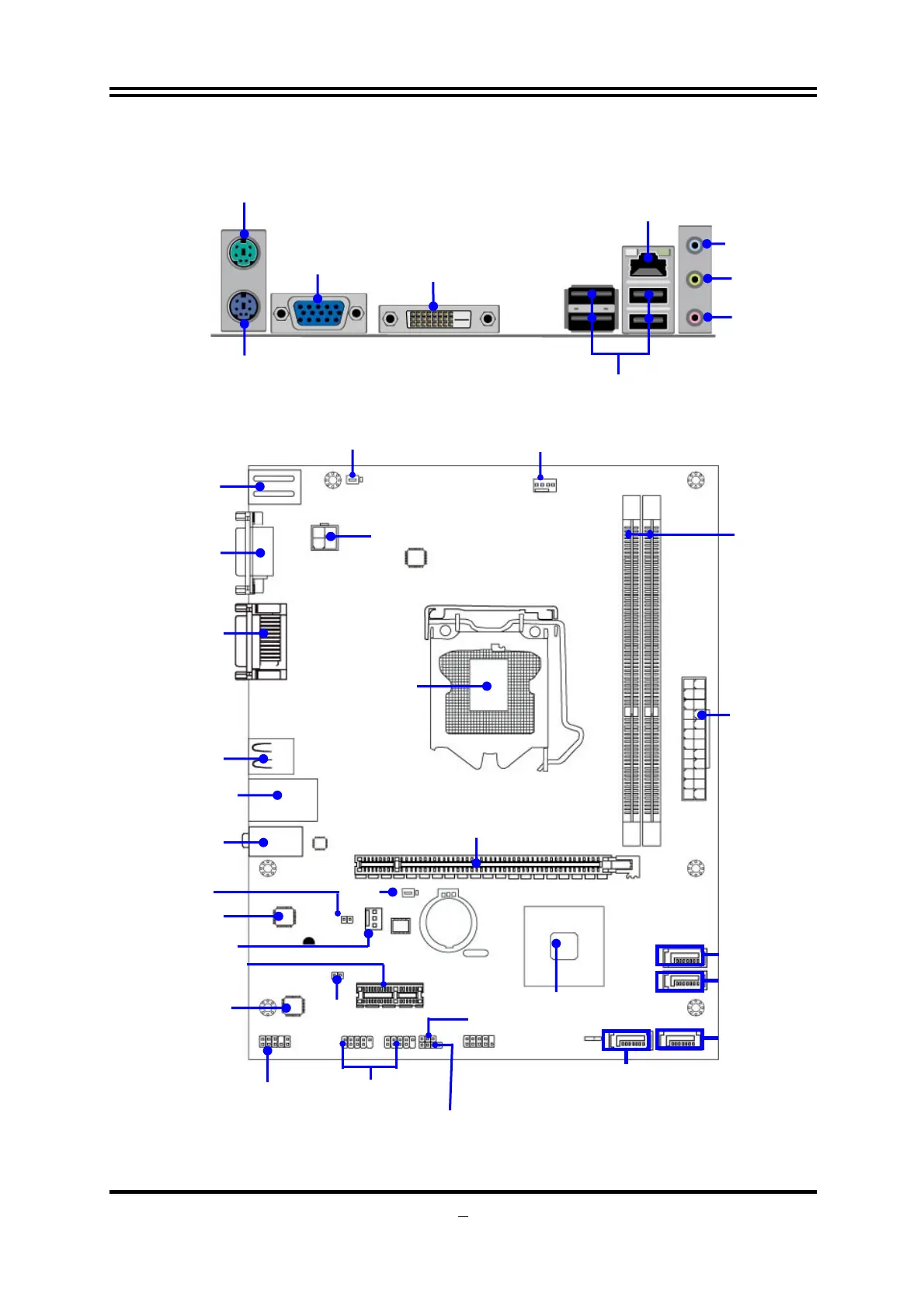

For I61M2-GT Series Motherboard
CPU Socket
ATX Power Connecto
r
CPU FAN1 Header
USB Headers
ATX 12V
Power Connector
RJ-45 LAN Port
Line-IN
MIC-IN
VGA Port
DDRIII Slot x 2
JBAT
Audio Connector
Line-OUT
KB/MS Power on (JP1)
Intel H61 Chipset
PCI Express 2.0x1 slots
VGA Port
PS/2 Mouse port
Over Keyboard Port
USB 2.0 Ports
DVI port
RJ-45 over
USB 2.0
p
orts
Front Panel
Audio Header
6-CH HD Audio Chip
PCI Express2.0 x16 Lane slot
HDMI-SPDIF Header
Power LED Header
DVI Port
PS/2 Keyboard Port
USB 2.0 ports
Speaker Heade
r
JW-FP1 Header
SATA 1 Connecto
r
SATA 2 Connecto
r
SATA 4 Connecto
r
SATA 3 Connecto
r
Megabit LAN Chip
SYSFAN1 Header
JP2
PS/2 Keyboard Port

Intel H61 Series Specifications

General

Chipset	Intel H61
Socket	LGA 1155
Memory Type	DDR3
Max Memory	16 GB
Memory Slots	2
SATA Ports	4 x SATA 3Gb/s
USB Ports	10 x USB 2.0
PCIe 3.0	No
RAID Support	No
PCI Express Slots	1 x PCIe 2.0 x16
Integrated Graphics	Supported (depends on CPU)
Audio	Realtek ALC887
LAN	10/100/1000 Mbps Ethernet
